Century Spring

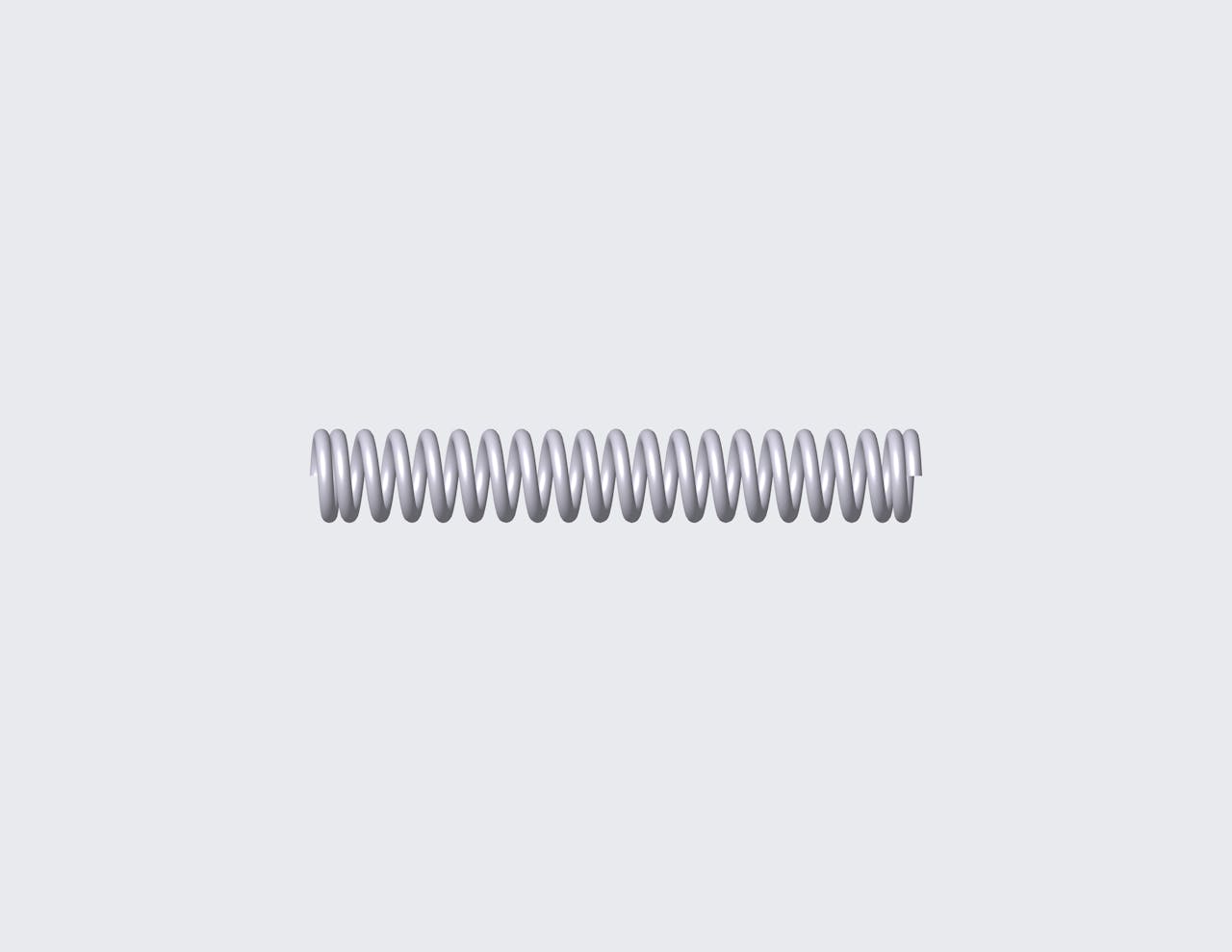

50004SCS - 0.307" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 20.5 coils and closed ends. This spring features an O.D. of 0.047", and an I.D. of 0.031".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50004S
Ends Closed
Finish Passivated
Free Length 0.307 in
Inside Diameter 0.031 in
Material 316 Stainless Steel
Outside Diameter 0.047 in
Rate 4.256 lbs/in
SKU 50004SCS
Solid Length 0.169 in
Suggested Max Deflection 0.075 in
Suggested Max Load 0.319 lbf
Total Coils 20.5
Wire Diameter 0.008 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50004S
Ends Closed
Finish Passivated
Free Length 7.8 mm
Inside Diameter 0.79 mm
Material 316 Stainless Steel
Outside Diameter 1.19 mm
Rate 0.75 N/mm
SKU 50004SCS
Solid Length 4.29 mm
Suggested Max Deflection 1.91 mm
Suggested Max Load 1.42 N
Total Coils 20.5
Wire Diameter 0.2 mm
The compression spring 50004SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 50004S compression spring design exhibits exceptional tensile strength and resilience.

The 50004S design is manufactured with a free length of 0.307", with an outer diameter of 0.047", an inner diameter of 0.031", and a total of 20.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 4.256 lbs/in.

The 50004SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 50004S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
