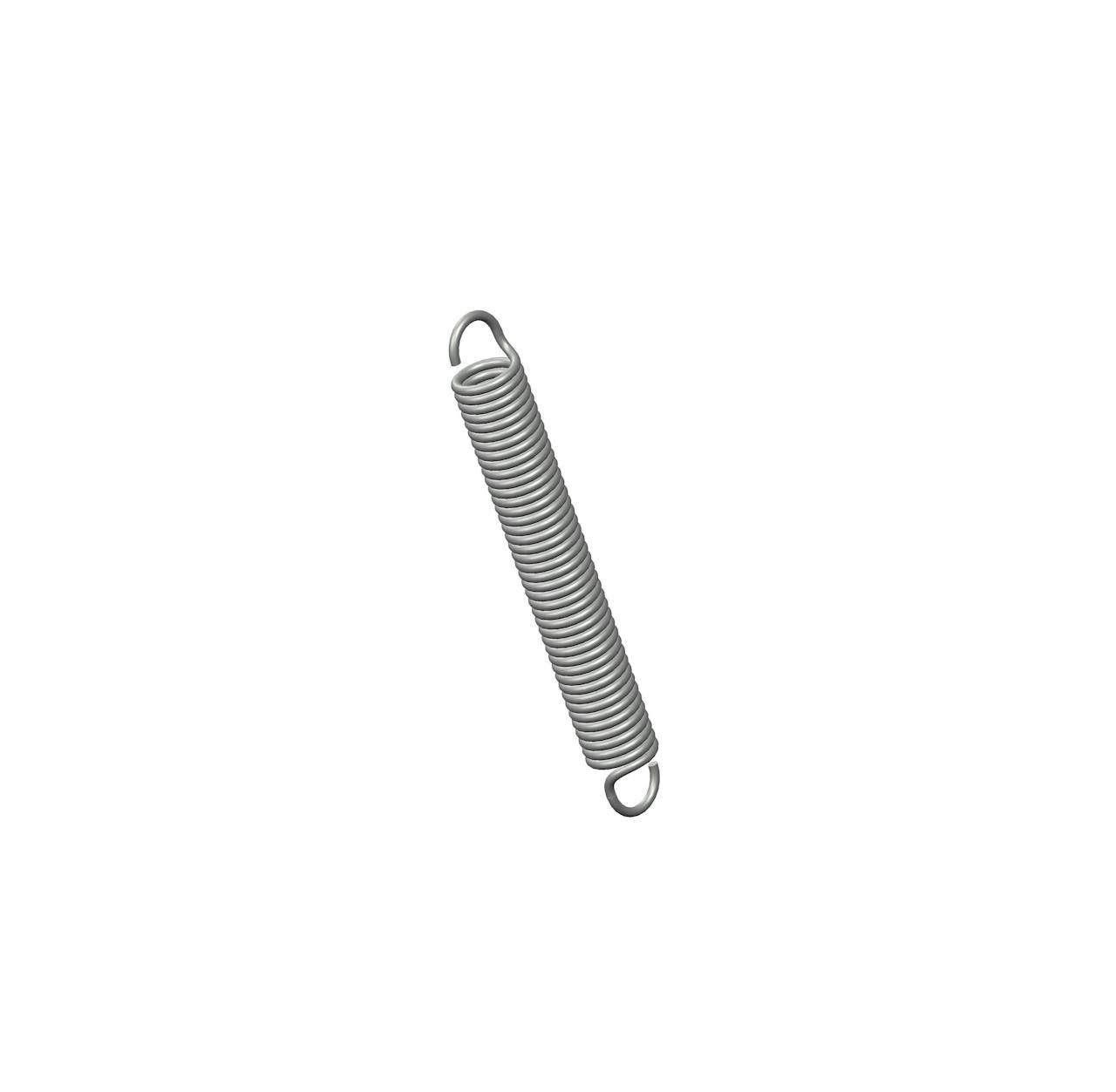

491CS - 1.47 Inch Music Wire Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Regular extension spring in Music Wire. This spring features an O.D. of 0.188 Inch and an initial tension of 0.8 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 491 |
| Ends | Machine Hook |
| Finish | Zinc |
| Initial Tension | 0.8 lb |
| Length | 1.47 in |
| Material | Music Wire |
| Outside Diameter | 0.188 in |
| Part Type | Standard |
| Rate | 4.3 lbs/in |
| SKU | 491CS |
| Sugg Max Deflection | 1.1 in |
| Sugg Max Load | 5.3 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.027 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 491 |
| Ends | Machine Hook |
| Finish | Zinc |
| Initial Tension | 0.36 kg |
| Length | 37.34 mm |
| Material | Music Wire |
| Outside Diameter | 4.78 mm |
| Part Type | Standard |
| Rate | 0.75 N/mm |
| SKU | 491CS |
| Sugg Max Deflection | 27.94 mm |
| Sugg Max Load | 23.57 N |
| Wind Direction | Left |
| Wire Diameter | 0.69 mm |
