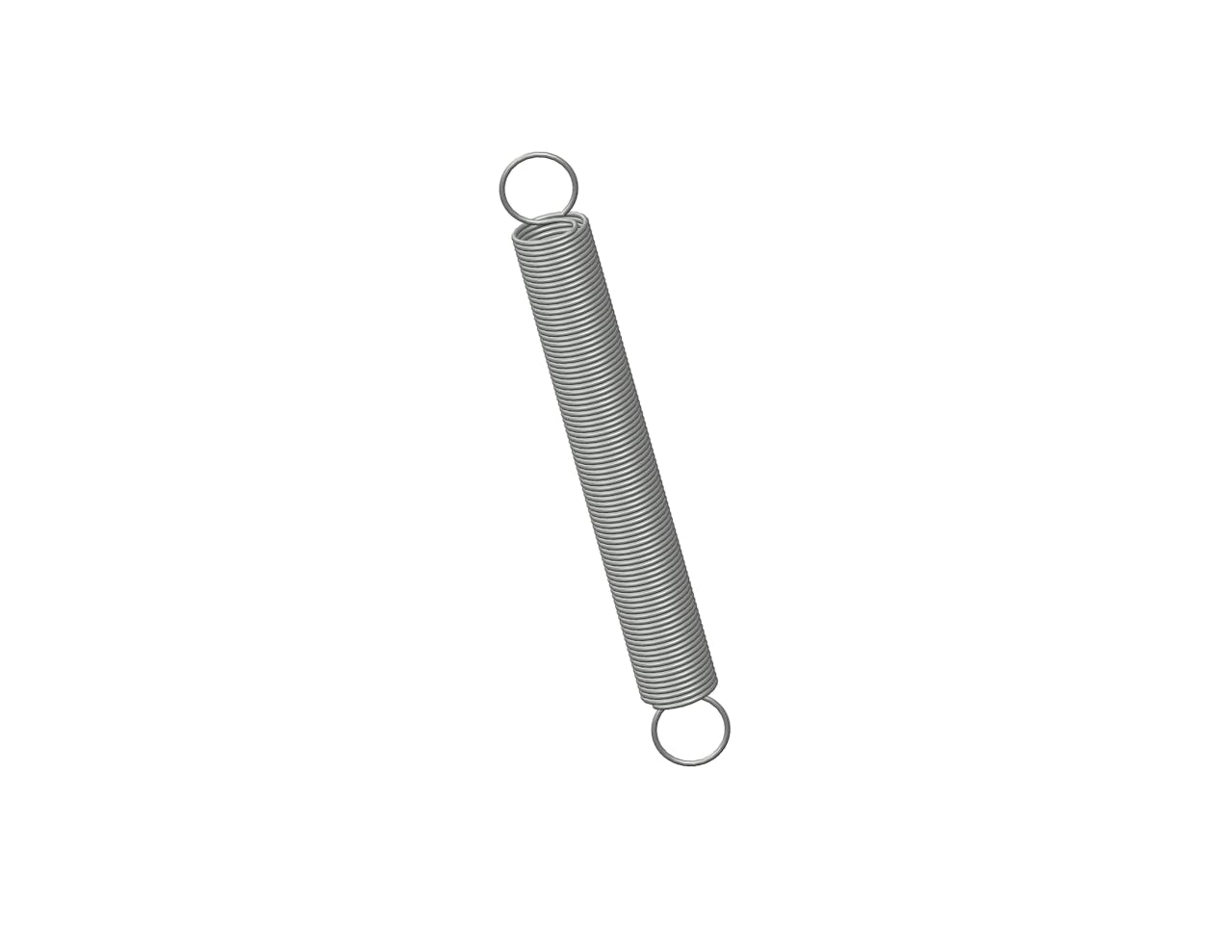

479CS - 3.16 Inch Music Wire Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.375 Inch and an initial tension of 0.2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 479
Ends Full Loop
Finish Zinc
Initial Tension 0.2 lb
Length 3.16 in
Material Music Wire
Outside Diameter 0.375 in
Part Type Standard
Rate 0.24 lbs/in
SKU 479CS
Sugg Max Deflection 11 in
Sugg Max Load 2.9 lbf
Wire Diameter 0.028 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 479
Ends Full Loop
Finish Zinc
Initial Tension 0.09 kg
Length 80.26 mm
Material Music Wire
Outside Diameter 9.53 mm
Part Type Standard
Rate 0.04 N/mm
SKU 479CS
Sugg Max Deflection 279.4 mm
Sugg Max Load 12.9 N
Wire Diameter 0.71 mm
