Century Spring

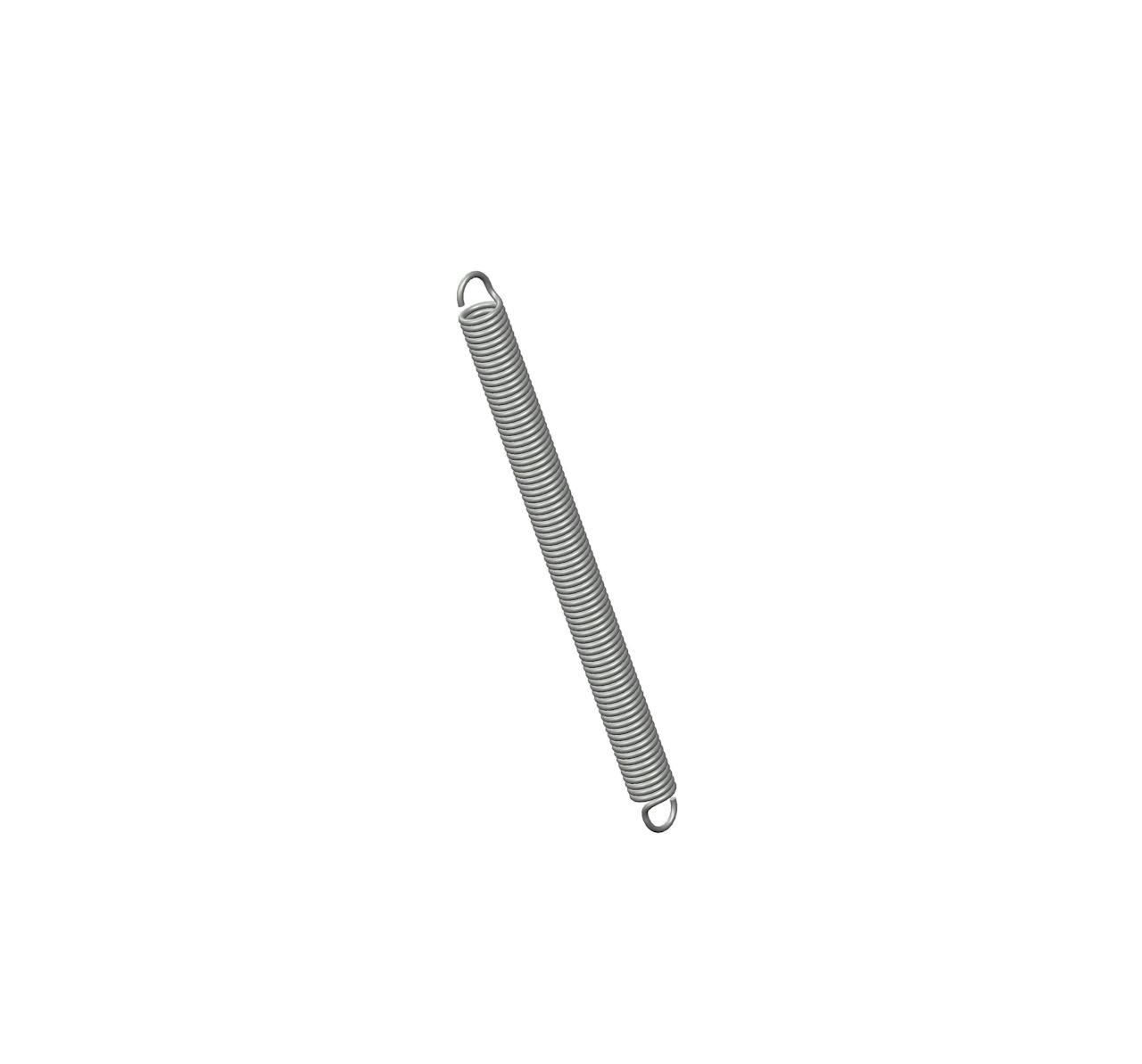

466CS - 1.47 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.109 Inch and an initial tension of 0.3 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 466
Ends Full Loop
Finish Zinc
Initial Tension 0.3 lb
Length 1.47 in
Material Music Wire
Outside Diameter 0.109 in
Part Type Standard
Rate 1.4 lbs/in
SKU 466CS
Sugg Max Deflection 1.2 in
Sugg Max Load 2 lbf
Wind Direction Left
Wire Diameter 0.016 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 466
Ends Full Loop
Finish Zinc
Initial Tension 0.14 kg
Length 37.34 mm
Material Music Wire
Outside Diameter 2.77 mm
Part Type Standard
Rate 0.25 N/mm
SKU 466CS
Sugg Max Deflection 30.48 mm
Sugg Max Load 8.9 N
Wind Direction Left
Wire Diameter 0.41 mm
