Century Spring

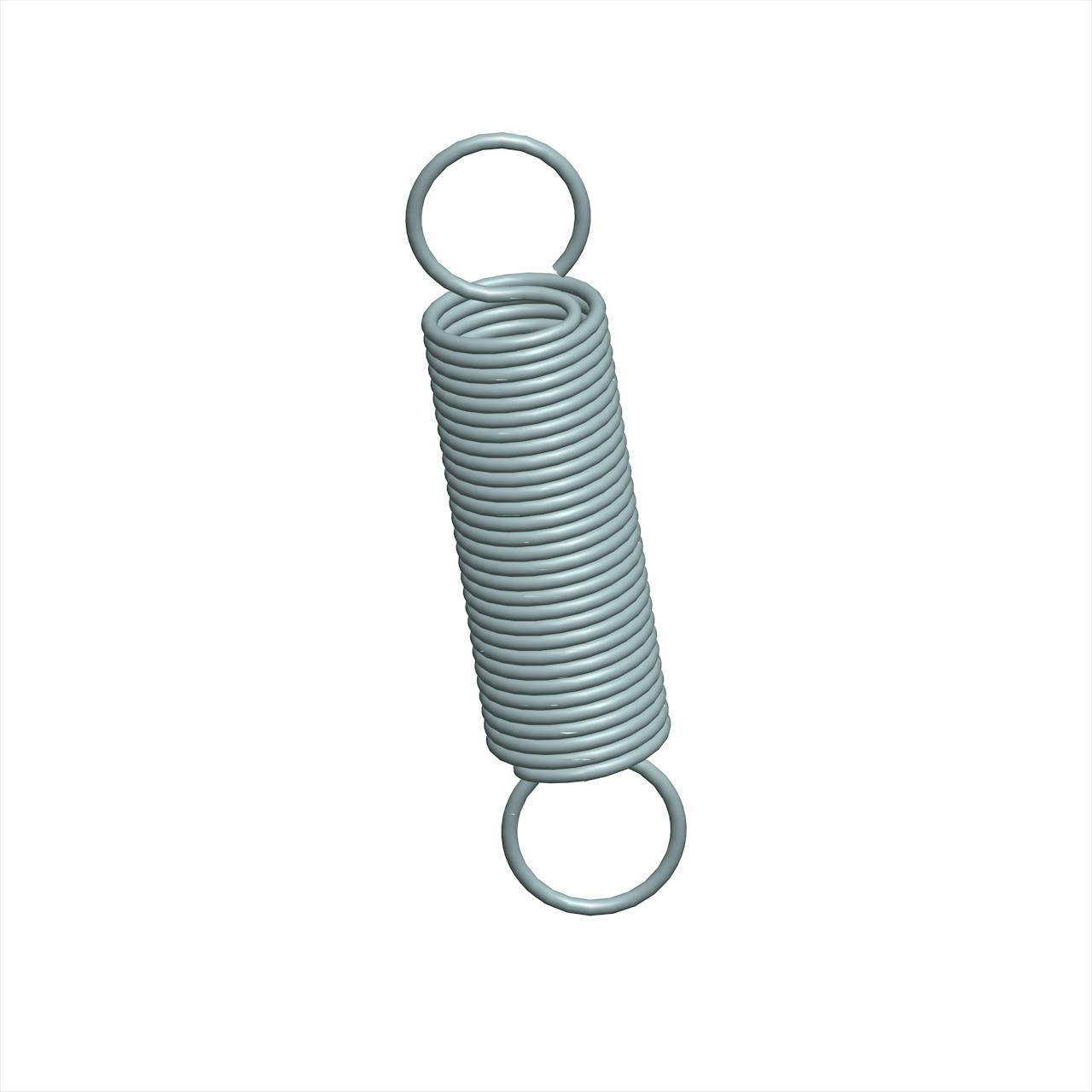

463CS - 0.56 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.125 Inch and an initial tension of 0.07 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 463
Ends Full Loop
Finish Zinc
Initial Tension 0.07 lb
Length 0.56 in
Material Music Wire
Outside Diameter 0.125 in
Part Type Standard
Rate 0.8 lbs/in
SKU 463CS
Sugg Max Deflection 0.98 in
Sugg Max Load 0.76 lbf
Wind Direction Left
Wire Diameter 0.012 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 463
Ends Full Loop
Finish Zinc
Initial Tension 0.03 kg
Length 14.22 mm
Material Music Wire
Outside Diameter 3.18 mm
Part Type Standard
Rate 0.14 N/mm
SKU 463CS
Sugg Max Deflection 24.89 mm
Sugg Max Load 3.38 N
Wind Direction Left
Wire Diameter 0.3 mm
