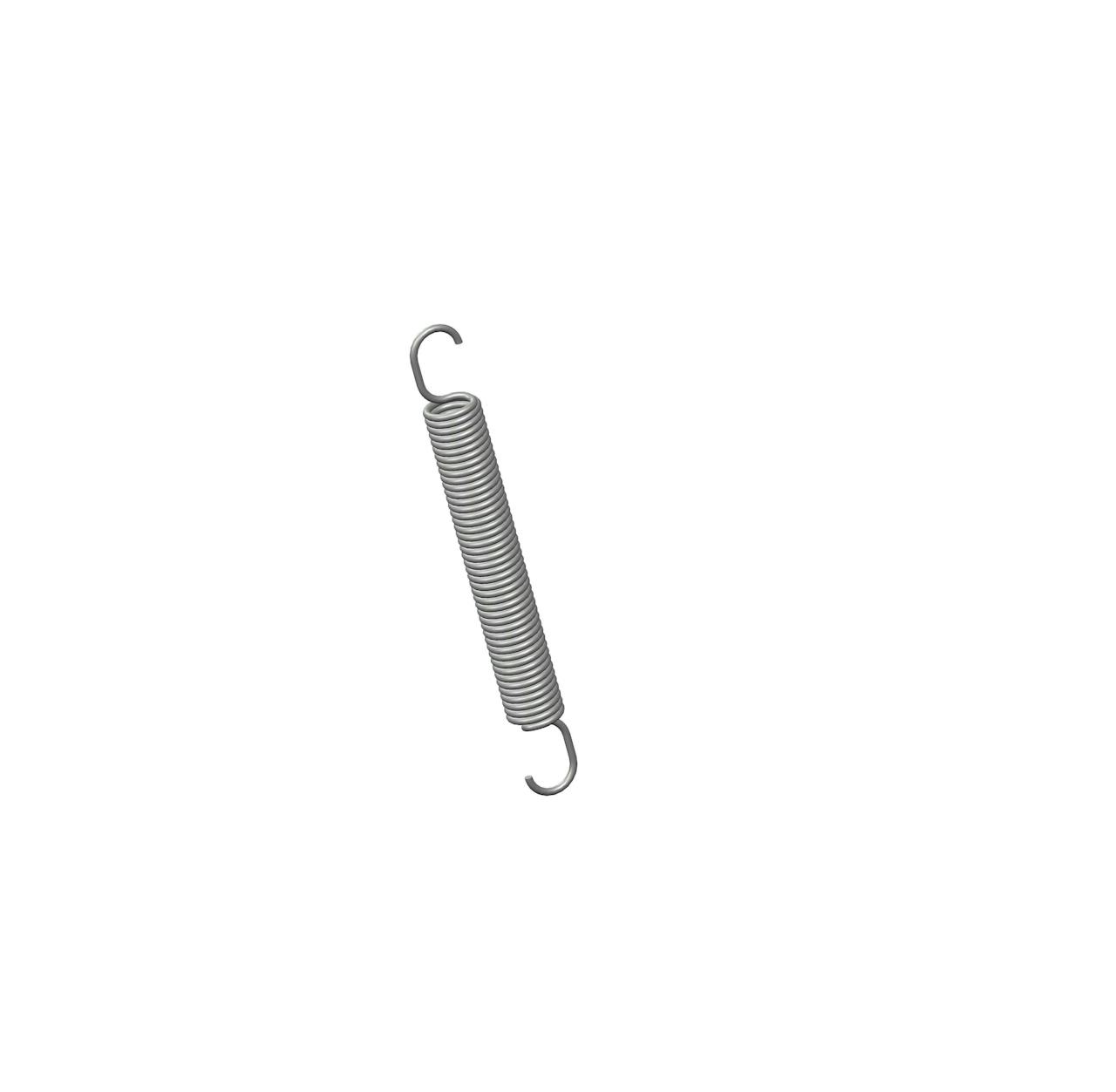

459CS - 1.47 Inch Music Wire Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.188 Inch and an initial tension of 0.6 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 459
Ends Extended Hook
Finish Zinc
Initial Tension 0.6 lb
Length 1.47 in
Material Music Wire
Outside Diameter 0.188 in
Part Type Standard
Rate 2.7 lbs/in
SKU 459CS
Sugg Max Deflection 1.3 in
Sugg Max Load 4.2 lbf
Wire Diameter 0.025 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 459
Ends Extended Hook
Finish Zinc
Initial Tension 0.27 kg
Length 37.34 mm
Material Music Wire
Outside Diameter 4.78 mm
Part Type Standard
Rate 0.47 N/mm
SKU 459CS
Sugg Max Deflection 33.02 mm
Sugg Max Load 18.68 N
Wire Diameter 0.64 mm
