Century Spring

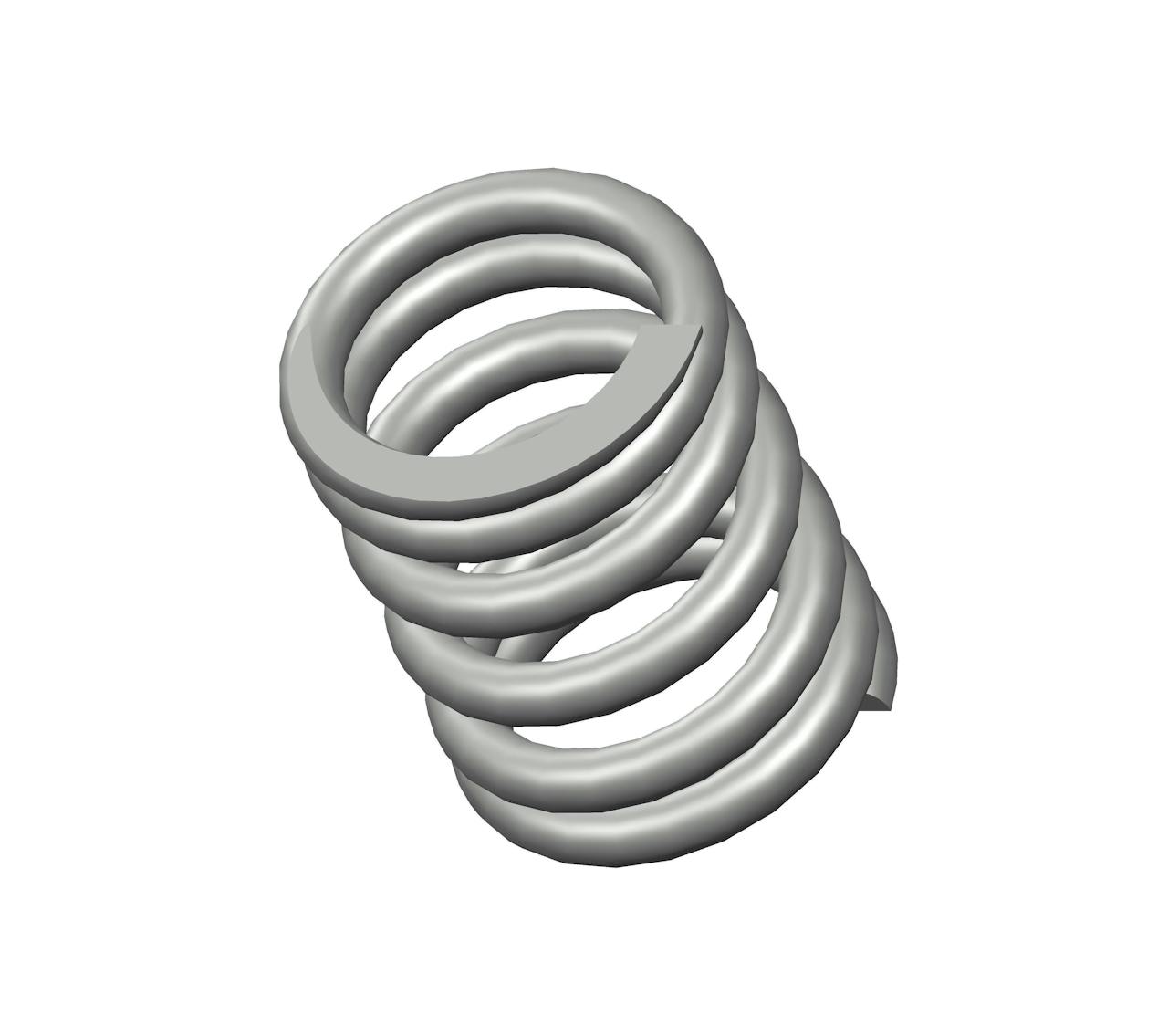

4275CS - 0.59" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 6 coils and closed & ground ends. This spring features an O.D. of 0.437", and an I.D. of 0.312".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 4275
Ends Closed & Ground
Finish Zinc
Free Length 0.59 in
Inside Diameter 0.312 in
Material Spring Steel
Outside Diameter 0.437 in
Part Type Standard
Rate 100 lbs/in
SKU 4275CS
Solid Length 0.37 in
Suggested Max Deflection 0.19 in
Suggested Max Load 19 lbf
Total Coils 6
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 4275
Ends Closed & Ground
Finish Zinc
Free Length 14.99 mm
Inside Diameter 7.92 mm
Material Spring Steel
Outside Diameter 11.1 mm
Part Type Standard
Rate 17.51 N/mm
SKU 4275CS
Solid Length 9.4 mm
Suggested Max Deflection 4.83 mm
Suggested Max Load 84.51 N
Total Coils 6
Wire Diameter 1.59 mm
The 4275CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.0625" diameter spring steel, the 4275 spring design exhibits reliable strength across its 6 active coils, withstanding repeated compression cycles with a maximum load of 19 lbf without succumbing to fatigue.

We manufacture the 4275 design to provide a compression spring that is 0.59" long at rest and provides a consistent rate of 100 lbs/in along its recommended maximum of 0.19" deflection. For best results, your application should fully accommodate the inner (0.312") and outer (0.437") diameters of this spring and be designed for its closed & ground end configuration.
