Century Spring

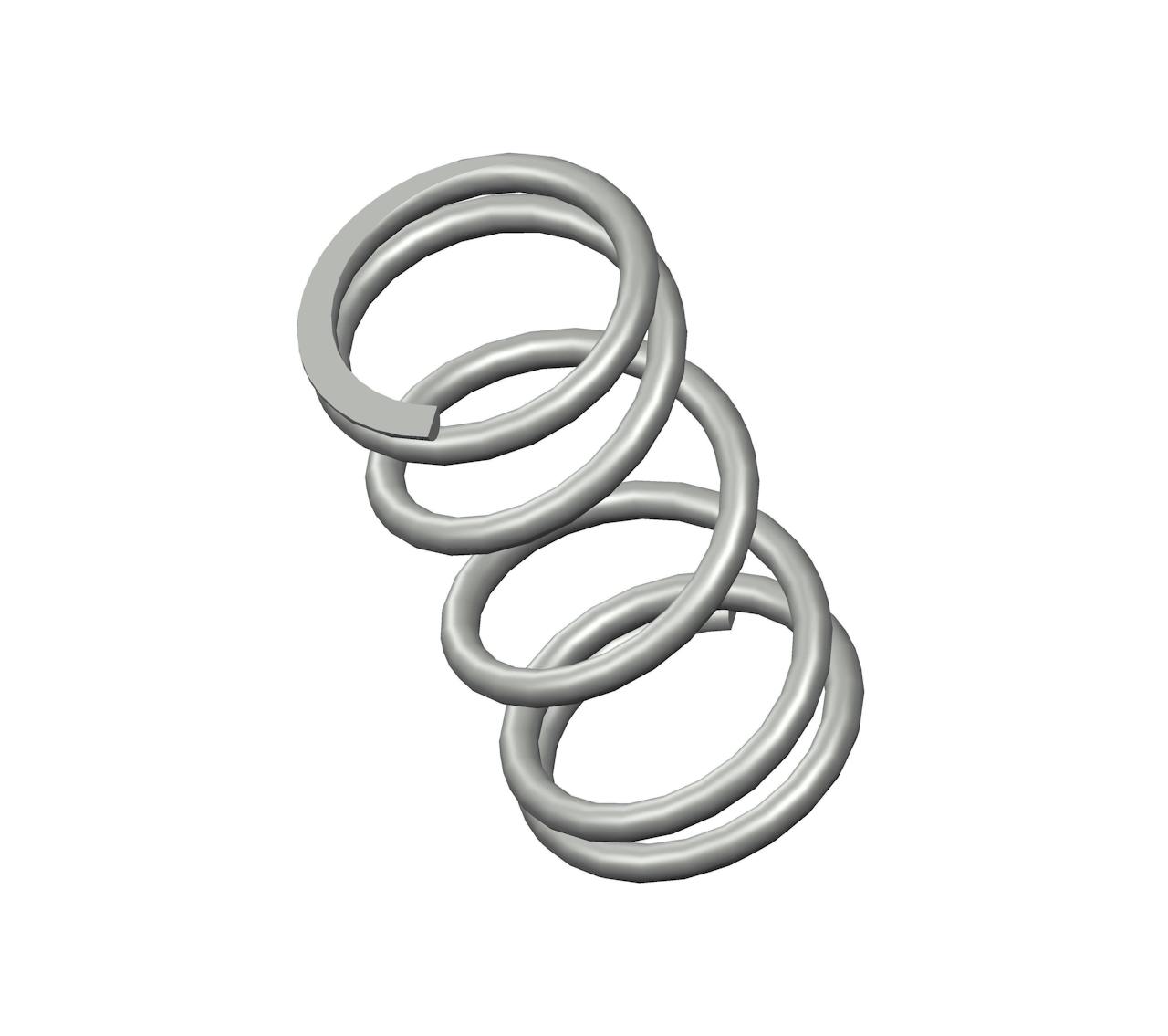

4242CS - 3" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 5.5 coils and closed & ground ends. This spring features an O.D. of 1.531", and an I.D. of 1.207".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 4242
Ends Closed & Ground
Finish Zinc
Free Length 3 in
Inside Diameter 1.207 in
Material Spring Steel
Outside Diameter 1.531 in
Part Type Standard
Rate 110 lbs/in
SKU 4242CS
Solid Length 0.89 in
Suggested Max Deflection 0.75 in
Suggested Max Load 83 lbf
Total Coils 5.5
Wire Diameter 0.162 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 4242
Ends Closed & Ground
Finish Zinc
Free Length 76.2 mm
Inside Diameter 30.66 mm
Material Spring Steel
Outside Diameter 38.89 mm
Part Type Standard
Rate 19.26 N/mm
SKU 4242CS
Solid Length 22.61 mm
Suggested Max Deflection 19.05 mm
Suggested Max Load 369.18 N
Total Coils 5.5
Wire Diameter 4.11 mm
The 4242CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.162" diameter spring steel, the 4242 spring design exhibits reliable strength across its 5.5 active coils, withstanding repeated compression cycles with a maximum load of 83 lbf without succumbing to fatigue.

We manufacture the 4242 design to provide a compression spring that is 3" long at rest and provides a consistent rate of 110 lbs/in along its recommended maximum of 0.75" deflection. For best results, your application should fully accommodate the inner (1.207") and outer (1.531") diameters of this spring and be designed for its closed & ground end configuration.
