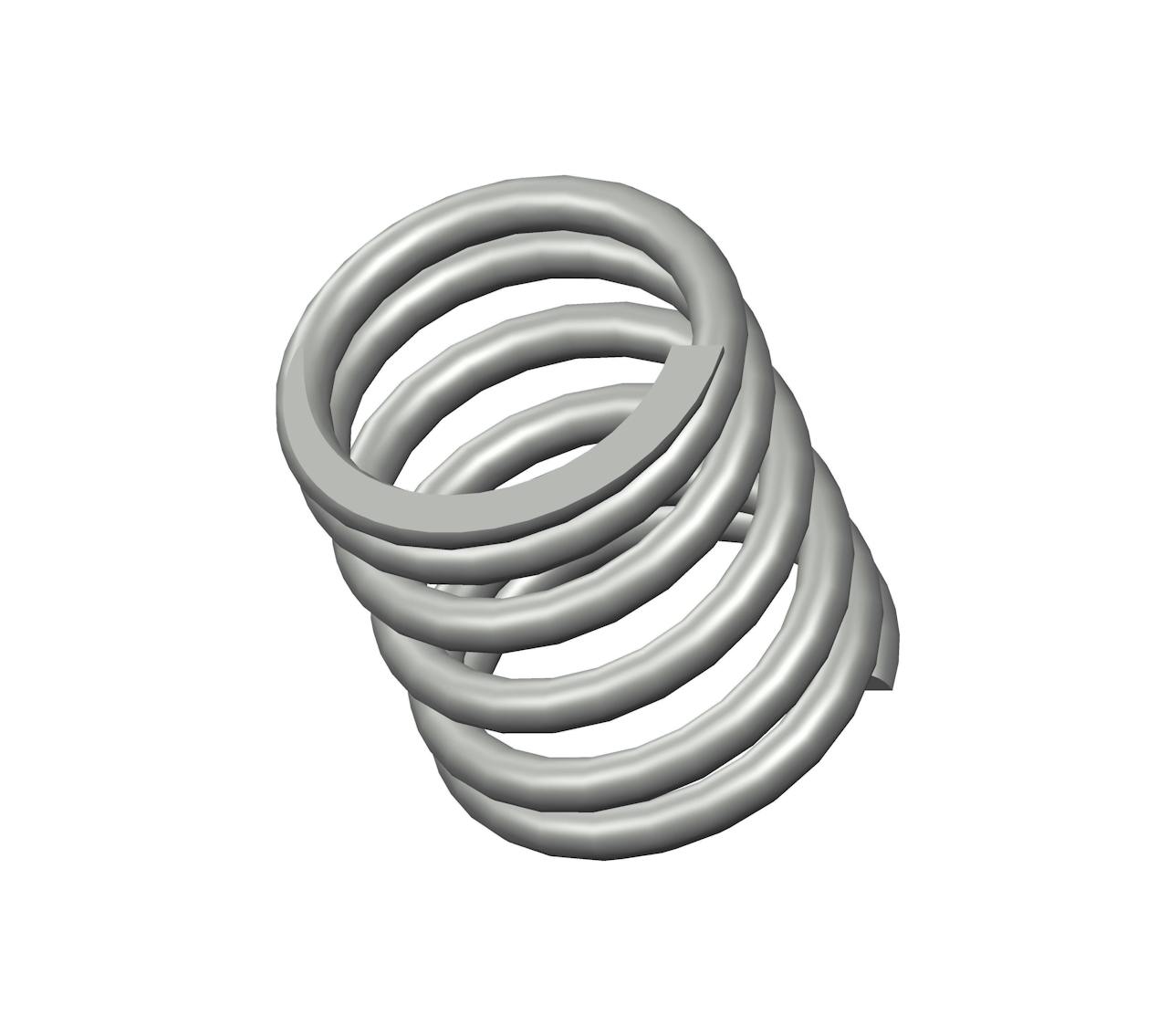

4184CS - 1" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from spring steel with 6 coils and closed & ground ends. This spring features an O.D. of 0.875", and an I.D. of 0.675".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 4184
Ends Closed & Ground
Finish Zinc
Free Length 1 in
Inside Diameter 0.675 in
Material Spring Steel
Outside Diameter 0.875 in
Part Type Standard
Rate 77 lbs/in
SKU 4184CS
Solid Length 0.6 in
Suggested Max Deflection 0.4 in
Suggested Max Load 31 lbf
Total Coils 6
Wire Diameter 0.1 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 4184
Ends Closed & Ground
Finish Zinc
Free Length 25.4 mm
Inside Diameter 17.15 mm
Material Spring Steel
Outside Diameter 22.23 mm
Part Type Standard
Rate 13.48 N/mm
SKU 4184CS
Solid Length 15.24 mm
Suggested Max Deflection 10.16 mm
Suggested Max Load 137.89 N
Total Coils 6
Wire Diameter 2.54 mm
The compression spring 4184CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the 4184 compression spring design exhibits exceptional tensile strength and resilience.

The 4184 design is manufactured with a free length of 1", with an outer diameter of 0.875", an inner diameter of 0.675", and a total of 6 coils, expertly designed to deliver consistent compression characteristics including a rate of 77 lbs/in.

The 4184CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 4184 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
