4180CS - 2.25" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

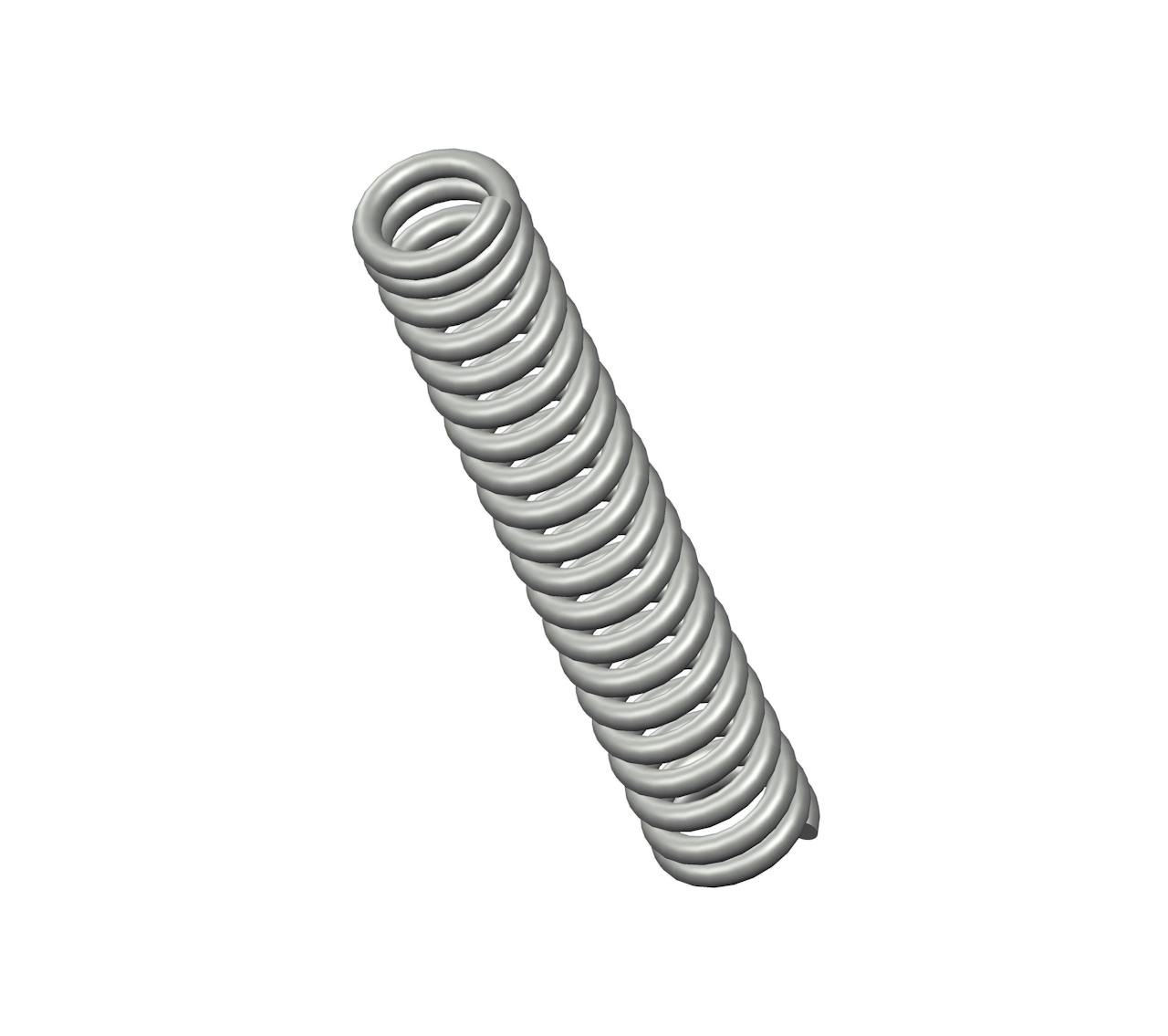

Compression spring manufactured from spring steel with 20 coils and closed ends. This spring features an O.D. of 0.375", and an I.D. of 0.247".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 4180
Ends Closed
Finish Zinc
Free Length 2.25 in
Inside Diameter 0.247 in
Material Spring Steel
Outside Diameter 0.375 in
Part Type Standard
Rate 45 lbs/in
SKU 4180CS
Solid Length 1.34 in
Suggested Max Deflection 0.54 in
Suggested Max Load 24 lbf
Total Coils 20
Wire Diameter 0.064 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 4180
Ends Closed
Finish Zinc
Free Length 57.15 mm
Inside Diameter 6.27 mm
Material Spring Steel
Outside Diameter 9.53 mm
Part Type Standard
Rate 7.88 N/mm
SKU 4180CS
Solid Length 34.04 mm
Suggested Max Deflection 13.72 mm
Suggested Max Load 106.75 N
Total Coils 20
Wire Diameter 1.63 mm
The 4180CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.064" diameter spring steel, the 4180 spring design exhibits reliable strength across its 20 active coils, withstanding repeated compression cycles with a maximum load of 24 lbf without succumbing to fatigue.

We manufacture the 4180 design to provide a compression spring that is 2.25" long at rest and provides a consistent rate of 45 lbs/in along its recommended maximum of 0.54" deflection. For best results, your application should fully accommodate the inner (0.247") and outer (0.375") diameters of this spring and be designed for its closed end configuration.
