Century Spring

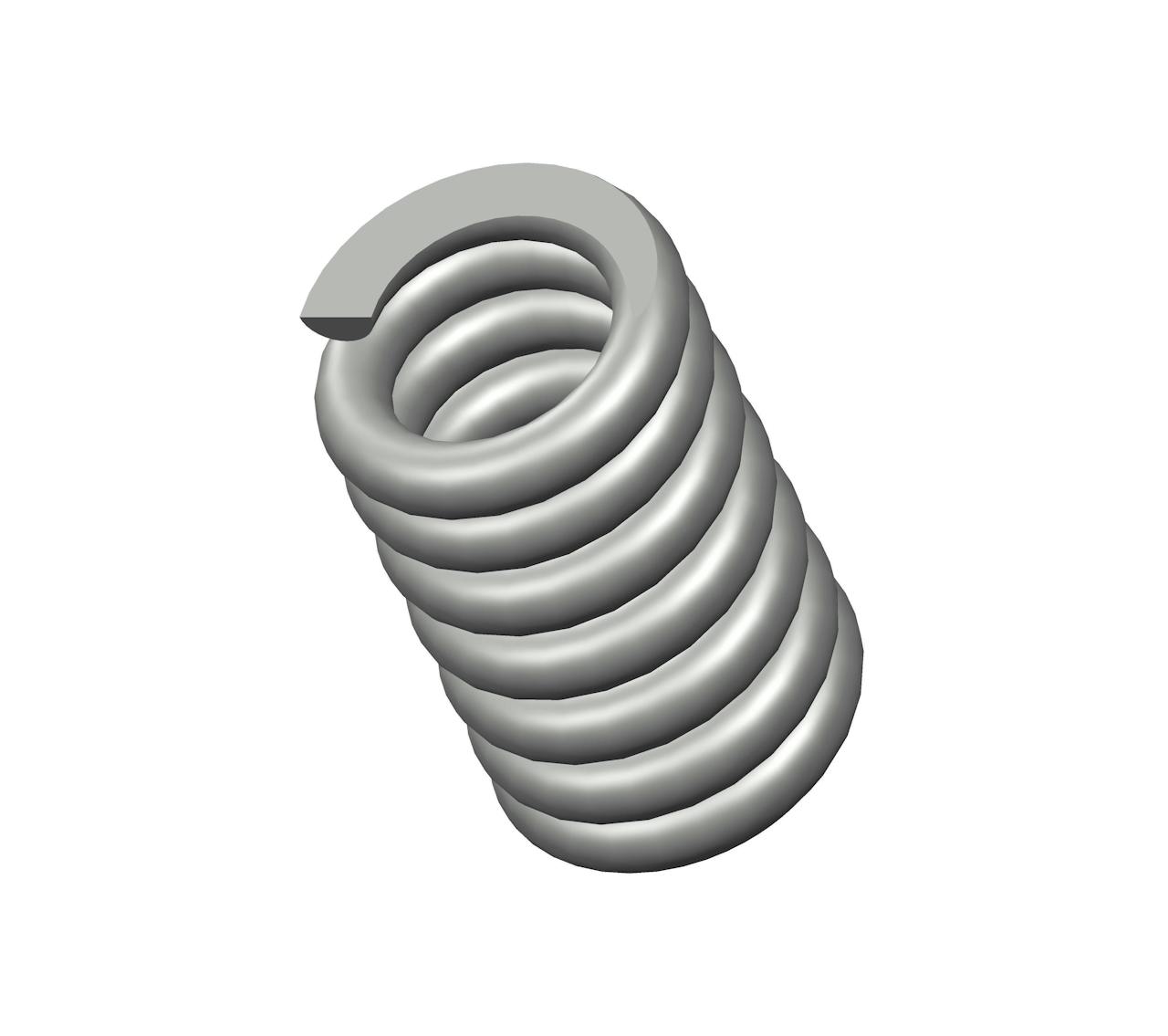

4159CS - 3" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 7 coils and closed & ground ends. This spring features an O.D. of 1.875", and an I.D. of 1.151".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 4159
Ends Closed & Ground
Finish None
Free Length 3 in
Inside Diameter 1.151 in
Material Spring Steel
Outside Diameter 1.875 in
Part Type Standard
Rate 1425 lbs/in
SKU 4159CS
Solid Length 2.57 in
Suggested Max Deflection 0.4 in
Suggested Max Load 570 lbf
Total Coils 7
Wire Diameter 0.362 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 4159
Ends Closed & Ground
Finish None
Free Length 76.2 mm
Inside Diameter 29.24 mm
Material Spring Steel
Outside Diameter 47.63 mm
Part Type Standard
Rate 249.52 N/mm
SKU 4159CS
Solid Length 65.28 mm
Suggested Max Deflection 10.16 mm
Suggested Max Load 2535.36 N
Total Coils 7
Wire Diameter 9.19 mm
The 4159CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.362" diameter spring steel, the 4159 spring design exhibits reliable strength across its 7 active coils, withstanding repeated compression cycles with a maximum load of 570 lbf without succumbing to fatigue.

We manufacture the 4159 design to provide a compression spring that is 3" long at rest and provides a consistent rate of 1425 lbs/in along its recommended maximum of 0.4" deflection. For best results, your application should fully accommodate the inner (1.151") and outer (1.875") diameters of this spring and be designed for its closed & ground end configuration.
