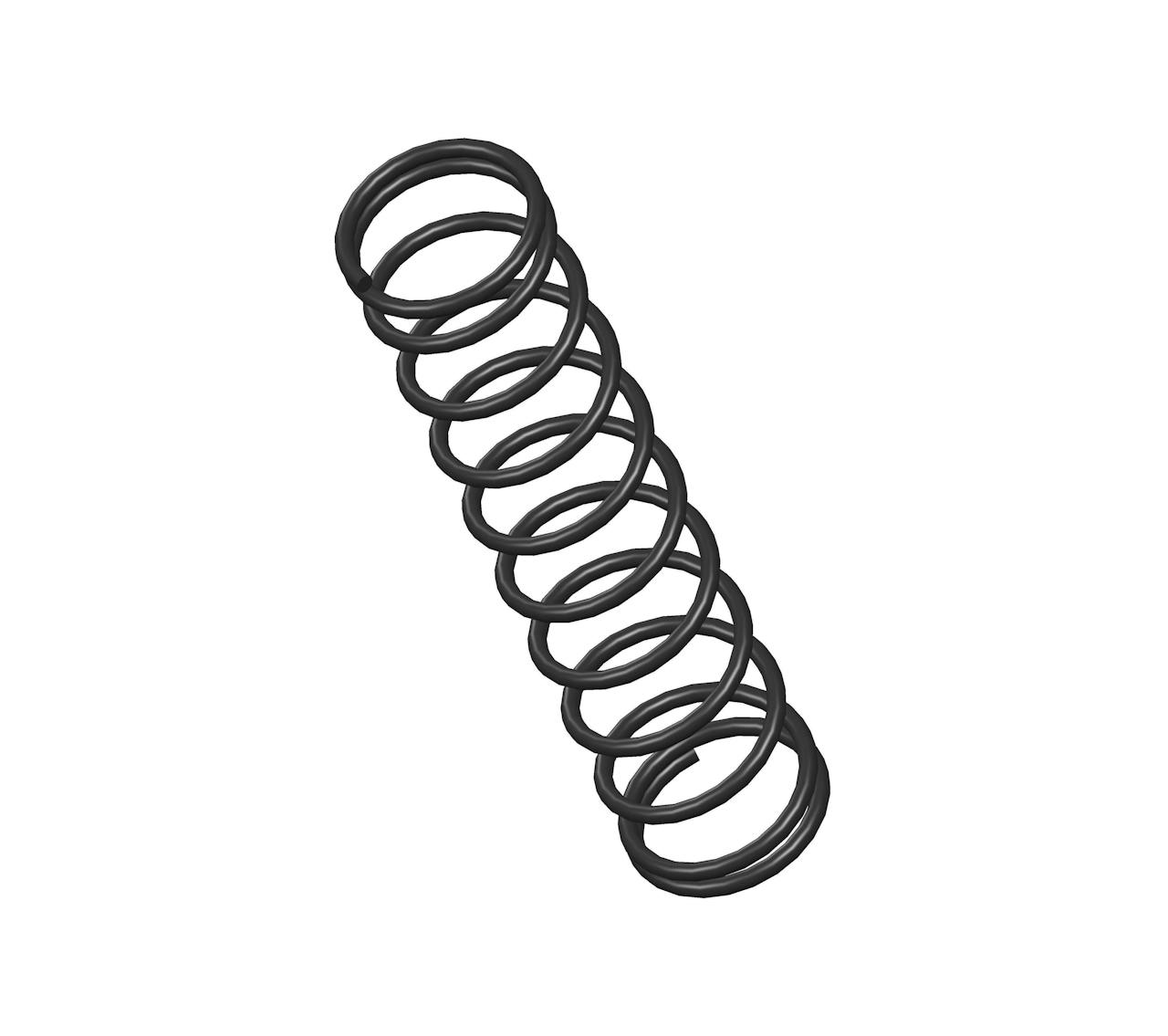

410CS - 1.25" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from spring steel with 18.7 coils and closed ends. This spring features an O.D. of 0.281", and an I.D. of 0.231".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 410
Ends Closed
Finish Black Oxide
Free Length 1.25 in
Inside Diameter 0.231 in
Material Spring Steel
Outside Diameter 0.281 in
Part Type Standard
Rate 2 lbs/in
SKU 410CS
Solid Length 0.493 in
Suggested Max Deflection 0.757 in
Suggested Max Load 1.5 lbf
Total Coils 18.7
Wire Diameter 0.025 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 410
Ends Closed
Finish Black Oxide
Free Length 31.75 mm
Inside Diameter 5.87 mm
Material Spring Steel
Outside Diameter 7.14 mm
Part Type Standard
Rate 0.35 N/mm
SKU 410CS
Solid Length 12.52 mm
Suggested Max Deflection 19.23 mm
Suggested Max Load 6.67 N
Total Coils 18.7
Wire Diameter 0.64 mm
The compression spring 410CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the 410 compression spring design exhibits exceptional tensile strength and resilience.

The 410 design is manufactured with a free length of 1.25", with an outer diameter of 0.281", an inner diameter of 0.231", and a total of 18.7 coils, expertly designed to deliver consistent compression characteristics including a rate of 2 lbs/in.

The 410CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 410 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
