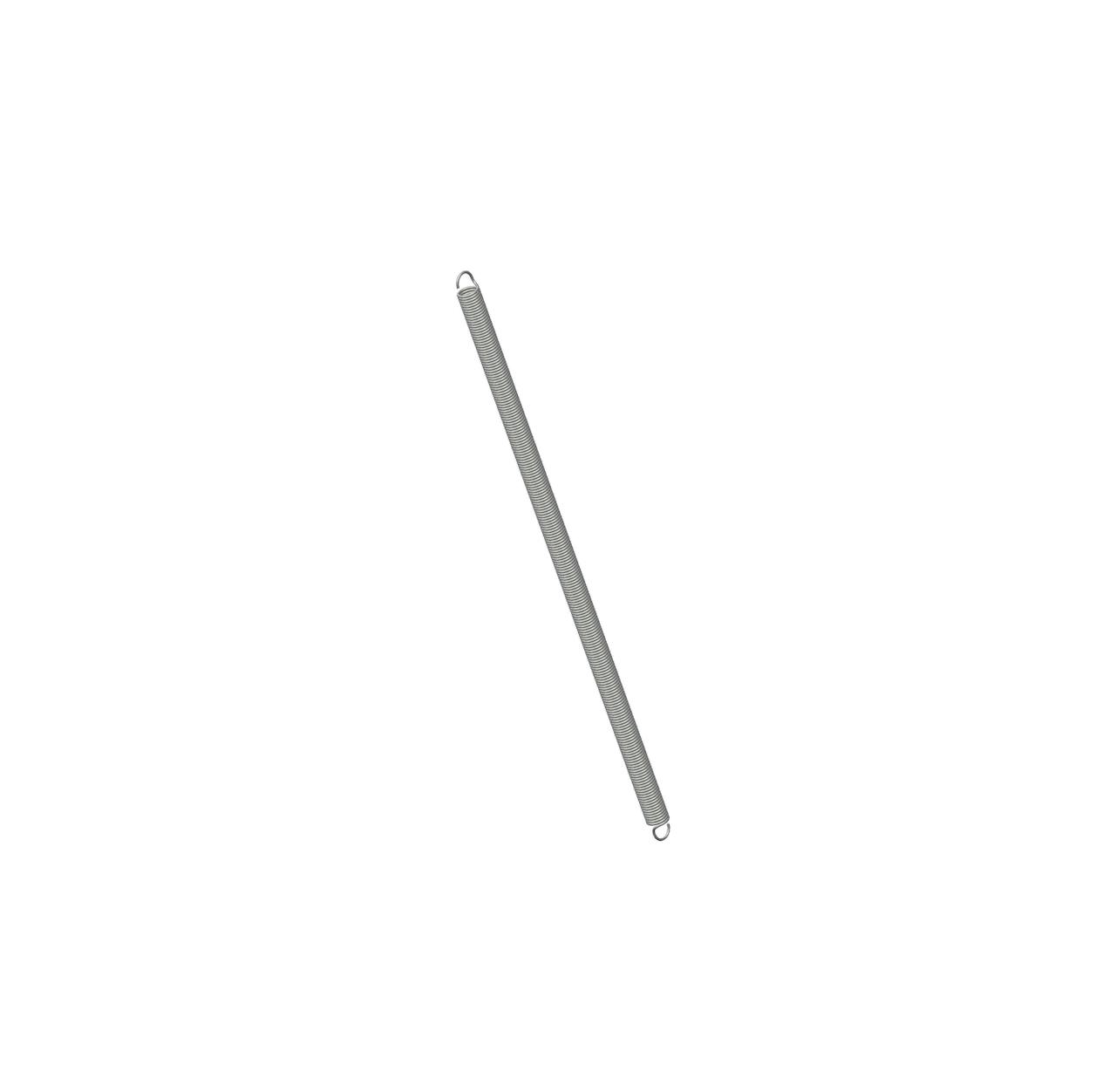

4071CS - 24 Inch High Carbon Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in High Carbon Steel. This spring features an O.D. of 0.875 Inch and an initial tension of 8 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 4071
Ends Machine Hook
Finish Zinc
Initial Tension 8 lb
Length 24 in
Material High Carbon Steel
Outside Diameter 0.875 in
Part Type Standard
Rate 1.8 lbs/in
SKU 4071CS
Sugg Max Deflection 19 in
Sugg Max Load 41 lbf
Wire Diameter 0.105 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 4071
Ends Machine Hook
Finish Zinc
Initial Tension 3.63 kg
Length 609.6 mm
Material High Carbon Steel
Outside Diameter 22.23 mm
Part Type Standard
Rate 0.32 N/mm
SKU 4071CS
Sugg Max Deflection 482.6 mm
Sugg Max Load 182.37 N
Wire Diameter 2.67 mm
