Century Spring

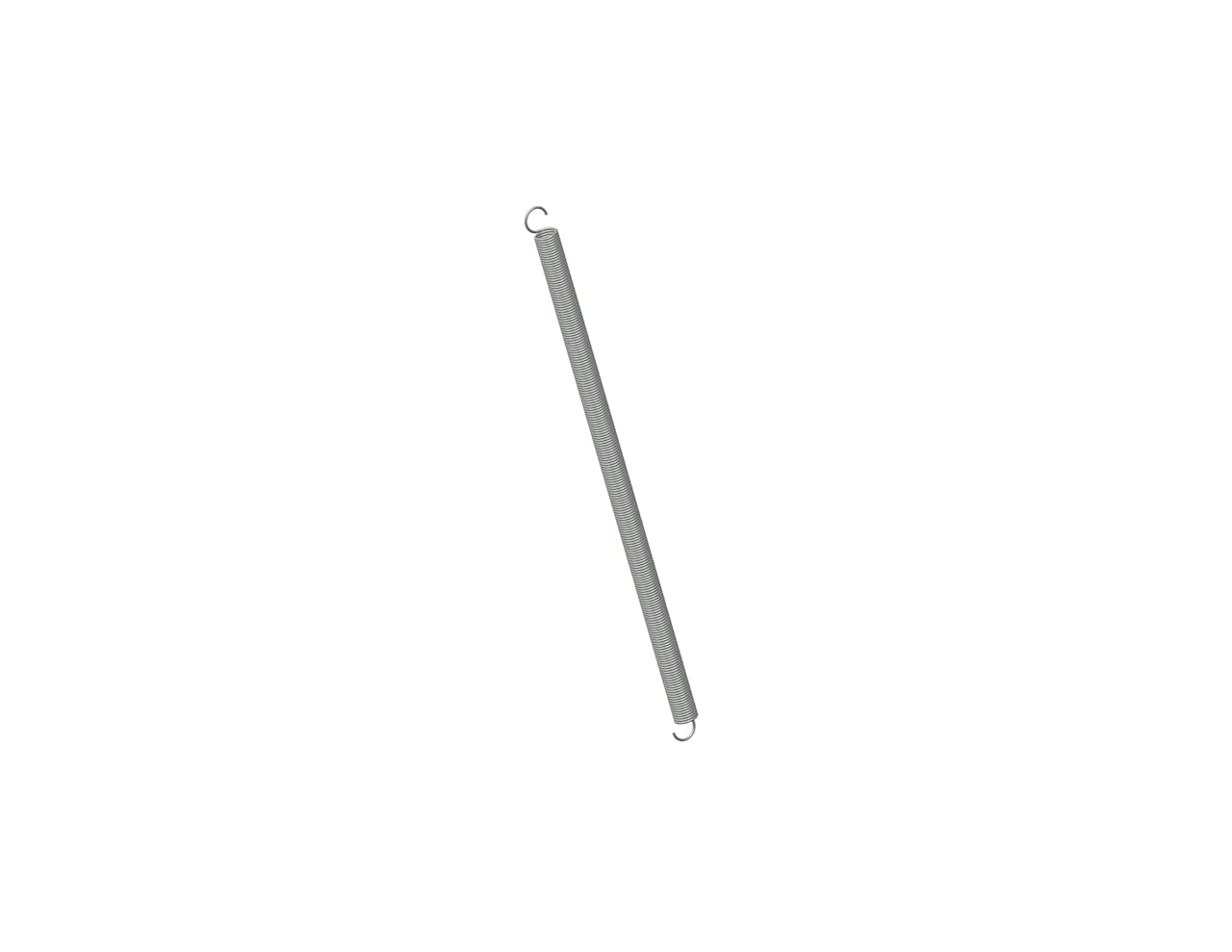

4058CS - 26.5 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 1.125 Inch and an initial tension of 8 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 4058
Ends Side Hook
Finish None
Initial Tension 8 lb
Length 26.5 in
Material Spring Steel
Outside Diameter 1.125 in
Part Type Standard
Rate 1.4 lbs/in
SKU 4058CS
Sugg Max Deflection 26 in
Sugg Max Load 46 lbf
Wind Direction Left
Wire Diameter 0.12 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 4058
Ends Side Hook
Finish None
Initial Tension 3.63 kg
Length 673.1 mm
Material Spring Steel
Outside Diameter 28.58 mm
Part Type Standard
Rate 0.25 N/mm
SKU 4058CS
Sugg Max Deflection 660.4 mm
Sugg Max Load 204.61 N
Wind Direction Left
Wire Diameter 3.05 mm
