Century Spring

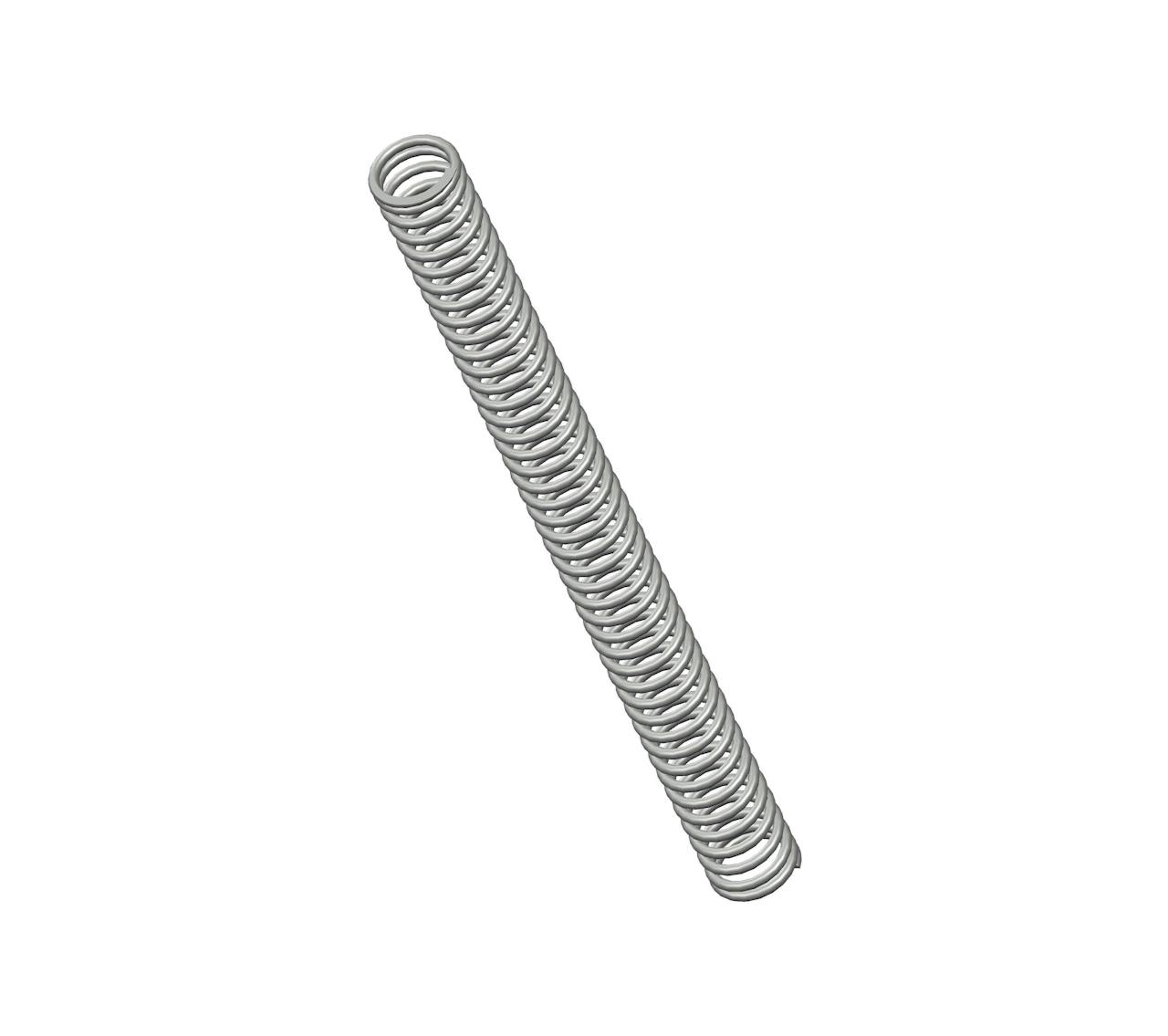

4054CS - 22.5" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 44 coils and closed ends. This spring features an O.D. of 1.921", and an I.D. of 1.471".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 4054
Ends Closed
Finish Zinc
Free Length 22.5 in
Inside Diameter 1.471 in
Material Spring Steel
Outside Diameter 1.921 in
Part Type Standard
Rate 18 lbs/in
SKU 4054CS
Solid Length 10.1 in
Suggested Max Deflection 9 in
Suggested Max Load 162 lbf
Total Coils 44
Wire Diameter 0.225 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 4054
Ends Closed
Finish Zinc
Free Length 571.5 mm
Inside Diameter 37.36 mm
Material Spring Steel
Outside Diameter 48.79 mm
Part Type Standard
Rate 3.15 N/mm
SKU 4054CS
Solid Length 256.54 mm
Suggested Max Deflection 228.6 mm
Suggested Max Load 720.58 N
Total Coils 44
Wire Diameter 5.72 mm
The 4054 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 4054CS compression spring is designed with a free length of 5" total of 4 coils, and a rate of 11230 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 4054 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
