Century Spring

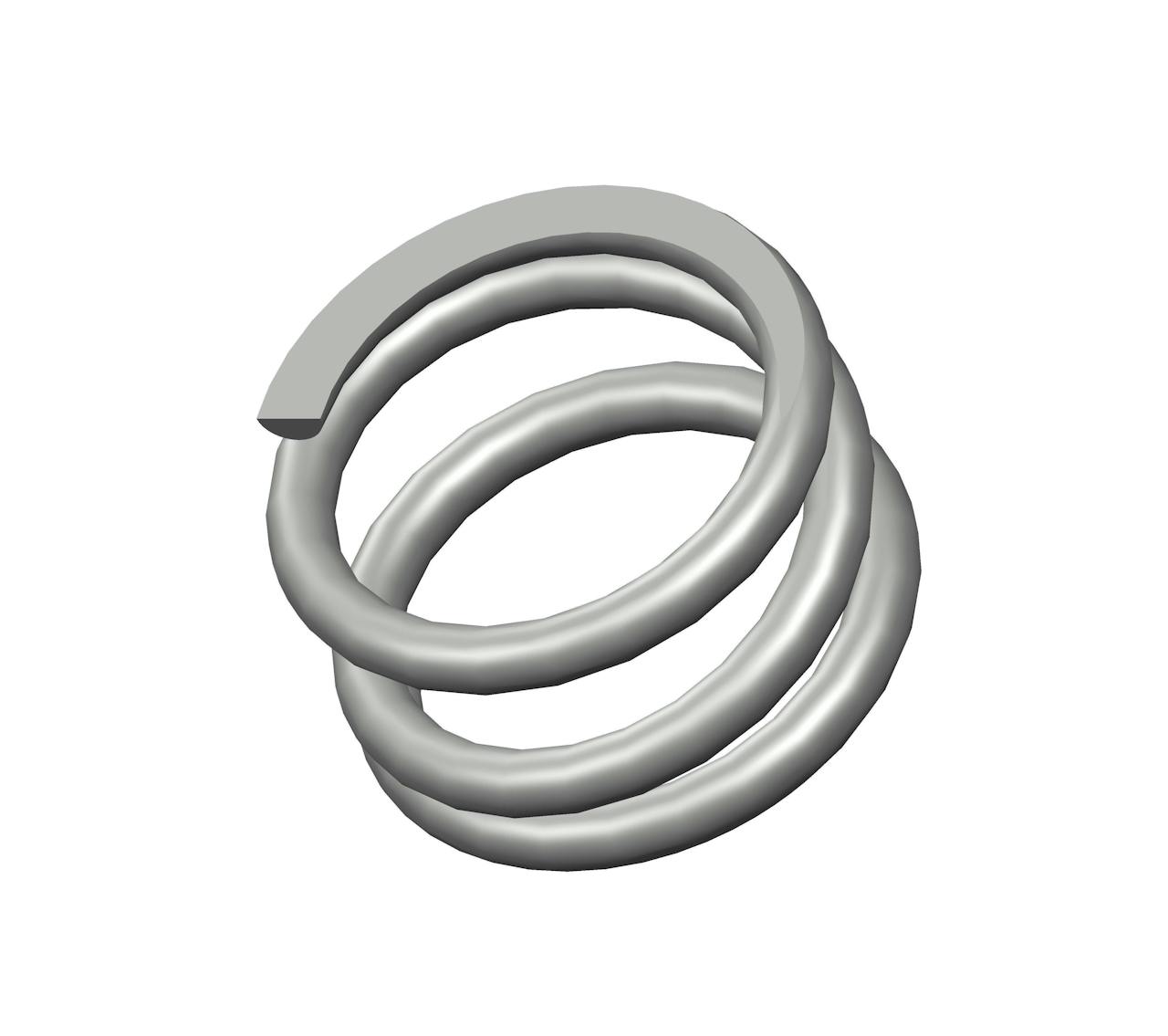

4034CS - 3.5" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 3 coils and closed & ground ends. This spring features an O.D. of 6", and an I.D. of 4.626".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 4034
Ends Closed & Ground
Finish None
Free Length 3.5 in
Inside Diameter 4.626 in
Material Spring Steel
Outside Diameter 6 in
Part Type Standard
Rate 2135 lbs/in
SKU 4034CS
Solid Length 2.06 in
Suggested Max Deflection 0.6 in
Suggested Max Load 1220 lbf
Total Coils 3
Wire Diameter 0.687 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 4034
Ends Closed & Ground
Finish None
Free Length 88.9 mm
Inside Diameter 117.5 mm
Material Spring Steel
Outside Diameter 152.4 mm
Part Type Standard
Rate 373.84 N/mm
SKU 4034CS
Solid Length 52.32 mm
Suggested Max Deflection 15.24 mm
Suggested Max Load 5426.56 N
Total Coils 3
Wire Diameter 17.45 mm
The compression spring 4034CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the 4034 compression spring design exhibits exceptional tensile strength and resilience.

The 4034 design is manufactured with a free length of 3.5", with an outer diameter of 6", an inner diameter of 4.626", and a total of 3 coils, expertly designed to deliver consistent compression characteristics including a rate of 2135 lbs/in.

The 4034CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 4034 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
