4024-BCS - 13" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

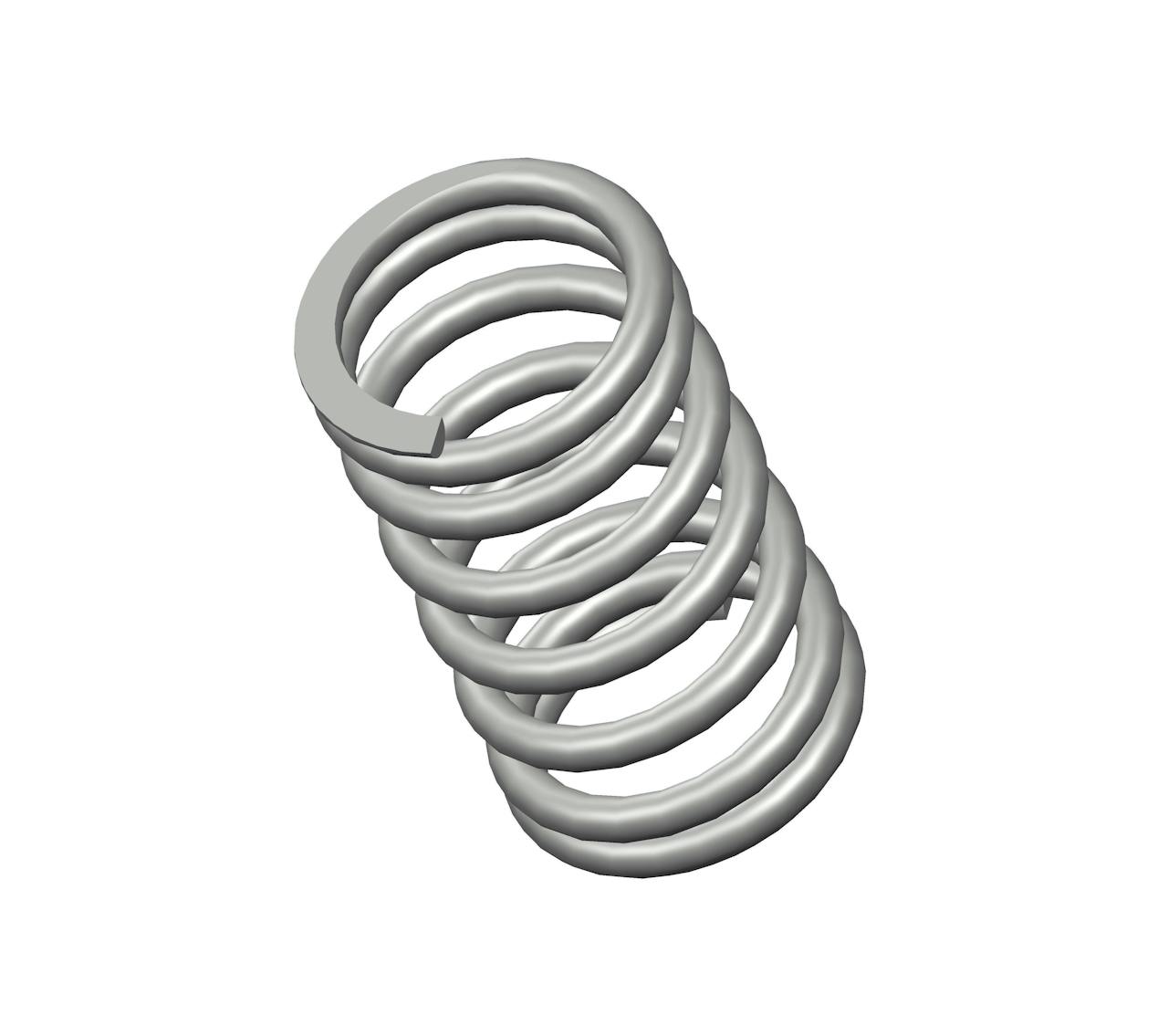

Compression spring manufactured from spring steel with 7.5 coils and closed & ground ends. This spring features an O.D. of 7.25", and an I.D. of 5.5".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 4024-B
Ends Closed & Ground
Finish None
Free Length 13 in
Inside Diameter 5.5 in
Material Spring Steel
Outside Diameter 7.25 in
Part Type Standard
Rate 591 lbs/in
SKU 4024-BCS
Solid Length 6.56 in
Suggested Max Deflection 3.5 in
Suggested Max Load 2060 lbf
Total Coils 7.5
Wire Diameter 0.875 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 4024-B
Ends Closed & Ground
Finish None
Free Length 330.2 mm
Inside Diameter 139.7 mm
Material Spring Steel
Outside Diameter 184.15 mm
Part Type Standard
Rate 103.48 N/mm
SKU 4024-BCS
Solid Length 166.62 mm
Suggested Max Deflection 88.9 mm
Suggested Max Load 9162.88 N
Total Coils 7.5
Wire Diameter 22.23 mm
The 4024-BCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.875" diameter spring steel, the 4024-B spring design exhibits reliable strength across its 7.5 active coils, withstanding repeated compression cycles with a maximum load of 2060 lbf without succumbing to fatigue.

We manufacture the 4024-B design to provide a compression spring that is 13" long at rest and provides a consistent rate of 591 lbs/in along its recommended maximum of 3.5" deflection. For best results, your application should fully accommodate the inner (5.5") and outer (7.25") diameters of this spring and be designed for its closed & ground end configuration.
