397CS - 5.44" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

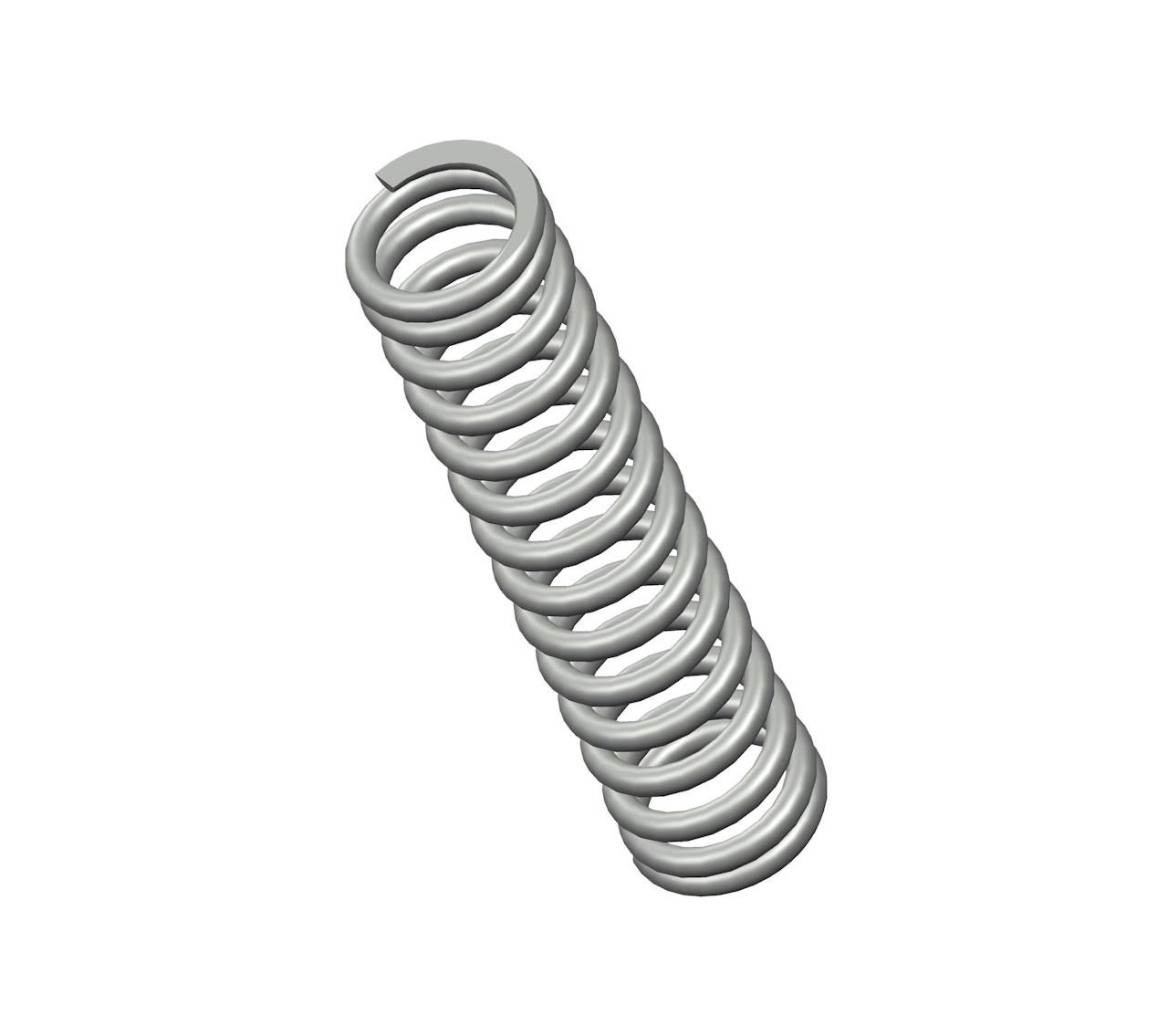

Compression spring manufactured from spring steel with 14.8 coils and closed & ground ends. This spring features an O.D. of 1.234", and an I.D. of 0.88".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 397
Ends Closed & Ground
Finish Zinc
Free Length 5.44 in
Inside Diameter 0.88 in
Material Spring Steel
Outside Diameter 1.234 in
Part Type Standard
Rate 94 lbs/in
SKU 397CS
Solid Length 2.61 in
Suggested Max Deflection 1.4 in
Suggested Max Load 131 lbf
Total Coils 14.8
Wire Diameter 0.177 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 397
Ends Closed & Ground
Finish Zinc
Free Length 138.18 mm
Inside Diameter 22.35 mm
Material Spring Steel
Outside Diameter 31.34 mm
Part Type Standard
Rate 16.46 N/mm
SKU 397CS
Solid Length 66.29 mm
Suggested Max Deflection 35.56 mm
Suggested Max Load 582.69 N
Total Coils 14.8
Wire Diameter 4.5 mm
The 397CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.177" diameter spring steel, the 397 spring design exhibits reliable strength across its 14.8 active coils, withstanding repeated compression cycles with a maximum load of 131 lbf without succumbing to fatigue.

We manufacture the 397 design to provide a compression spring that is 5.44" long at rest and provides a consistent rate of 94 lbs/in along its recommended maximum of 1.4" deflection. For best results, your application should fully accommodate the inner (0.88") and outer (1.234") diameters of this spring and be designed for its closed & ground end configuration.
