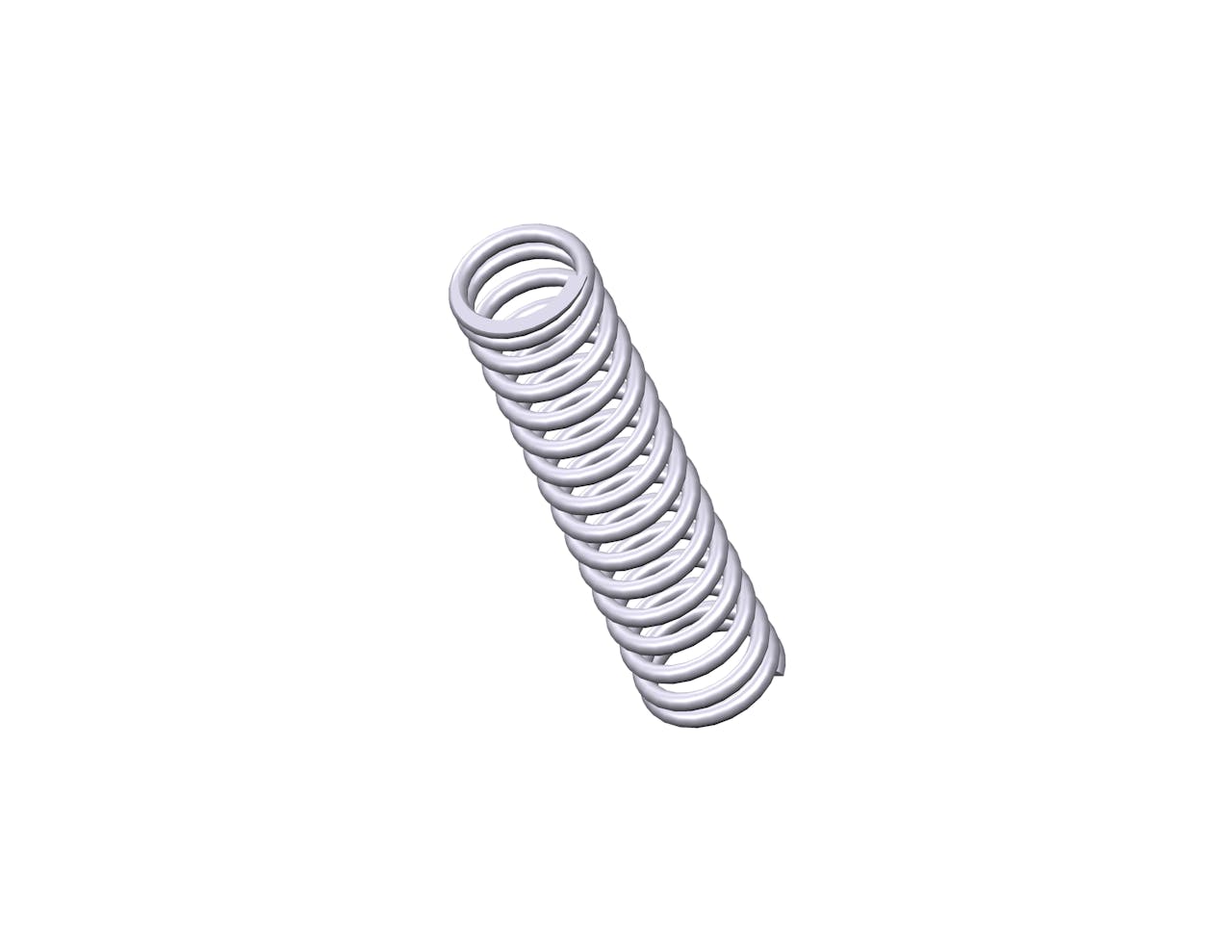

3860CS - 3.75" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 16 coils and closed & ground ends. This spring features an O.D. of 0.875", and an I.D. of 0.651".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 3860 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 3.75 in |
| Inside Diameter | 0.651 in |
| Material | Spring Steel |
| Outside Diameter | 0.875 in |
| Part Type | Standard |
| Rate | 36 lbs/in |
| SKU | 3860CS |
| Solid Length | 1.79 in |
| Suggested Max Deflection | 1.4 in |
| Suggested Max Load | 50 lbf |
| Total Coils | 16 |
| Wire Diameter | 0.112 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 3860 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 95.25 mm |
| Inside Diameter | 16.54 mm |
| Material | Spring Steel |
| Outside Diameter | 22.23 mm |
| Part Type | Standard |
| Rate | 6.3 N/mm |
| SKU | 3860CS |
| Solid Length | 45.47 mm |
| Suggested Max Deflection | 35.56 mm |
| Suggested Max Load | 222.4 N |
| Total Coils | 16 |
| Wire Diameter | 2.84 mm |
The 3860 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The 3860CS compression spring is designed with a free length of 11.5" total of 18 coils, and a rate of 12 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 3860 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The 3860CS compression spring is designed with a free length of 11.5" total of 18 coils, and a rate of 12 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 3860 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
