Century Spring

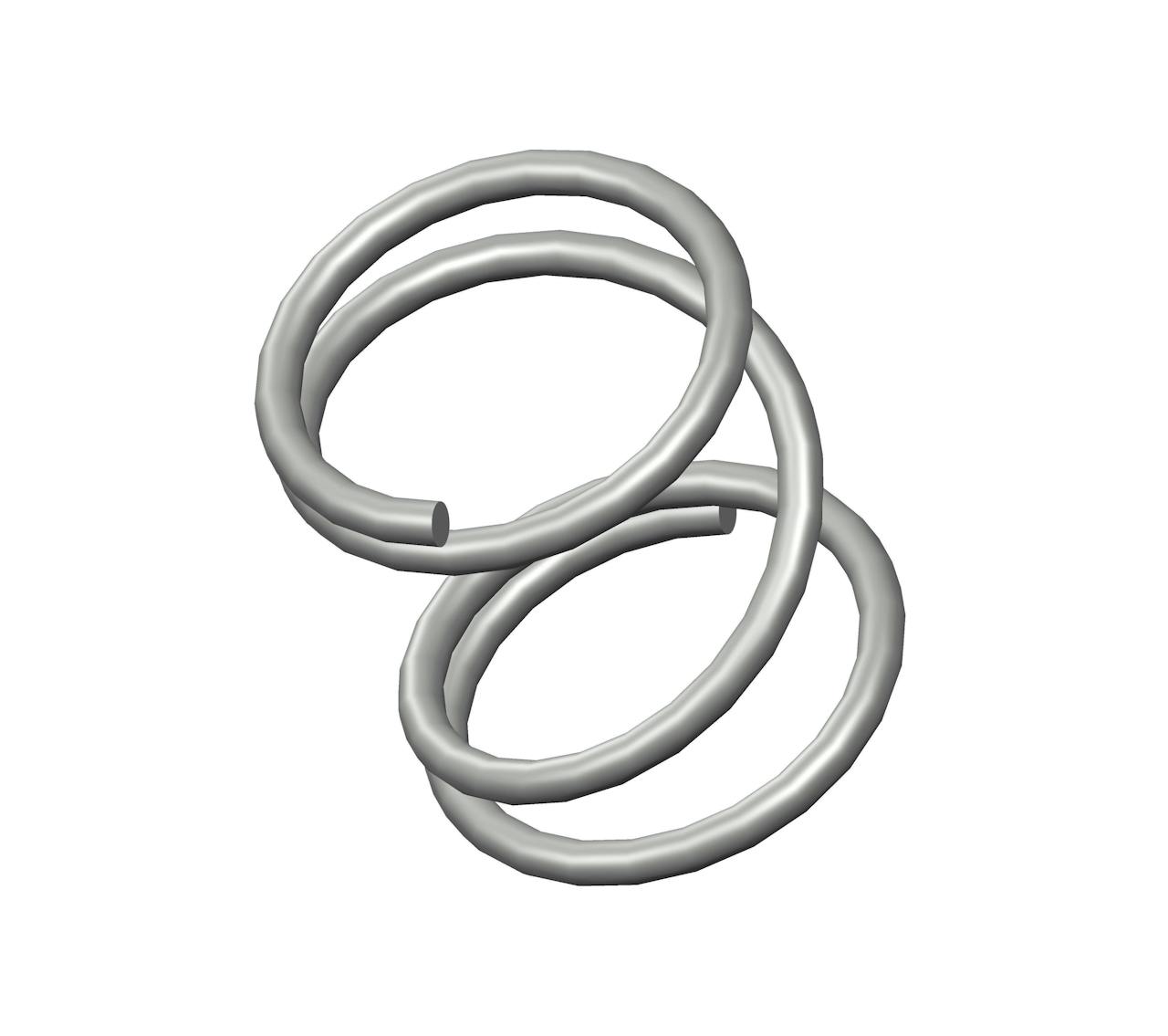

3800CS - 0.56" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 3.5 coils and closed ends. This spring features an O.D. of 0.468", and an I.D. of 0.384".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 3800
Ends Closed
Finish Zinc
Free Length 0.56 in
Inside Diameter 0.384 in
Material Spring Steel
Outside Diameter 0.468 in
Part Type Standard
Rate 39 lbs/in
SKU 3800CS
Solid Length 0.19 in
Suggested Max Deflection 0.16 in
Suggested Max Load 6.1 lbf
Total Coils 3.5
Wire Diameter 0.042 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 3800
Ends Closed
Finish Zinc
Free Length 14.22 mm
Inside Diameter 9.75 mm
Material Spring Steel
Outside Diameter 11.89 mm
Part Type Standard
Rate 6.83 N/mm
SKU 3800CS
Solid Length 4.83 mm
Suggested Max Deflection 4.06 mm
Suggested Max Load 27.13 N
Total Coils 3.5
Wire Diameter 1.07 mm
The compression spring 3800CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the 3800 compression spring design exhibits exceptional tensile strength and resilience.

The 3800 design is manufactured with a free length of 0.56", with an outer diameter of 0.468", an inner diameter of 0.384", and a total of 3.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 39 lbs/in.

The 3800CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 3800 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
