3694CS - 3.13" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

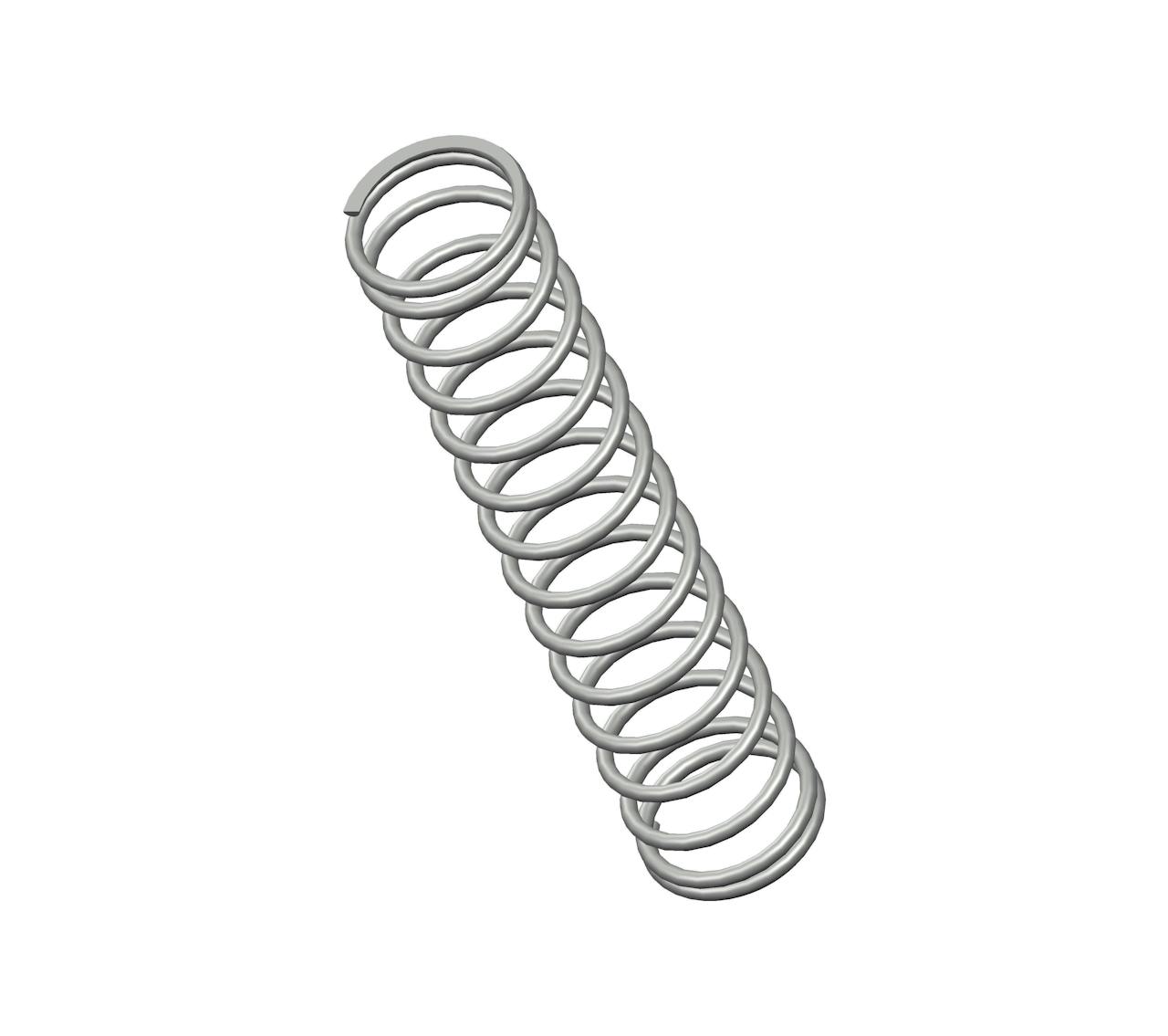

Compression spring manufactured from spring steel with 15 coils and closed & ground ends. This spring features an O.D. of 0.625", and an I.D. of 0.513".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 3694
Ends Closed & Ground
Finish Zinc
Free Length 3.13 in
Inside Diameter 0.513 in
Material Spring Steel
Outside Diameter 0.625 in
Part Type Standard
Rate 5.9 lbs/in
SKU 3694CS
Solid Length 0.84 in
Suggested Max Deflection 1.7 in
Suggested Max Load 10 lbf
Total Coils 15
Wire Diameter 0.056 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 3694
Ends Closed & Ground
Finish Zinc
Free Length 79.5 mm
Inside Diameter 13.03 mm
Material Spring Steel
Outside Diameter 15.88 mm
Part Type Standard
Rate 1.03 N/mm
SKU 3694CS
Solid Length 21.34 mm
Suggested Max Deflection 43.18 mm
Suggested Max Load 44.48 N
Total Coils 15
Wire Diameter 1.42 mm
The 3694CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.056" diameter spring steel, the 3694 spring design exhibits reliable strength across its 15 active coils, withstanding repeated compression cycles with a maximum load of 10 lbf without succumbing to fatigue.

We manufacture the 3694 design to provide a compression spring that is 3.13" long at rest and provides a consistent rate of 5.9 lbs/in along its recommended maximum of 1.7" deflection. For best results, your application should fully accommodate the inner (0.513") and outer (0.625") diameters of this spring and be designed for its closed & ground end configuration.
