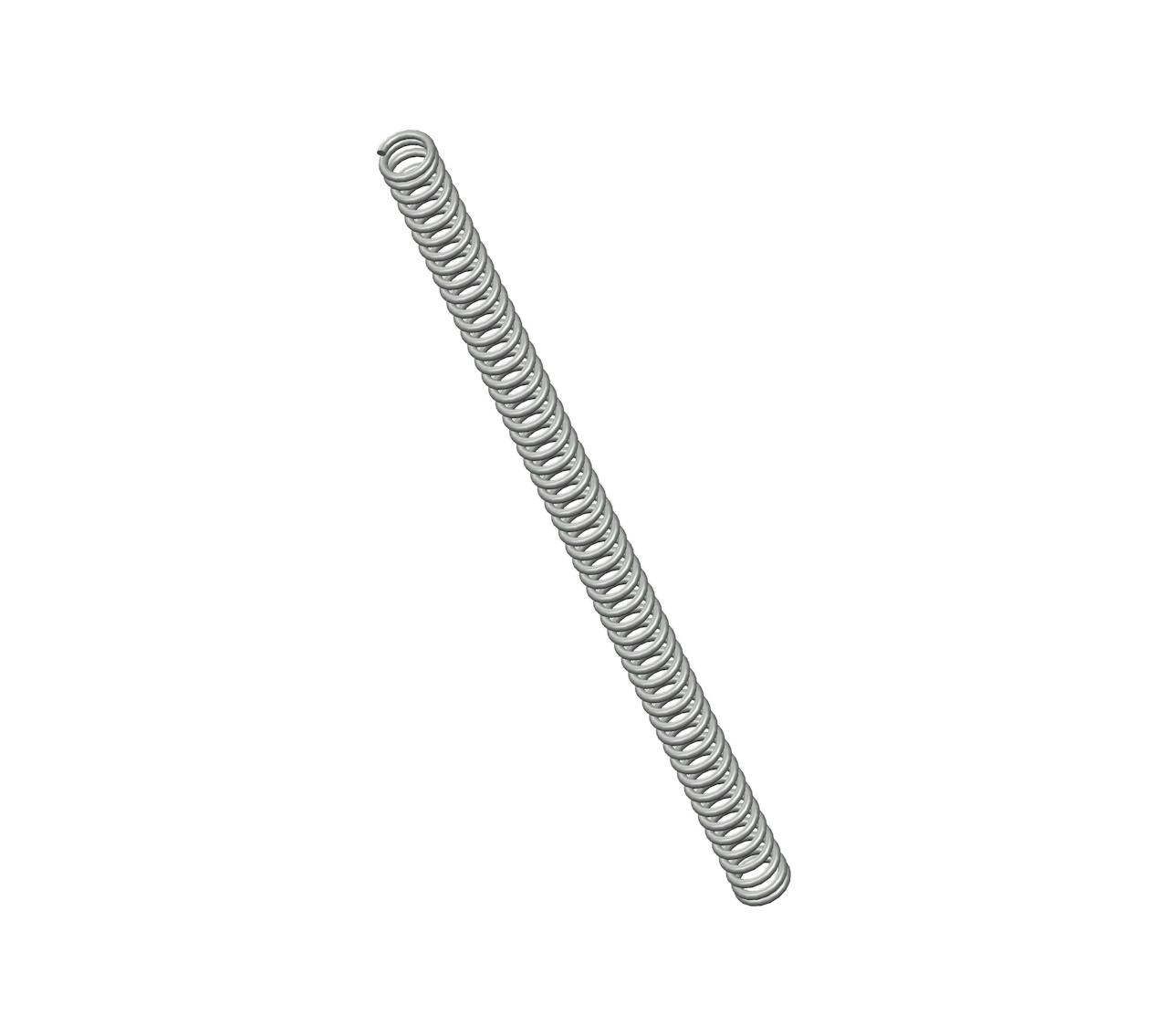

3636CS - 4.5" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 53 coils and closed ends. This spring features an O.D. of 0.234", and an I.D. of 0.162".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 3636 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 4.5 in |
| Inside Diameter | 0.162 in |
| Material | Music Wire |
| Outside Diameter | 0.234 in |
| Part Type | Standard |
| Rate | 6.1 lbs/in |
| SKU | 3636CS |
| Solid Length | 1.94 in |
| Suggested Max Deflection | 1.7 in |
| Suggested Max Load | 10 lbf |
| Total Coils | 53 |
| Wire Diameter | 0.036 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 3636 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 114.3 mm |
| Inside Diameter | 4.11 mm |
| Material | Music Wire |
| Outside Diameter | 5.94 mm |
| Part Type | Standard |
| Rate | 1.07 N/mm |
| SKU | 3636CS |
| Solid Length | 49.28 mm |
| Suggested Max Deflection | 43.18 mm |
| Suggested Max Load | 44.48 N |
| Total Coils | 53 |
| Wire Diameter | 0.91 mm |
The compression spring 3636CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 3636 compression spring design exhibits exceptional tensile strength and resilience.
The 3636 design is manufactured with a free length of 4.5", with an outer diameter of 0.234", an inner diameter of 0.162", and a total of 53 coils, expertly designed to deliver consistent compression characteristics including a rate of 6.1 lbs/in.
The 3636CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 3636 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 3636 design is manufactured with a free length of 4.5", with an outer diameter of 0.234", an inner diameter of 0.162", and a total of 53 coils, expertly designed to deliver consistent compression characteristics including a rate of 6.1 lbs/in.
The 3636CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 3636 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
