Century Spring

3616 - 0.88 Inch Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

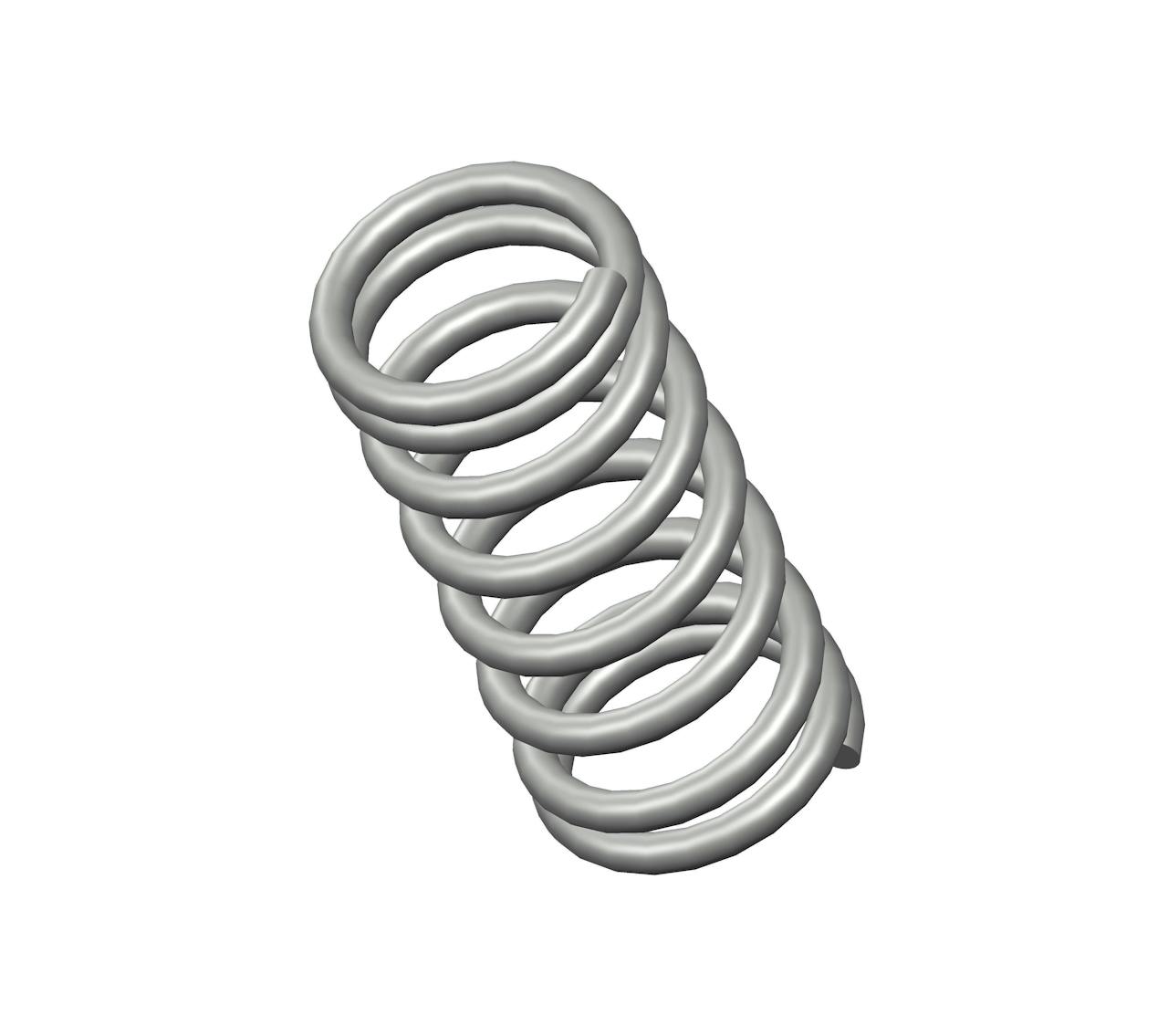

Compression spring manufactured from Spring Steel with 8 coils and Closed ends. This spring features an O.D. of 0.375 Inch, and an I.D. of 0.281 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 3616
Ends Closed
Finish Zinc
Free Length 0.88 in
Inside Diameter 0.281 in
Material Spring Steel
Outside Diameter 0.375 in
Part Type Standard
Rate 33 lbs/in
SKU 3616CS
Solid Length 0.42 in
Suggested Max Deflection 0.32 in
Suggested Max Load 10 lbf
Total Coils 8
Wire Diameter 0.047 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 3616
Ends Closed
Finish Zinc
Free Length 22.35 mm
Inside Diameter 7.14 mm
Material Spring Steel
Outside Diameter 9.53 mm
Part Type Standard
Rate 5.78 N/mm
SKU 3616CS
Solid Length 10.67 mm
Suggested Max Deflection 8.13 mm
Suggested Max Load 44.48 N
Total Coils 8
Wire Diameter 1.19 mm
The 3616CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.047" diameter hard drawn, the 3616 spring design exhibits reliable strength across its 8 active coils, withstanding repeated compression cycles with a maximum load of 10 lbf without succumbing to fatigue.

We manufacture the 3616 design to provide a compression spring that is 0.88" long at rest and provides a consistent rate of 33 lbs/in along its recommended maximum of 0.32" deflection. For best results, your application should fully accommodate the inner (0.281") and outer (0.375") diameters of this spring and be designed for its closed end configuration.
