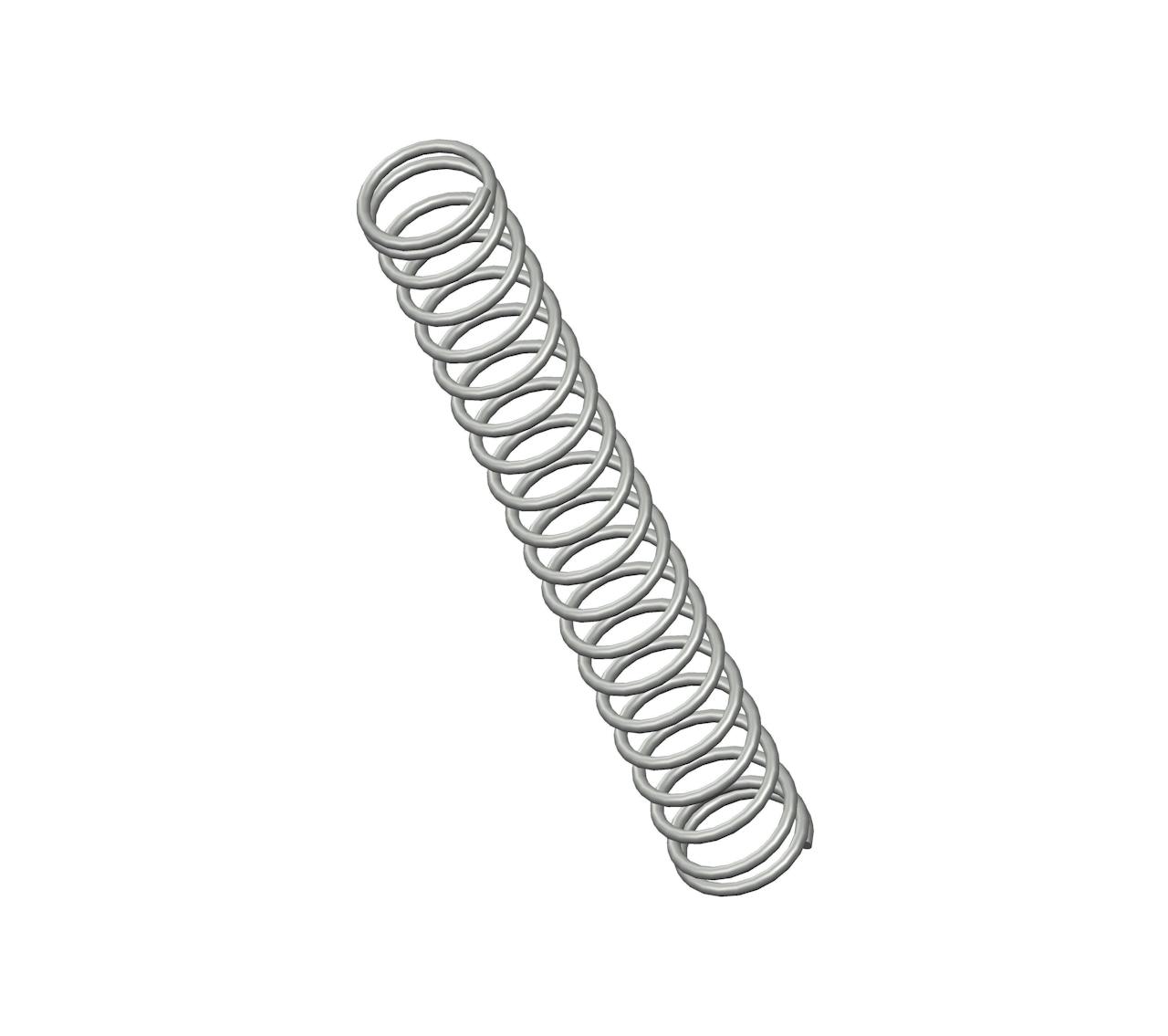

3588CS - 1.38" Music Wire Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from music wire with 20 coils and closed ends. This spring features an O.D. of 0.188", and an I.D. of 0.152".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 3588
Ends Closed
Finish Zinc
Free Length 1.38 in
Inside Diameter 0.152 in
Material Music Wire
Outside Diameter 0.188 in
Part Type Standard
Rate 1.7 lbs/in
SKU 3588CS
Solid Length 0.38 in
Suggested Max Deflection 1 in
Suggested Max Load 1.7 lbf
Total Coils 20
Wire Diameter 0.018 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 3588
Ends Closed
Finish Zinc
Free Length 35.05 mm
Inside Diameter 3.86 mm
Material Music Wire
Outside Diameter 4.78 mm
Part Type Standard
Rate 0.3 N/mm
SKU 3588CS
Solid Length 9.65 mm
Suggested Max Deflection 25.4 mm
Suggested Max Load 7.56 N
Total Coils 20
Wire Diameter 0.46 mm
The compression spring 3588CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 3588 compression spring design exhibits exceptional tensile strength and resilience.

The 3588 design is manufactured with a free length of 1.38", with an outer diameter of 0.188", an inner diameter of 0.152", and a total of 20 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.7 lbs/in.

The 3588CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 3588 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
