3579CS - 1.38" Music Wire Compression Spring

Inventory:
Estimated Lead Time

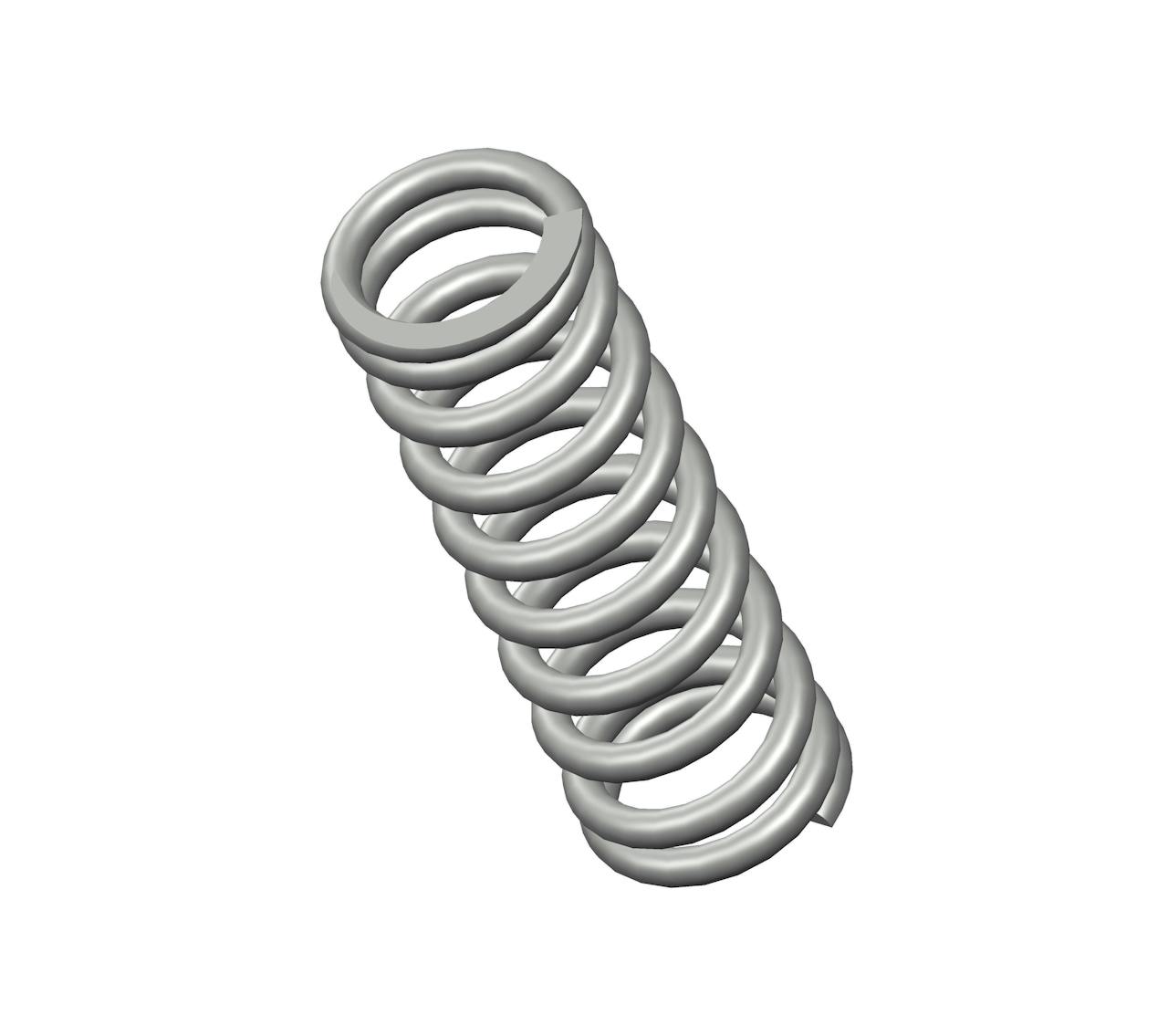

Compression spring manufactured from music wire with 10.1 coils and closed & ground ends. This spring features an O.D. of 0.437", and an I.D. of 0.312".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 3579
Ends Closed & Ground
Finish Zinc
Free Length 1.38 in
Inside Diameter 0.312 in
Material Music Wire
Outside Diameter 0.437 in
Part Type Standard
Rate 53 lbs/in
SKU 3579CS
Solid Length 0.64 in
Suggested Max Deflection 0.53 in
Suggested Max Load 28 lbf
Total Coils 10.1
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 3579
Ends Closed & Ground
Finish Zinc
Free Length 35.05 mm
Inside Diameter 7.92 mm
Material Music Wire
Outside Diameter 11.1 mm
Part Type Standard
Rate 9.28 N/mm
SKU 3579CS
Solid Length 16.26 mm
Suggested Max Deflection 13.46 mm
Suggested Max Load 124.54 N
Total Coils 10.1
Wire Diameter 1.59 mm
The compression spring 3579CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 3579 compression spring design exhibits exceptional tensile strength and resilience.

The 3579 design is manufactured with a free length of 1.38", with an outer diameter of 0.437", an inner diameter of 0.312", and a total of 10.1 coils, expertly designed to deliver consistent compression characteristics including a rate of 53 lbs/in.

The 3579CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 3579 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
