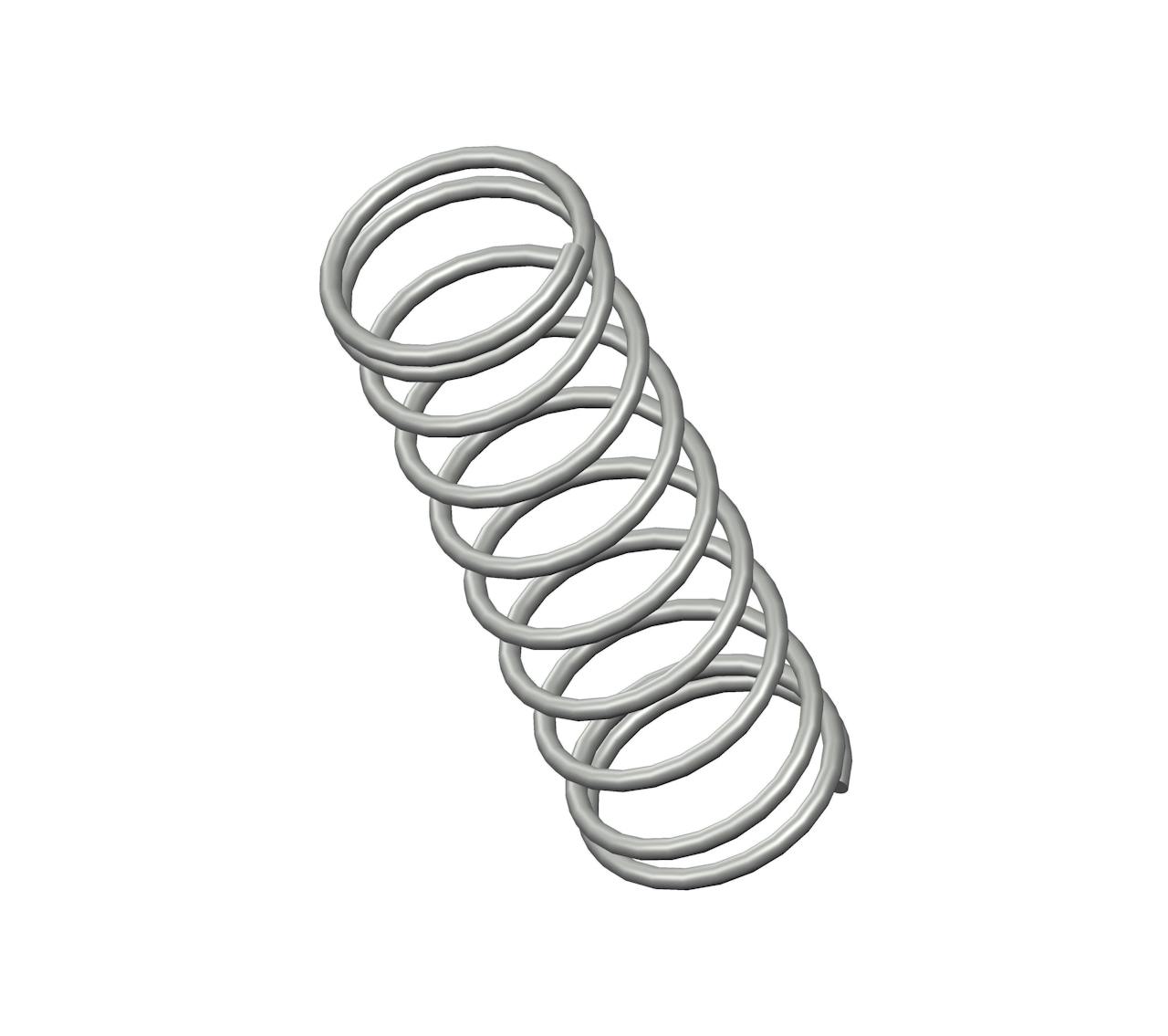

3570CS - 1.5" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from spring steel with 10 coils and closed ends. This spring features an O.D. of 0.484", and an I.D. of 0.408".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 3570
Ends Closed
Finish Zinc
Free Length 1.5 in
Inside Diameter 0.408 in
Material Spring Steel
Outside Diameter 0.484 in
Part Type Standard
Rate 4.2 lbs/in
SKU 3570CS
Solid Length 0.42 in
Suggested Max Deflection 1 in
Suggested Max Load 4.4 lbf
Total Coils 10
Wire Diameter 0.038 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 3570
Ends Closed
Finish Zinc
Free Length 38.1 mm
Inside Diameter 10.36 mm
Material Spring Steel
Outside Diameter 12.29 mm
Part Type Standard
Rate 0.74 N/mm
SKU 3570CS
Solid Length 10.67 mm
Suggested Max Deflection 25.4 mm
Suggested Max Load 19.57 N
Total Coils 10
Wire Diameter 0.97 mm
The compression spring 3570CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the 3570 compression spring design exhibits exceptional tensile strength and resilience.

The 3570 design is manufactured with a free length of 1.5", with an outer diameter of 0.484", an inner diameter of 0.408", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 4.2 lbs/in.

The 3570CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 3570 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
