Century Spring

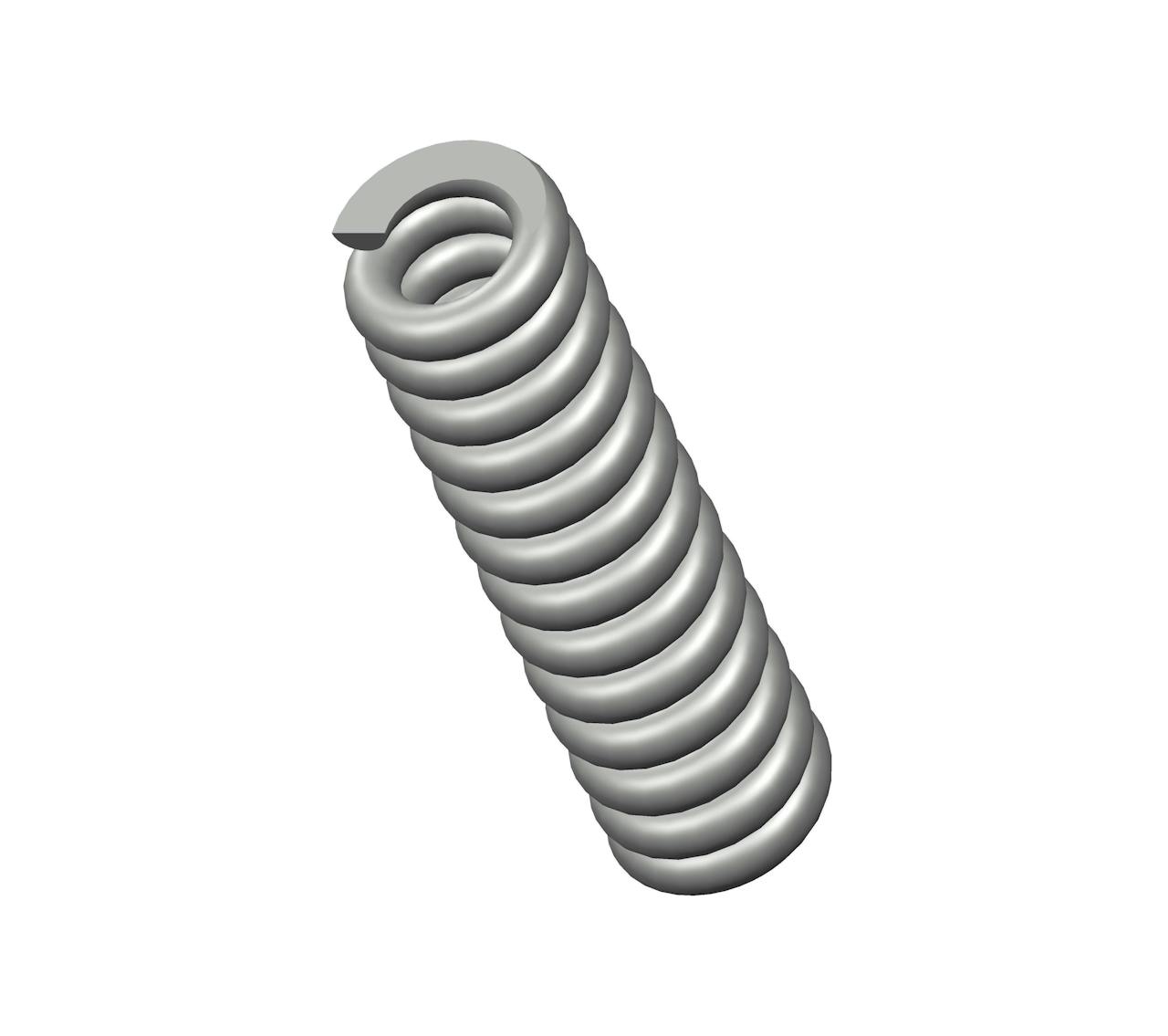

3554CS - 1.75" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 13 coils and closed & ground ends. This spring features an O.D. of 0.468", and an I.D. of 0.248".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 3554
Ends Closed & Ground
Finish Zinc
Free Length 1.75 in
Inside Diameter 0.248 in
Material Music Wire
Outside Diameter 0.468 in
Part Type Standard
Rate 417 lbs/in
SKU 3554CS
Solid Length 1.43 in
Suggested Max Deflection 0.27 in
Suggested Max Load 113 lbf
Total Coils 13
Wire Diameter 0.11 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 3554
Ends Closed & Ground
Finish Zinc
Free Length 44.45 mm
Inside Diameter 6.3 mm
Material Music Wire
Outside Diameter 11.89 mm
Part Type Standard
Rate 73.02 N/mm
SKU 3554CS
Solid Length 36.32 mm
Suggested Max Deflection 6.86 mm
Suggested Max Load 502.62 N
Total Coils 13
Wire Diameter 2.79 mm
The 3554CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.11" diameter music wire, the 3554 spring design exhibits reliable strength across its 13 active coils, withstanding repeated compression cycles with a maximum load of 113 lbf without succumbing to fatigue.

We manufacture the 3554 design to provide a compression spring that is 1.75" long at rest and provides a consistent rate of 417 lbs/in along its recommended maximum of 0.27" deflection. For best results, your application should fully accommodate the inner (0.248") and outer (0.468") diameters of this spring and be designed for its closed & ground end configuration.
