355-CCS - 1.75" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

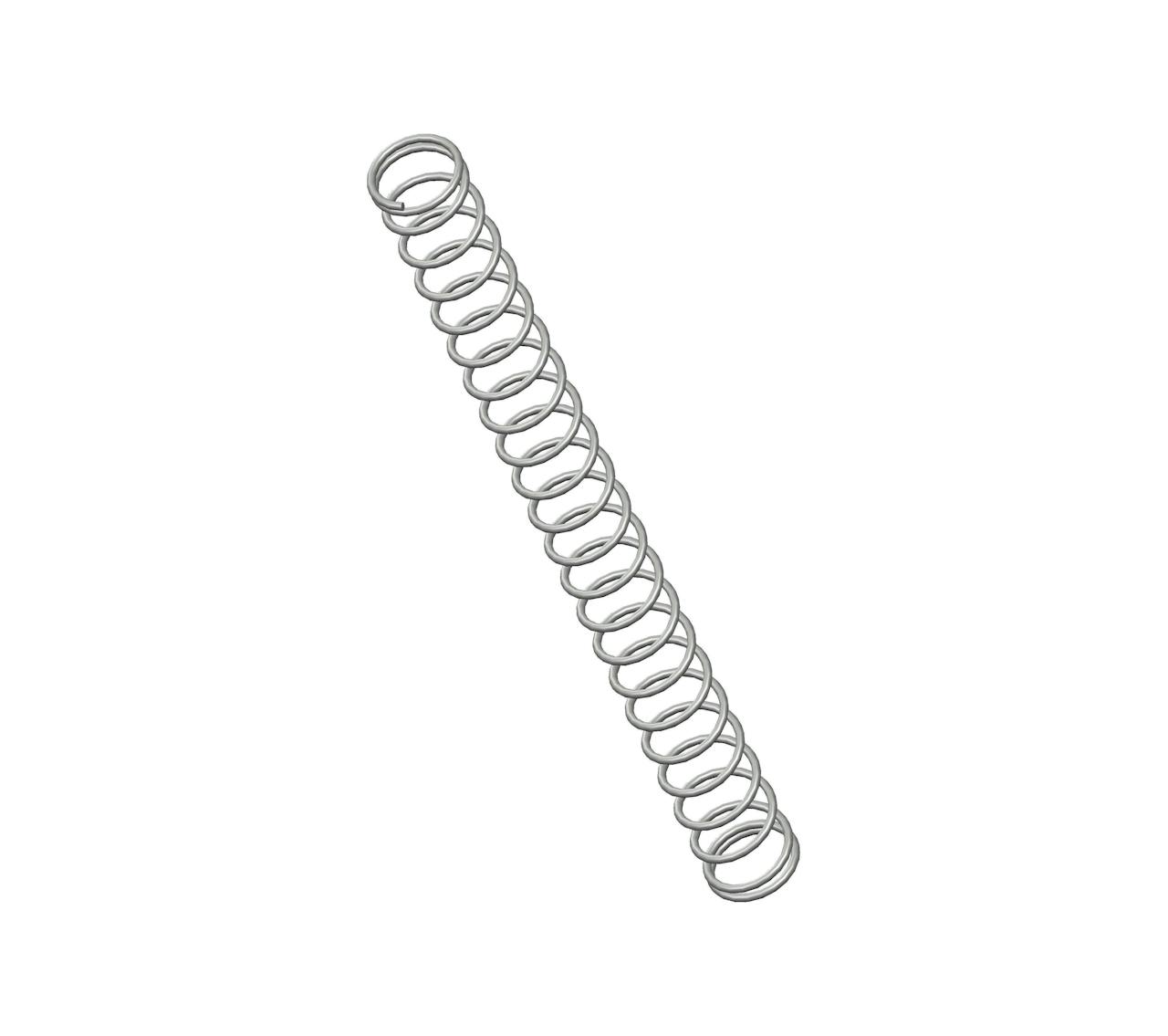

Compression spring manufactured from music wire with 23.5 coils and closed ends. This spring features an O.D. of 0.156", and an I.D. of 0.128".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 355-C |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 1.75 in |
| Inside Diameter | 0.128 in |
| Material | Music Wire |
| Outside Diameter | 0.156 in |
| Part Type | Standard |
| Rate | 0.9 lbs/in |
| SKU | 355-CCS |
| Solid Length | 0.34 in |
| Suggested Max Deflection | 1.3 in |
| Suggested Max Load | 1.2 lbf |
| Total Coils | 23.5 |
| Wire Diameter | 0.014 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 355-C |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 44.45 mm |
| Inside Diameter | 3.25 mm |
| Material | Music Wire |
| Outside Diameter | 3.96 mm |
| Part Type | Standard |
| Rate | 0.16 N/mm |
| SKU | 355-CCS |
| Solid Length | 8.64 mm |
| Suggested Max Deflection | 33.02 mm |
| Suggested Max Load | 5.34 N |
| Total Coils | 23.5 |
| Wire Diameter | 0.36 mm |
The compression spring 355-CCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 355-C compression spring design exhibits exceptional tensile strength and resilience.
The 355-C design is manufactured with a free length of 1.75", with an outer diameter of 0.156", an inner diameter of 0.128", and a total of 23.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.9 lbs/in.
The 355-CCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 355-C design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 355-C design is manufactured with a free length of 1.75", with an outer diameter of 0.156", an inner diameter of 0.128", and a total of 23.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.9 lbs/in.
The 355-CCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 355-C design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
