Century Spring

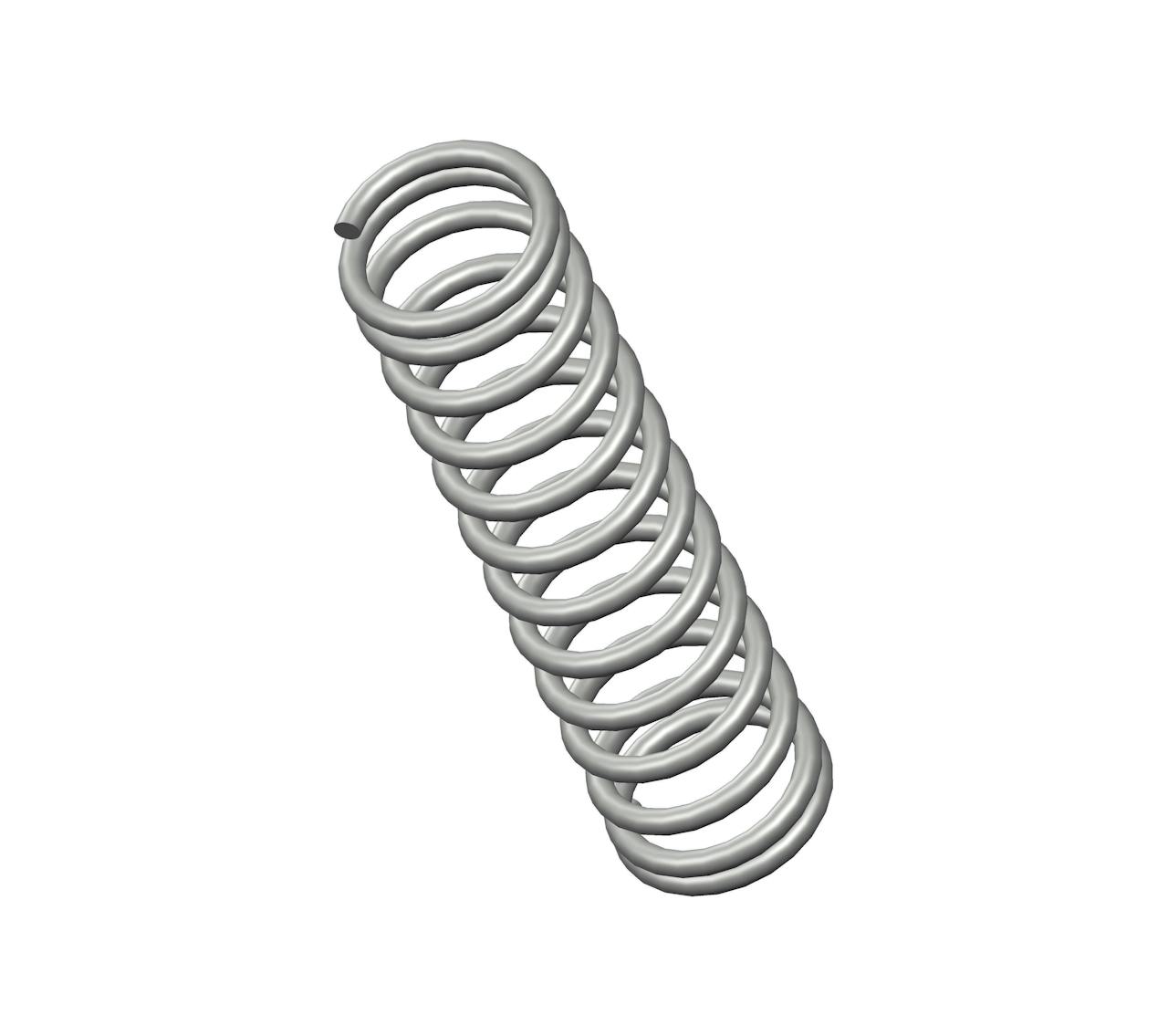

3510CS - 1.13" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 13 coils and closed ends. This spring features an O.D. of 0.281", and an I.D. of 0.215".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 3510
Ends Closed
Finish Zinc
Free Length 1.13 in
Inside Diameter 0.215 in
Material Music Wire
Outside Diameter 0.281 in
Part Type Standard
Rate 10 lbs/in
SKU 3510CS
Solid Length 0.46 in
Suggested Max Deflection 0.66 in
Suggested Max Load 6.7 lbf
Total Coils 13
Wire Diameter 0.033 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 3510
Ends Closed
Finish Zinc
Free Length 28.7 mm
Inside Diameter 5.46 mm
Material Music Wire
Outside Diameter 7.14 mm
Part Type Standard
Rate 1.75 N/mm
SKU 3510CS
Solid Length 11.68 mm
Suggested Max Deflection 16.76 mm
Suggested Max Load 29.8 N
Total Coils 13
Wire Diameter 0.84 mm
The compression spring 3510CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 3510 compression spring design exhibits exceptional tensile strength and resilience.

The 3510 design is manufactured with a free length of 1.13", with an outer diameter of 0.281", an inner diameter of 0.215", and a total of 13 coils, expertly designed to deliver consistent compression characteristics including a rate of 10 lbs/in.

The 3510CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 3510 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
