351-BCS - 1.38" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

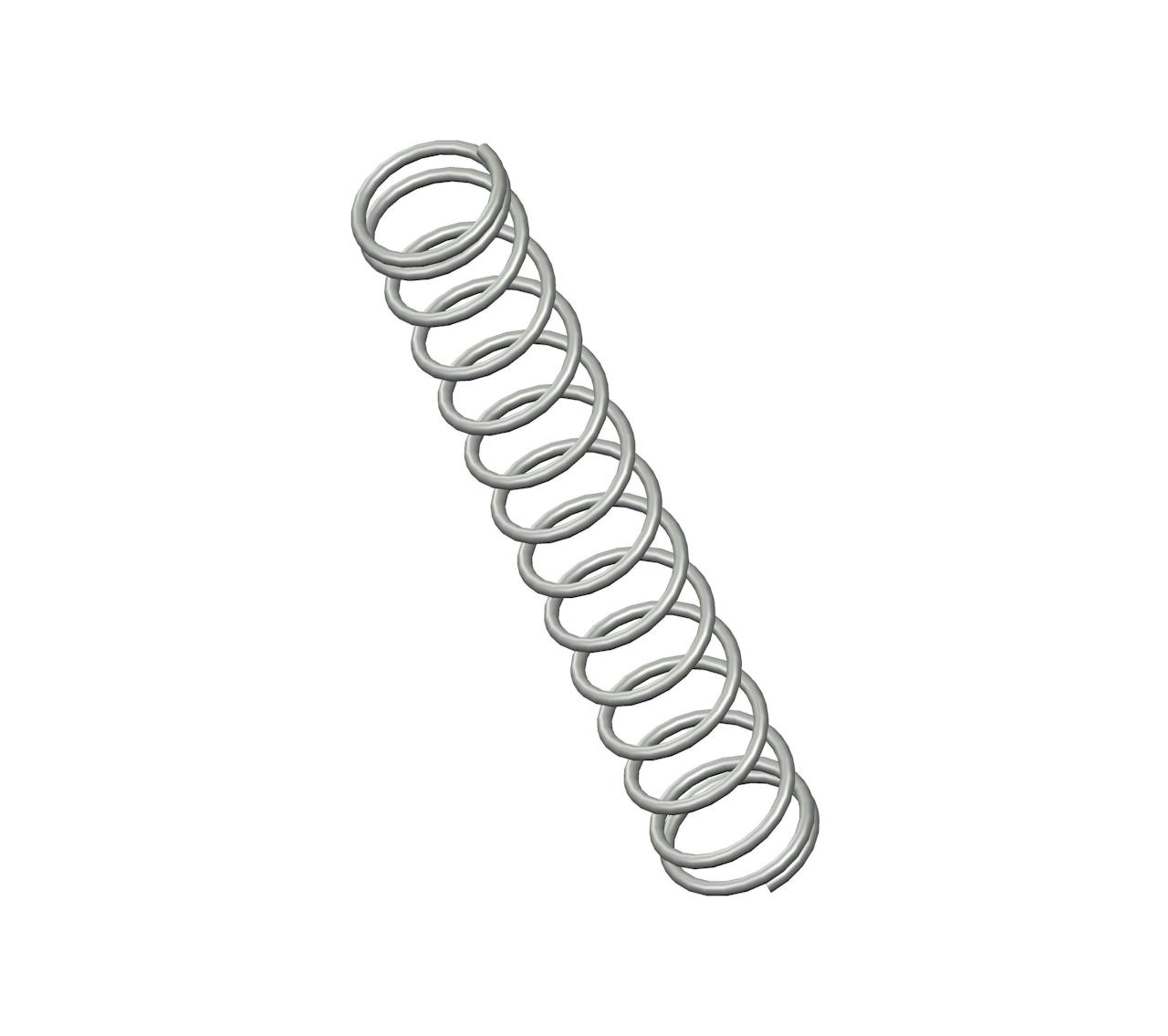

Compression spring manufactured from music wire with 14.3 coils and closed ends. This spring features an O.D. of 0.219", and an I.D. of 0.179".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 351-B |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 1.38 in |
| Inside Diameter | 0.179 in |
| Material | Music Wire |
| Outside Diameter | 0.219 in |
| Part Type | Standard |
| Rate | 2.4 lbs/in |
| SKU | 351-BCS |
| Solid Length | 0.31 in |
| Suggested Max Deflection | 0.91 in |
| Suggested Max Load | 2.2 lbf |
| Total Coils | 14.3 |
| Wire Diameter | 0.02 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 351-B |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 35.05 mm |
| Inside Diameter | 4.55 mm |
| Material | Music Wire |
| Outside Diameter | 5.56 mm |
| Part Type | Standard |
| Rate | 0.42 N/mm |
| SKU | 351-BCS |
| Solid Length | 7.87 mm |
| Suggested Max Deflection | 23.11 mm |
| Suggested Max Load | 9.79 N |
| Total Coils | 14.3 |
| Wire Diameter | 0.51 mm |
The 351-B compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The 351-BCS compression spring is designed with a free length of 1" total of 10.8 coils, and a rate of 3.3 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 351-B spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The 351-BCS compression spring is designed with a free length of 1" total of 10.8 coils, and a rate of 3.3 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 351-B spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
