Century Spring

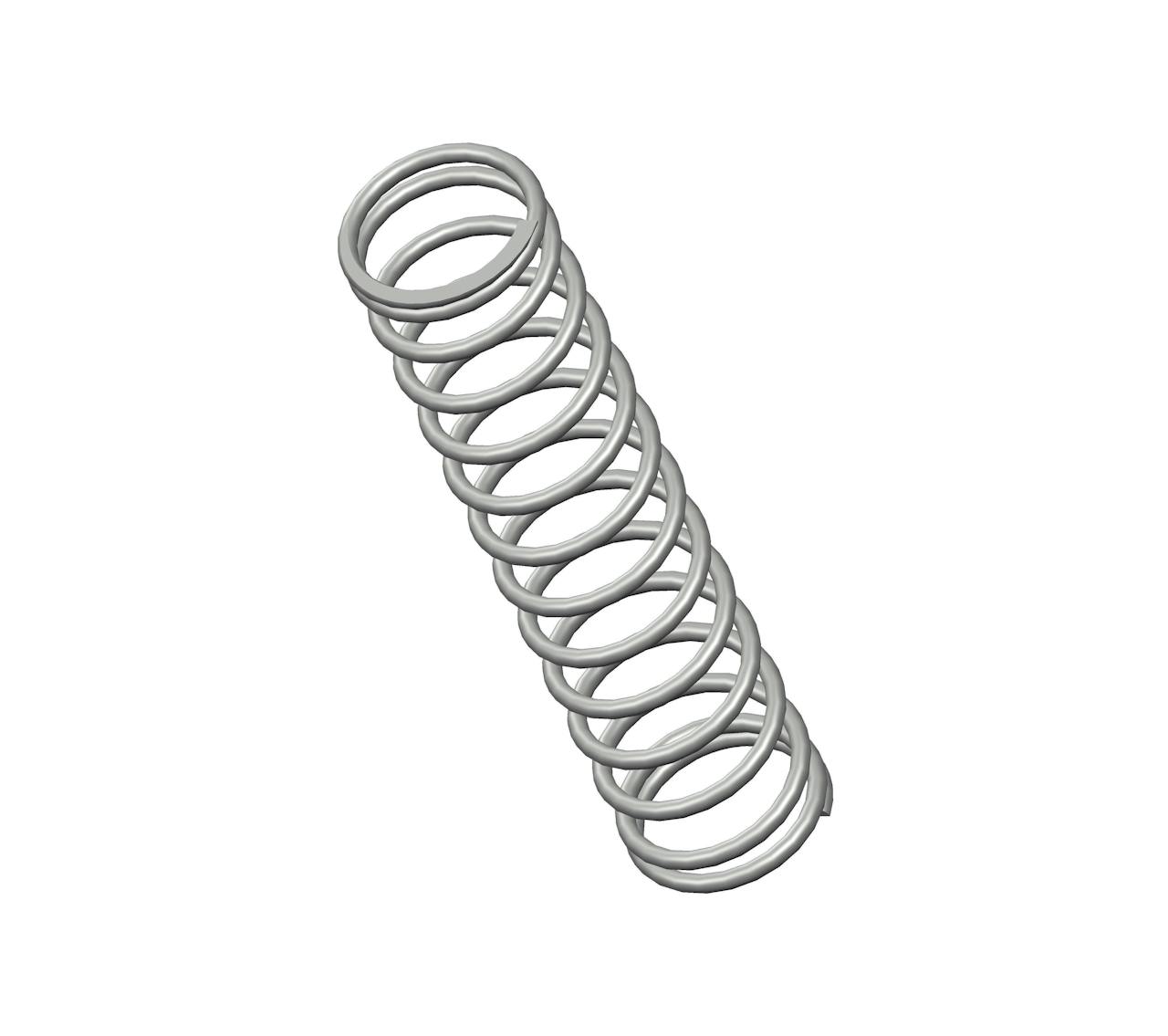

3483CS - 10.8" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 14 coils and closed & ground ends. This spring features an O.D. of 2.437", and an I.D. of 1.987".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 3483
Ends Closed & Ground
Finish Zinc
Free Length 10.8 in
Inside Diameter 1.987 in
Material Spring Steel
Outside Diameter 2.437 in
Part Type Standard
Rate 28 lbs/in
SKU 3483CS
Solid Length 3.15 in
Suggested Max Deflection 4.6 in
Suggested Max Load 130 lbf
Total Coils 14
Wire Diameter 0.225 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 3483
Ends Closed & Ground
Finish Zinc
Free Length 274.32 mm
Inside Diameter 50.47 mm
Material Spring Steel
Outside Diameter 61.9 mm
Part Type Standard
Rate 4.9 N/mm
SKU 3483CS
Solid Length 80.01 mm
Suggested Max Deflection 116.84 mm
Suggested Max Load 578.24 N
Total Coils 14
Wire Diameter 5.72 mm
The 3483CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.225" diameter spring steel, the 3483 spring design exhibits reliable strength across its 14 active coils, withstanding repeated compression cycles with a maximum load of 130 lbf without succumbing to fatigue.

We manufacture the 3483 design to provide a compression spring that is 10.8" long at rest and provides a consistent rate of 28 lbs/in along its recommended maximum of 4.6" deflection. For best results, your application should fully accommodate the inner (1.987") and outer (2.437") diameters of this spring and be designed for its closed & ground end configuration.
