Century Spring

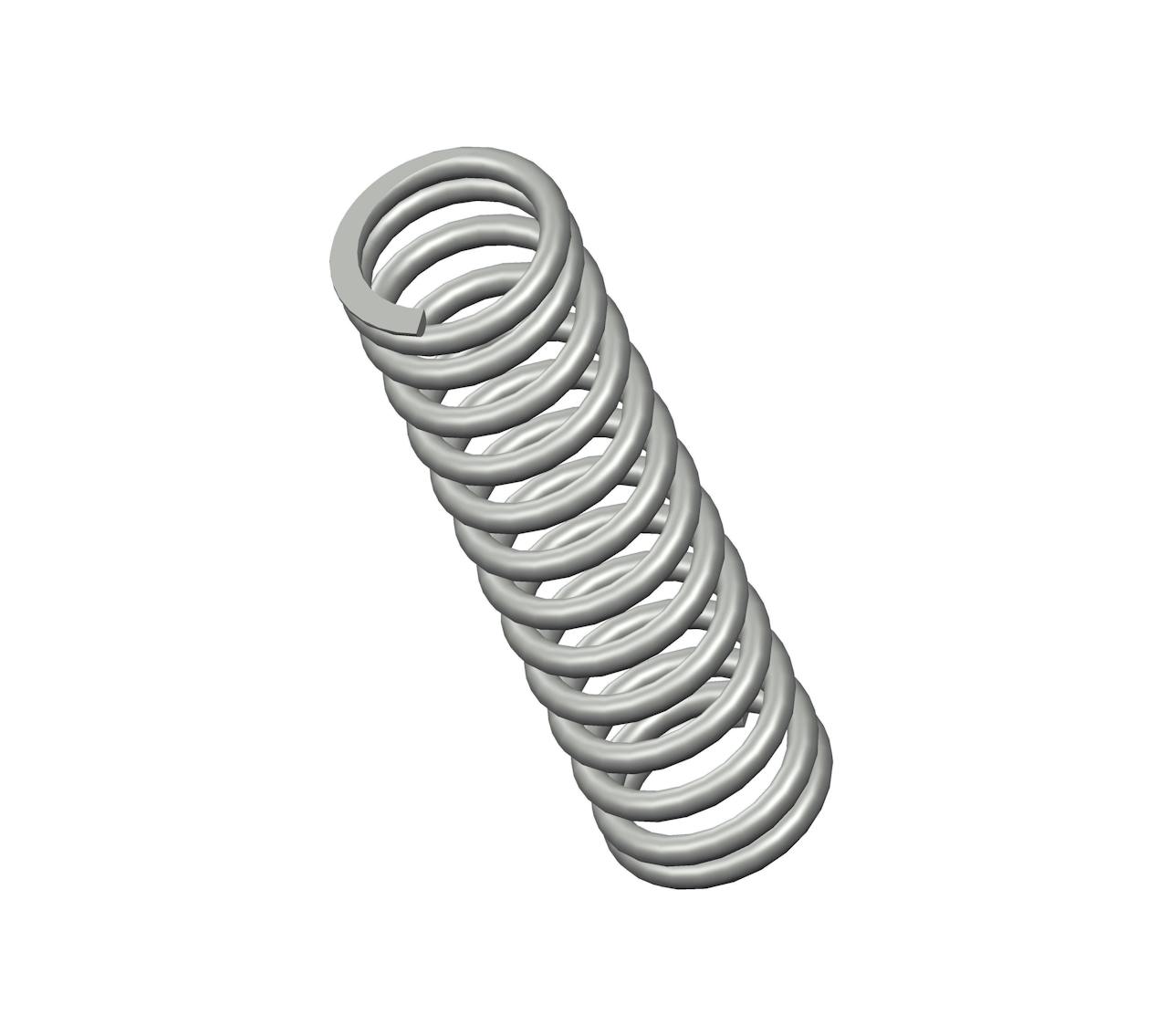

3374CS - 4" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 13.5 coils and closed & ground ends. This spring features an O.D. of 1.094", and an I.D. of 0.814".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 3374
Ends Closed & Ground
Finish Gold Iridite
Free Length 4 in
Inside Diameter 0.814 in
Material Spring Steel
Outside Diameter 1.094 in
Part Type Standard
Rate 55 lbs/in
SKU 3374CS
Solid Length 1.89 in
Suggested Max Deflection 1.4 in
Suggested Max Load 76 lbf
Total Coils 13.5
Wire Diameter 0.14 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 3374
Ends Closed & Ground
Finish Gold Iridite
Free Length 101.6 mm
Inside Diameter 20.68 mm
Material Spring Steel
Outside Diameter 27.79 mm
Part Type Standard
Rate 9.63 N/mm
SKU 3374CS
Solid Length 48.01 mm
Suggested Max Deflection 35.56 mm
Suggested Max Load 338.05 N
Total Coils 13.5
Wire Diameter 3.56 mm
The 3374CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.14" diameter spring steel, the 3374 spring design exhibits reliable strength across its 13.5 active coils, withstanding repeated compression cycles with a maximum load of 76 lbf without succumbing to fatigue.

We manufacture the 3374 design to provide a compression spring that is 4" long at rest and provides a consistent rate of 55 lbs/in along its recommended maximum of 1.4" deflection. For best results, your application should fully accommodate the inner (0.814") and outer (1.094") diameters of this spring and be designed for its closed & ground end configuration.
