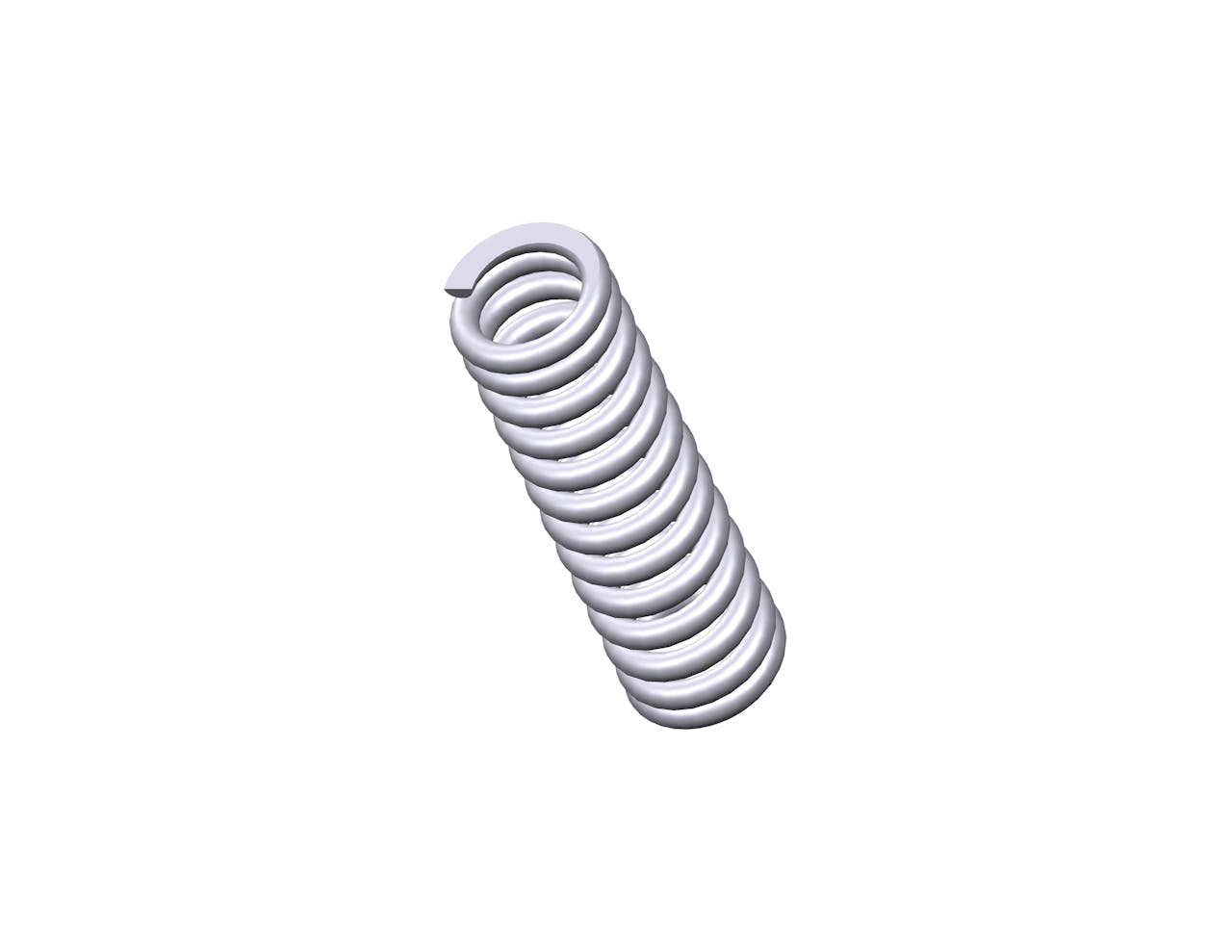

3361CS - 2.69" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 13 coils and closed & ground ends. This spring features an O.D. of 0.781", and an I.D. of 0.511".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 3361 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 2.69 in |
| Inside Diameter | 0.511 in |
| Material | Spring Steel |
| Outside Diameter | 0.781 in |
| Part Type | Standard |
| Rate | 161 lbs/in |
| SKU | 3361CS |
| Solid Length | 1.76 in |
| Suggested Max Deflection | 0.57 in |
| Suggested Max Load | 92 lbf |
| Total Coils | 13 |
| Wire Diameter | 0.135 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 3361 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 68.33 mm |
| Inside Diameter | 12.98 mm |
| Material | Spring Steel |
| Outside Diameter | 19.84 mm |
| Part Type | Standard |
| Rate | 28.19 N/mm |
| SKU | 3361CS |
| Solid Length | 44.7 mm |
| Suggested Max Deflection | 14.48 mm |
| Suggested Max Load | 409.22 N |
| Total Coils | 13 |
| Wire Diameter | 3.43 mm |
The compression spring 3361CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the 3361 compression spring design exhibits exceptional tensile strength and resilience.
The 3361 design is manufactured with a free length of 2.69", with an outer diameter of 0.781", an inner diameter of 0.511", and a total of 13 coils, expertly designed to deliver consistent compression characteristics including a rate of 161 lbs/in.
The 3361CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 3361 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 3361 design is manufactured with a free length of 2.69", with an outer diameter of 0.781", an inner diameter of 0.511", and a total of 13 coils, expertly designed to deliver consistent compression characteristics including a rate of 161 lbs/in.
The 3361CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 3361 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
