Century Spring

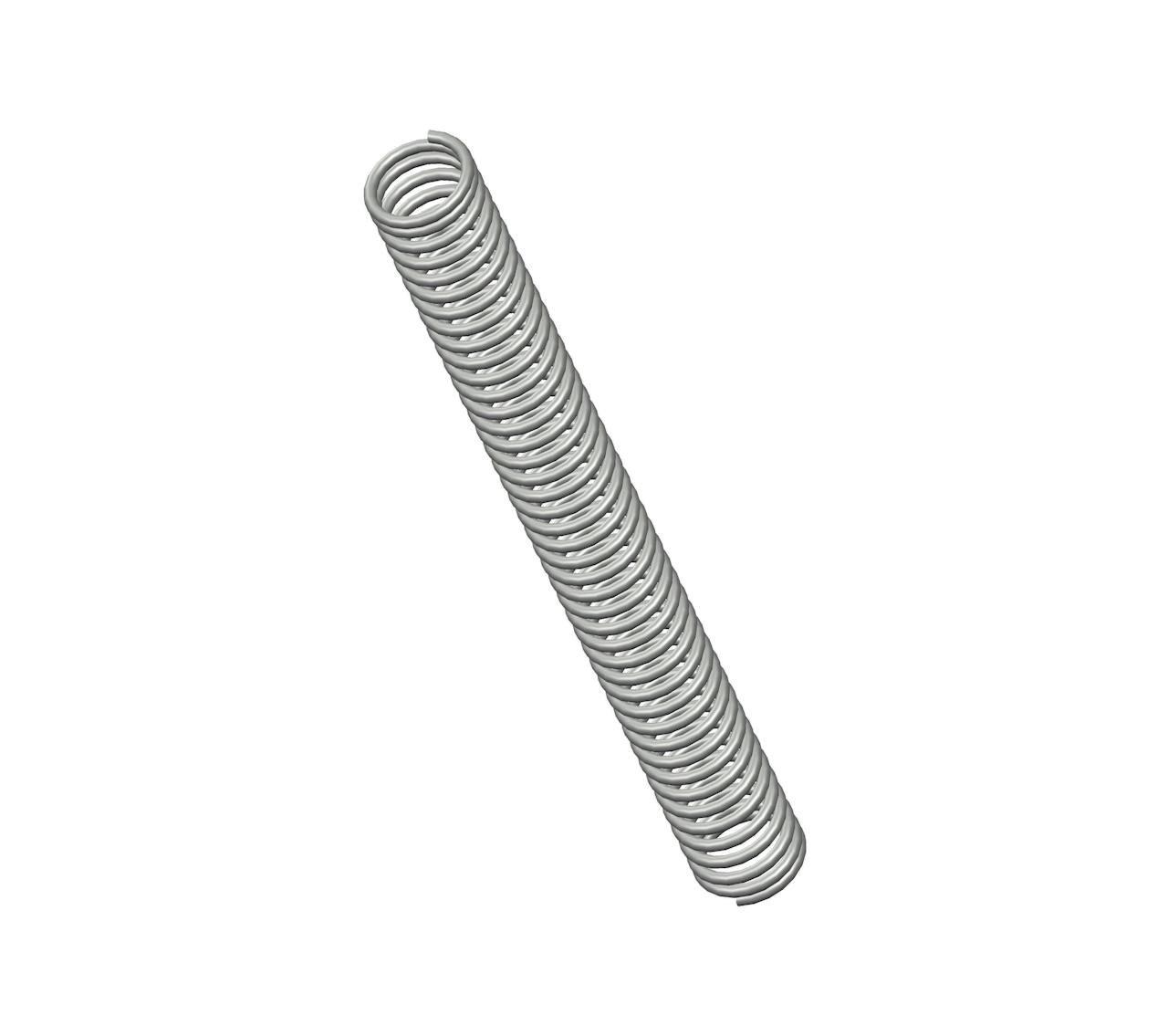

3332CS - 6" Hard Drawn Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from hard drawn with 42.5 coils and closed ends. This spring features an O.D. of 0.64", and an I.D. of 0.496".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 3332
Ends Closed
Finish Zinc
Free Length 6 in
Inside Diameter 0.496 in
Material Spring Steel
Outside Diameter 0.64 in
Part Type Standard
Rate 5.2 lbs/in
SKU 3332CS
Solid Length 3.13 in
Suggested Max Deflection 2.9 in
Suggested Max Load 15 lbf
Total Coils 42.5
Wire Diameter 0.072 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 3332
Ends Closed
Finish Zinc
Free Length 152.4 mm
Inside Diameter 12.6 mm
Material Spring Steel
Outside Diameter 16.26 mm
Part Type Standard
Rate 0.91 N/mm
SKU 3332CS
Solid Length 79.5 mm
Suggested Max Deflection 73.66 mm
Suggested Max Load 66.72 N
Total Coils 42.5
Wire Diameter 1.83 mm
The 3332CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.072" diameter hard drawn, the 3332 spring design exhibits reliable strength across its 42.5 active coils, withstanding repeated compression cycles with a maximum load of 15 lbf without succumbing to fatigue.

We manufacture the 3332 design to provide a compression spring that is 6" long at rest and provides a consistent rate of 5.2 lbs/in along its recommended maximum of 2.9" deflection. For best results, your application should fully accommodate the inner (0.496") and outer (0.64") diameters of this spring and be designed for its closed end configuration.
