3292CS - 5.5" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

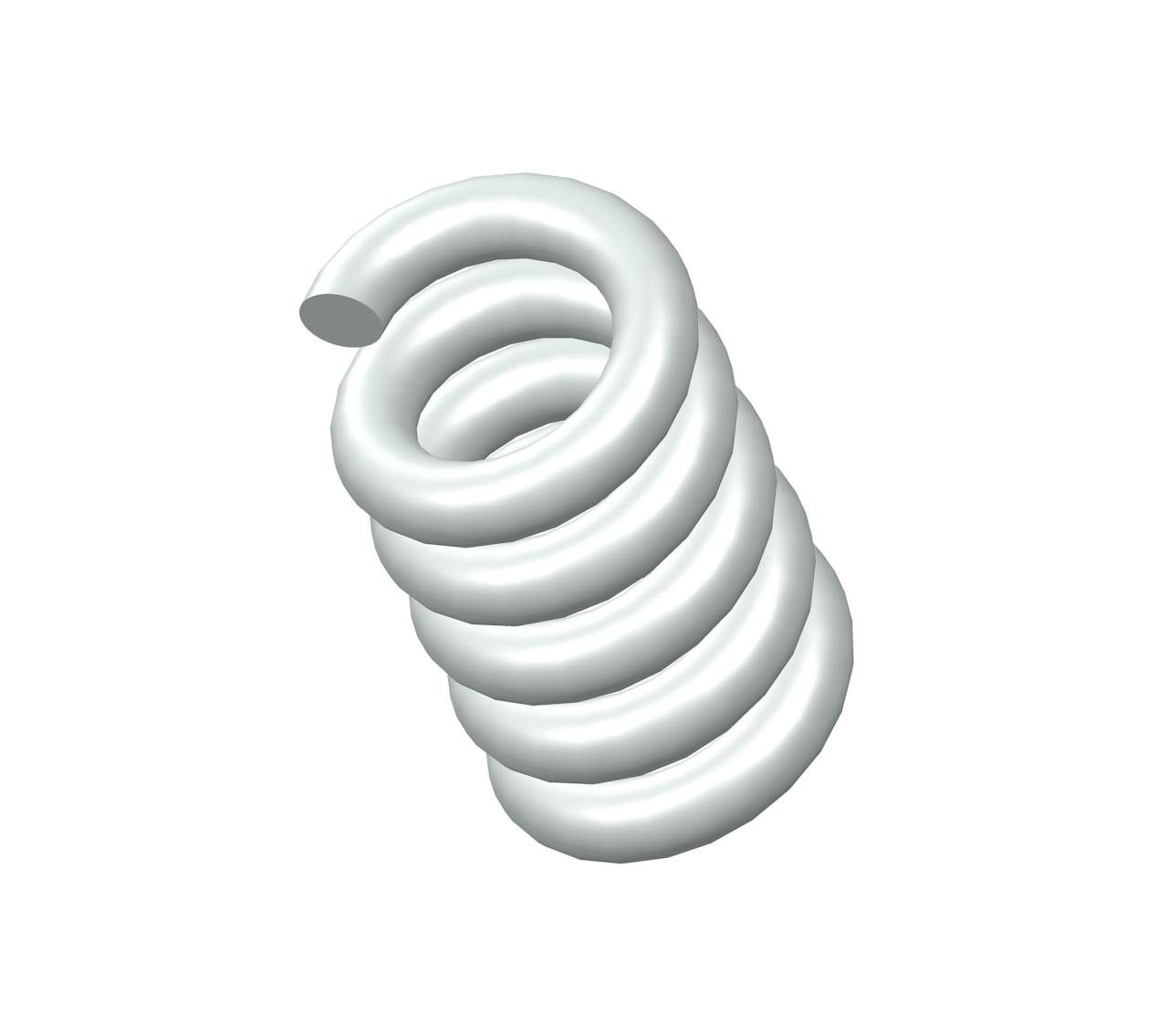

Compression spring manufactured from spring steel with 14 coils and closed & ground ends. This spring features an O.D. of 1.188", and an I.D. of 0.834".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 3292
Ends Closed & Ground
Finish Zinc
Free Length 5.5 in
Inside Diameter 0.834 in
Material Spring Steel
Outside Diameter 1.188 in
Part Type Standard
Rate 114 lbs/in
SKU 3292CS
Solid Length 2.48 in
Suggested Max Deflection 1.2 in
Suggested Max Load 136 lbf
Total Coils 14
Wire Diameter 0.177 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 3292
Ends Closed & Ground
Finish Zinc
Free Length 139.7 mm
Inside Diameter 21.18 mm
Material Spring Steel
Outside Diameter 30.18 mm
Part Type Standard
Rate 19.96 N/mm
SKU 3292CS
Solid Length 62.99 mm
Suggested Max Deflection 30.48 mm
Suggested Max Load 604.93 N
Total Coils 14
Wire Diameter 4.5 mm
The 3292CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.177" diameter spring steel, the 3292 spring design exhibits reliable strength across its 14 active coils, withstanding repeated compression cycles with a maximum load of 136 lbf without succumbing to fatigue.

We manufacture the 3292 design to provide a compression spring that is 5.5" long at rest and provides a consistent rate of 114 lbs/in along its recommended maximum of 1.2" deflection. For best results, your application should fully accommodate the inner (0.834") and outer (1.188") diameters of this spring and be designed for its closed & ground end configuration.
