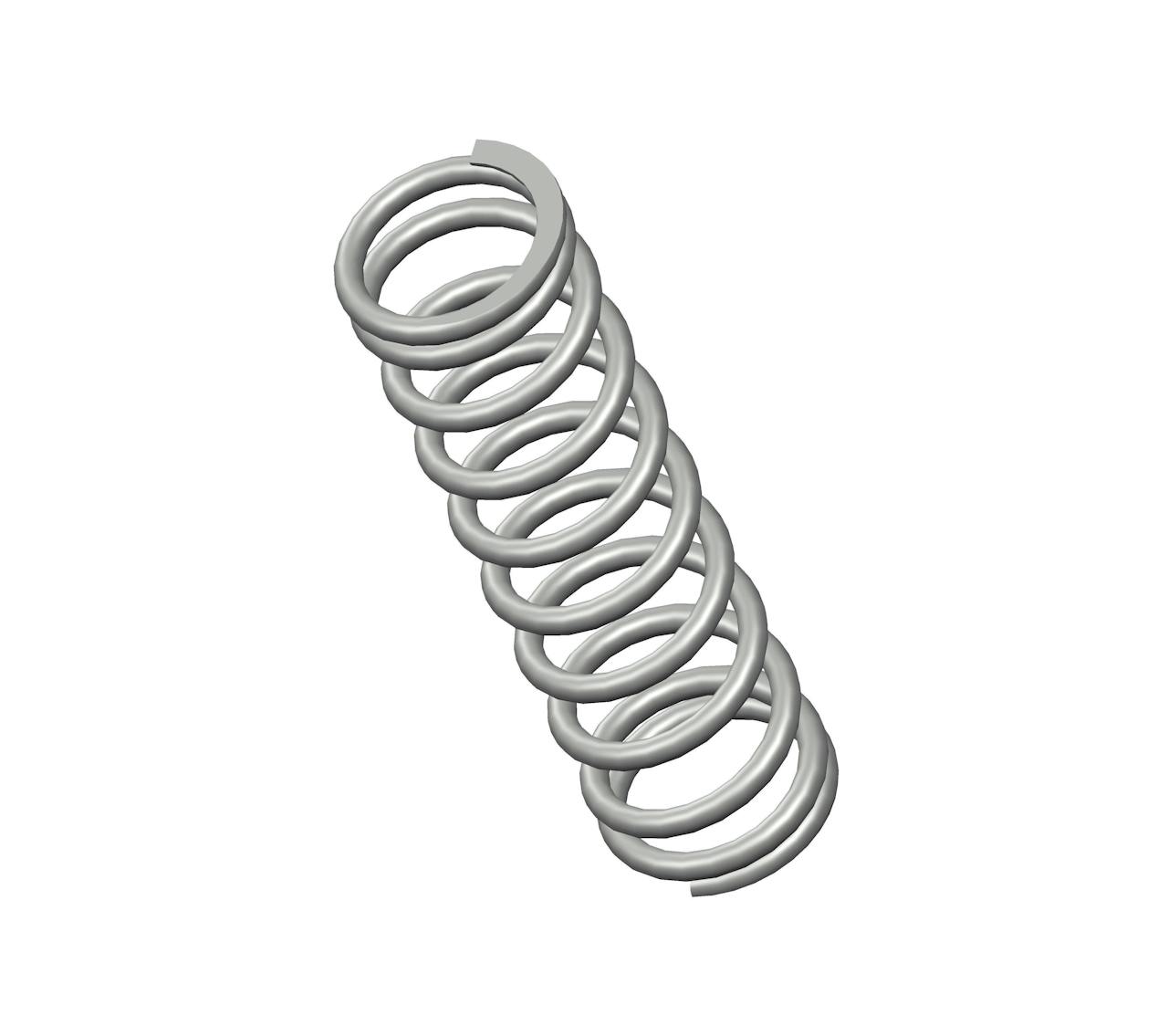

3265CS - 1.31" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from spring steel with 10.5 coils and closed & ground ends. This spring features an O.D. of 0.36", and an I.D. of 0.274".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 3265
Ends Closed & Ground
Finish Zinc
Free Length 1.31 in
Inside Diameter 0.274 in
Material Spring Steel
Outside Diameter 0.36 in
Part Type Standard
Rate 18 lbs/in
SKU 3265CS
Solid Length 0.45 in
Suggested Max Deflection 0.46 in
Suggested Max Load 8.4 lbf
Total Coils 10.5
Wire Diameter 0.043 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 3265
Ends Closed & Ground
Finish Zinc
Free Length 33.27 mm
Inside Diameter 6.96 mm
Material Spring Steel
Outside Diameter 9.14 mm
Part Type Standard
Rate 3.15 N/mm
SKU 3265CS
Solid Length 11.43 mm
Suggested Max Deflection 11.68 mm
Suggested Max Load 37.36 N
Total Coils 10.5
Wire Diameter 1.09 mm
The 3265CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.043" diameter spring steel, the 3265 spring design exhibits reliable strength across its 10.5 active coils, withstanding repeated compression cycles with a maximum load of 8.4 lbf without succumbing to fatigue.

We manufacture the 3265 design to provide a compression spring that is 1.31" long at rest and provides a consistent rate of 18 lbs/in along its recommended maximum of 0.46" deflection. For best results, your application should fully accommodate the inner (0.274") and outer (0.36") diameters of this spring and be designed for its closed & ground end configuration.
