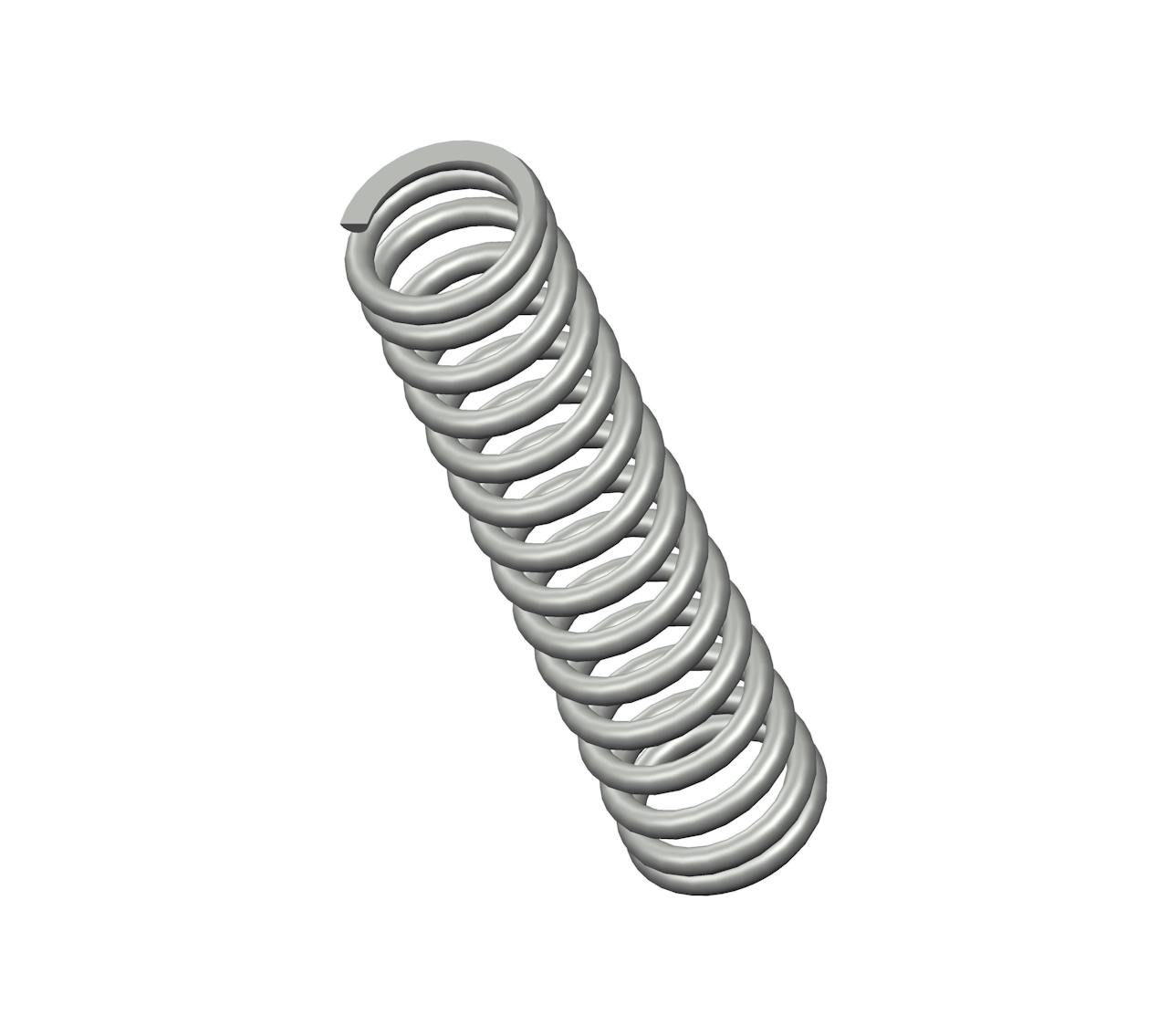

3261CS - 9" Oil Tempered Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from oil tempered with 15 coils and closed & ground ends. This spring features an O.D. of 2.062", and an I.D. of 1.496".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 3261 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 9 in |
| Inside Diameter | 1.496 in |
| Material | Oil Tempered |
| Outside Diameter | 2.062 in |
| Part Type | Standard |
| Rate | 126 lbs/in |
| SKU | 3261CS |
| Solid Length | 4.25 in |
| Suggested Max Deflection | 2.6 in |
| Suggested Max Load | 323 lbf |
| Total Coils | 15 |
| Wire Diameter | 0.283 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 3261 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 228.6 mm |
| Inside Diameter | 38 mm |
| Material | Oil Tempered |
| Outside Diameter | 52.37 mm |
| Part Type | Standard |
| Rate | 22.06 N/mm |
| SKU | 3261CS |
| Solid Length | 107.95 mm |
| Suggested Max Deflection | 66.04 mm |
| Suggested Max Load | 1436.7 N |
| Total Coils | 15 |
| Wire Diameter | 7.19 mm |
The 3261 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality oil tempered and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The 3261CS compression spring is designed with a free length of 5.25" total of 14 coils, and a rate of 114 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 3261 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The 3261CS compression spring is designed with a free length of 5.25" total of 14 coils, and a rate of 114 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 3261 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
