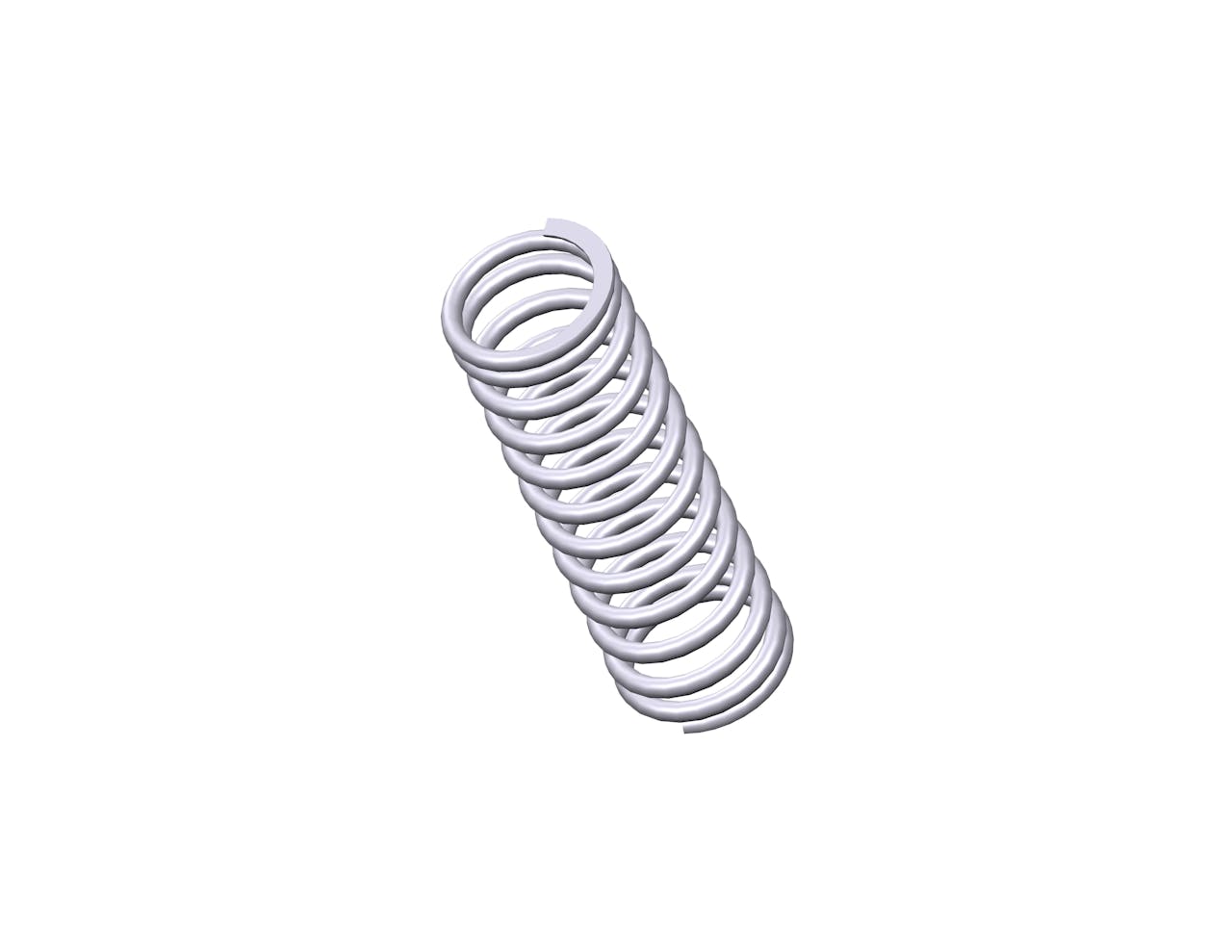

3244CS - 5" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 12.5 coils and closed & ground ends. This spring features an O.D. of 1.562", and an I.D. of 1.202".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 3244 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 5 in |
| Inside Diameter | 1.202 in |
| Material | Spring Steel |
| Outside Diameter | 1.562 in |
| Part Type | Standard |
| Rate | 54 lbs/in |
| SKU | 3244CS |
| Solid Length | 2.25 in |
| Suggested Max Deflection | 2 in |
| Suggested Max Load | 106 lbf |
| Total Coils | 12.5 |
| Wire Diameter | 0.18 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 3244 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 127 mm |
| Inside Diameter | 30.53 mm |
| Material | Spring Steel |
| Outside Diameter | 39.67 mm |
| Part Type | Standard |
| Rate | 9.46 N/mm |
| SKU | 3244CS |
| Solid Length | 57.15 mm |
| Suggested Max Deflection | 50.8 mm |
| Suggested Max Load | 471.49 N |
| Total Coils | 12.5 |
| Wire Diameter | 4.57 mm |
The 3244CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.18" diameter spring steel, the 3244 spring design exhibits reliable strength across its 12.5 active coils, withstanding repeated compression cycles with a maximum load of 106 lbf without succumbing to fatigue.
We manufacture the 3244 design to provide a compression spring that is 5" long at rest and provides a consistent rate of 54 lbs/in along its recommended maximum of 2" deflection. For best results, your application should fully accommodate the inner (1.202") and outer (1.562") diameters of this spring and be designed for its closed & ground end configuration.
We manufacture the 3244 design to provide a compression spring that is 5" long at rest and provides a consistent rate of 54 lbs/in along its recommended maximum of 2" deflection. For best results, your application should fully accommodate the inner (1.202") and outer (1.562") diameters of this spring and be designed for its closed & ground end configuration.
