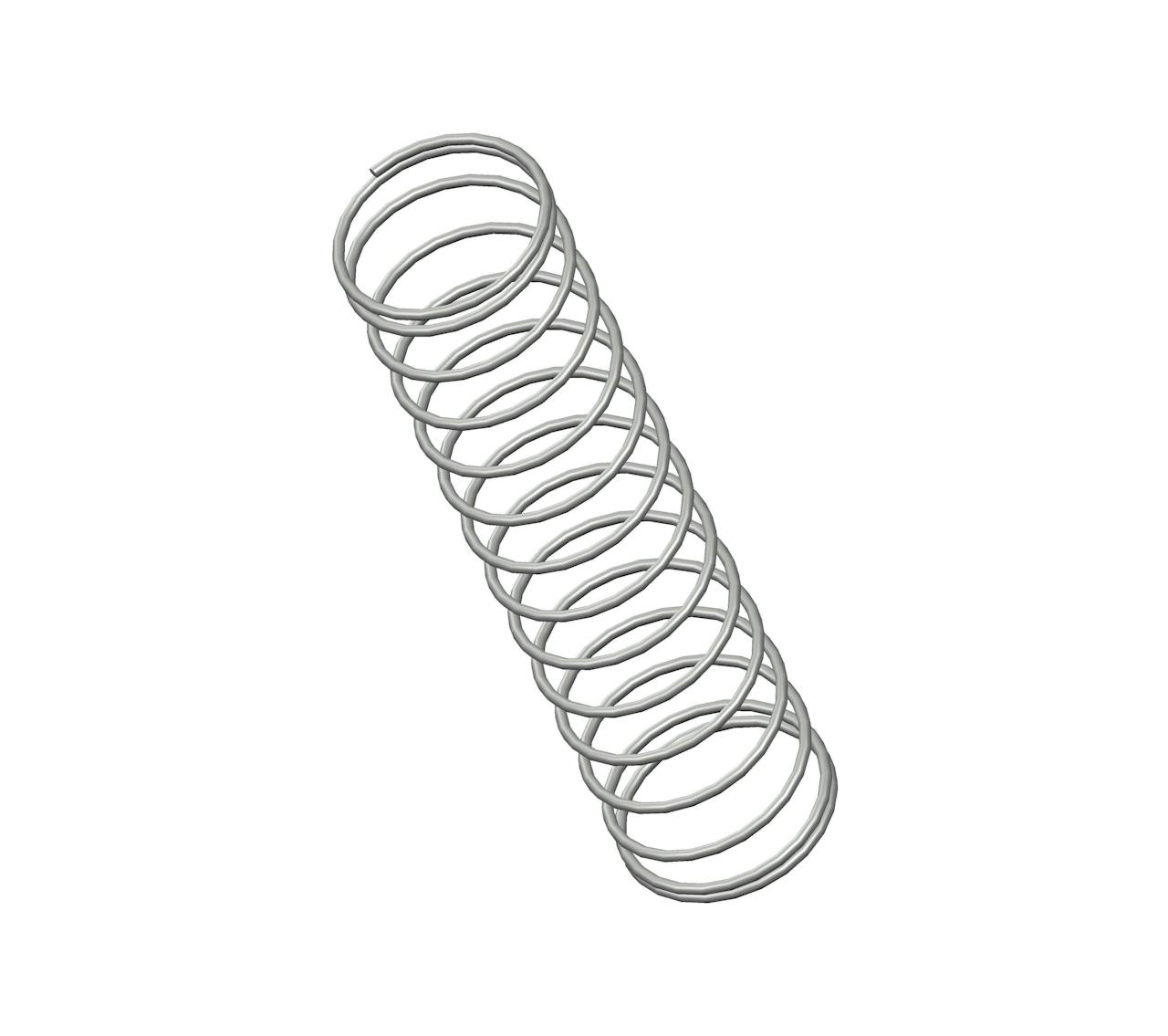

3200CS - 2.38" Music Wire Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from music wire with 14.8 coils and closed ends. This spring features an O.D. of 0.578", and an I.D. of 0.518".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 3200
Ends Closed
Finish Zinc
Free Length 2.38 in
Inside Diameter 0.518 in
Material Music Wire
Outside Diameter 0.578 in
Part Type Standard
Rate 0.55 lbs/in
SKU 3200CS
Solid Length 0.47 in
Suggested Max Deflection 1.9 in
Suggested Max Load 1.1 lbf
Total Coils 14.8
Wire Diameter 0.03 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 3200
Ends Closed
Finish Zinc
Free Length 60.45 mm
Inside Diameter 13.16 mm
Material Music Wire
Outside Diameter 14.68 mm
Part Type Standard
Rate 0.1 N/mm
SKU 3200CS
Solid Length 11.94 mm
Suggested Max Deflection 48.26 mm
Suggested Max Load 4.89 N
Total Coils 14.8
Wire Diameter 0.76 mm
The 3200CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.03" diameter music wire, the 3200 spring design exhibits reliable strength across its 14.8 active coils, withstanding repeated compression cycles with a maximum load of 1.1 lbf without succumbing to fatigue.

We manufacture the 3200 design to provide a compression spring that is 2.38" long at rest and provides a consistent rate of 0.55 lbs/in along its recommended maximum of 1.9" deflection. For best results, your application should fully accommodate the inner (0.518") and outer (0.578") diameters of this spring and be designed for its closed end configuration.
