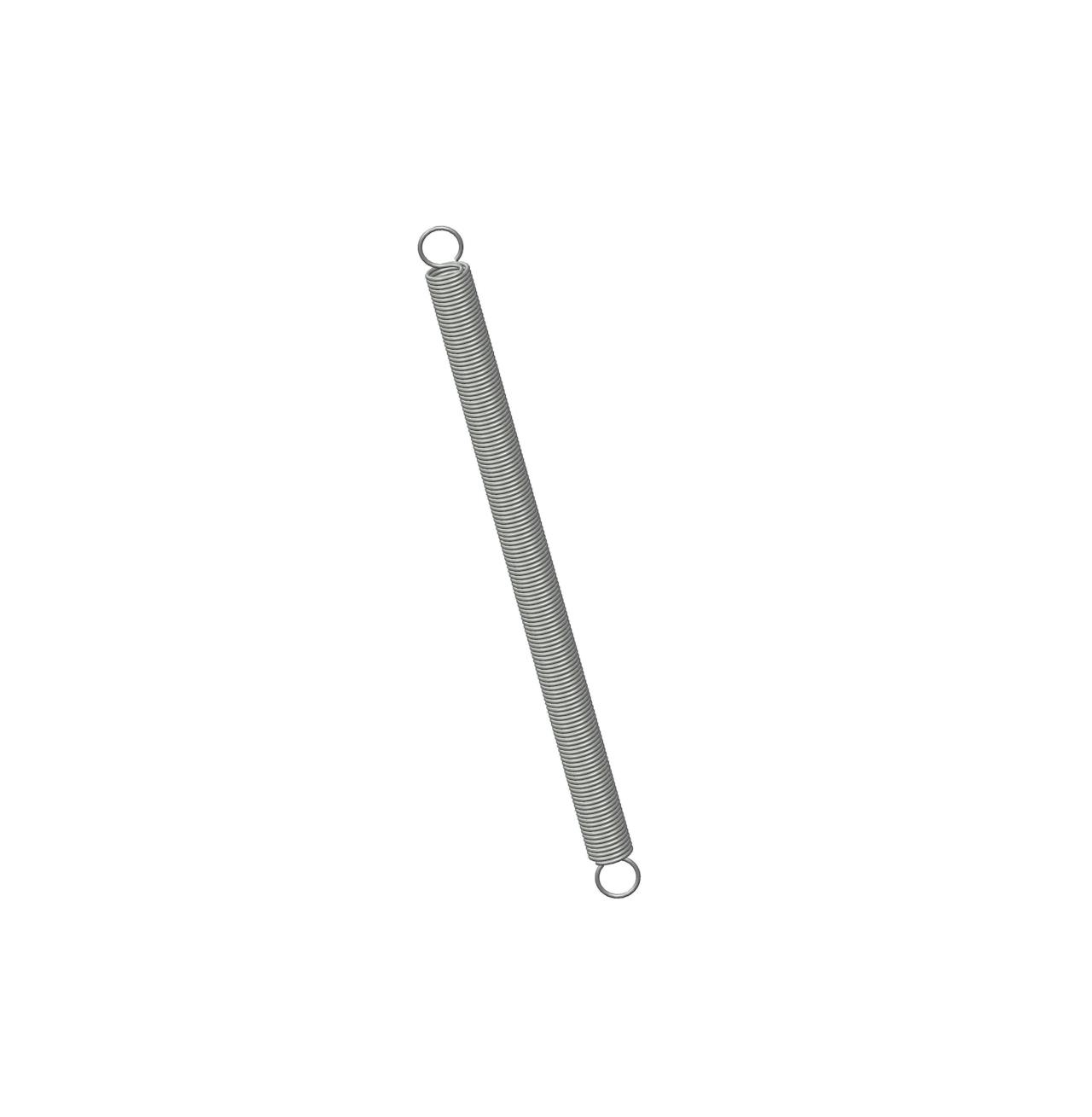

314CS - 5 Inch Music Wire Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.312 Inch and an initial tension of 0.5 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 314
Ends Machine Hook
Finish Zinc
Initial Tension 0.5 lb
Length 5 in
Material Music Wire
Outside Diameter 0.312 in
Part Type Standard
Rate 0.48 lbs/in
SKU 314CS
Sugg Max Deflection 9.8 in
Sugg Max Load 5.2 lbf
Wire Diameter 0.032 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 314
Ends Machine Hook
Finish Zinc
Initial Tension 0.23 kg
Length 127 mm
Material Music Wire
Outside Diameter 7.92 mm
Part Type Standard
Rate 0.08 N/mm
SKU 314CS
Sugg Max Deflection 248.92 mm
Sugg Max Load 23.13 N
Wire Diameter 0.81 mm
