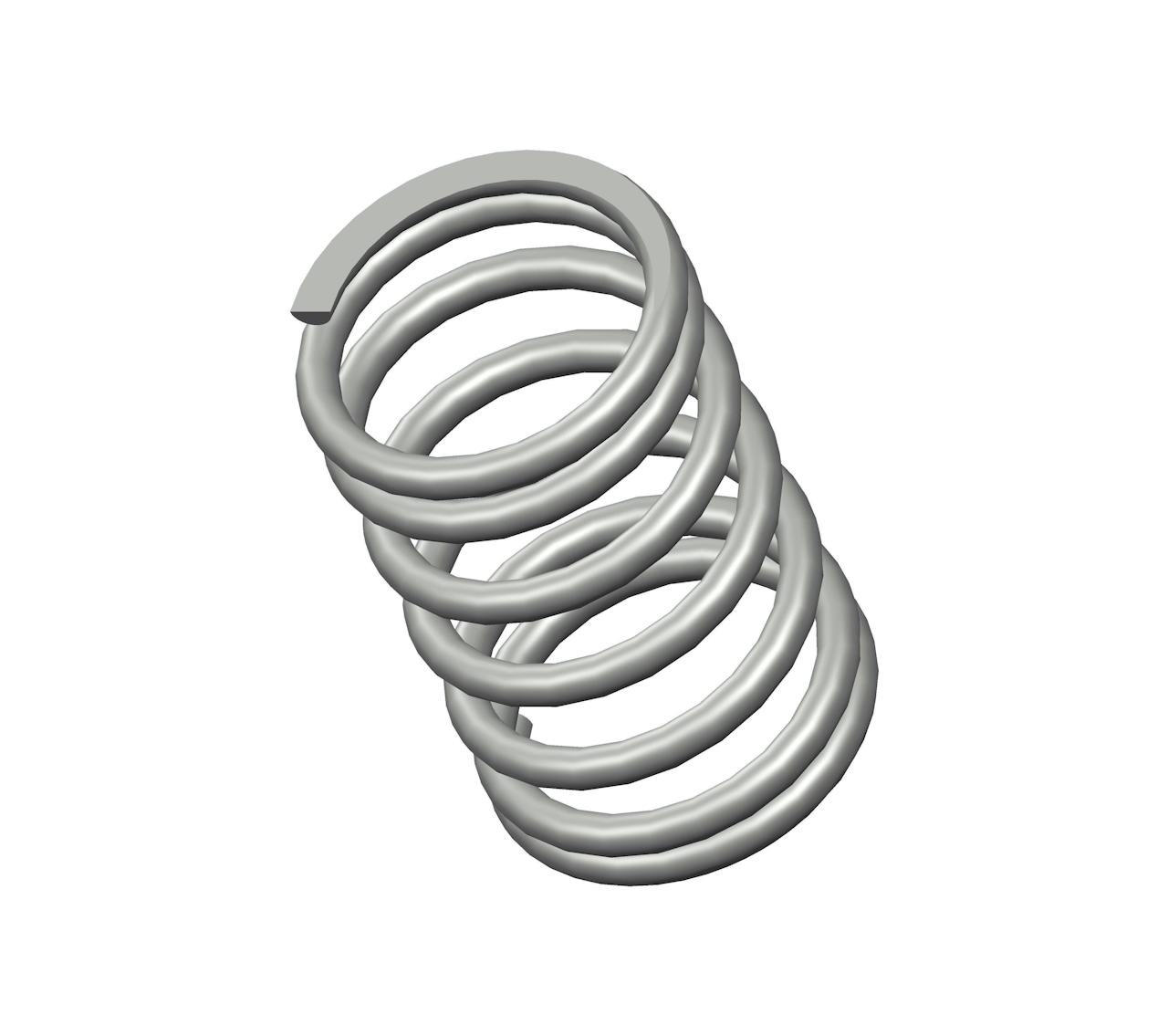

3091CS - 0.94" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 7 coils and closed & ground ends. This spring features an O.D. of 0.593", and an I.D. of 0.468".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 3091
Ends Closed & Ground
Finish Zinc
Free Length 0.94 in
Inside Diameter 0.468 in
Material Spring Steel
Outside Diameter 0.593 in
Part Type Standard
Rate 28 lbs/in
SKU 3091CS
Solid Length 0.44 in
Suggested Max Deflection 0.5 in
Suggested Max Load 14 lbf
Total Coils 7
Wire Diameter 0.0625 in
The 3091 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 3091CS compression spring is designed with a free length of 3" total of 18.8 coils, and a rate of 90 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 3091 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
