Century Spring

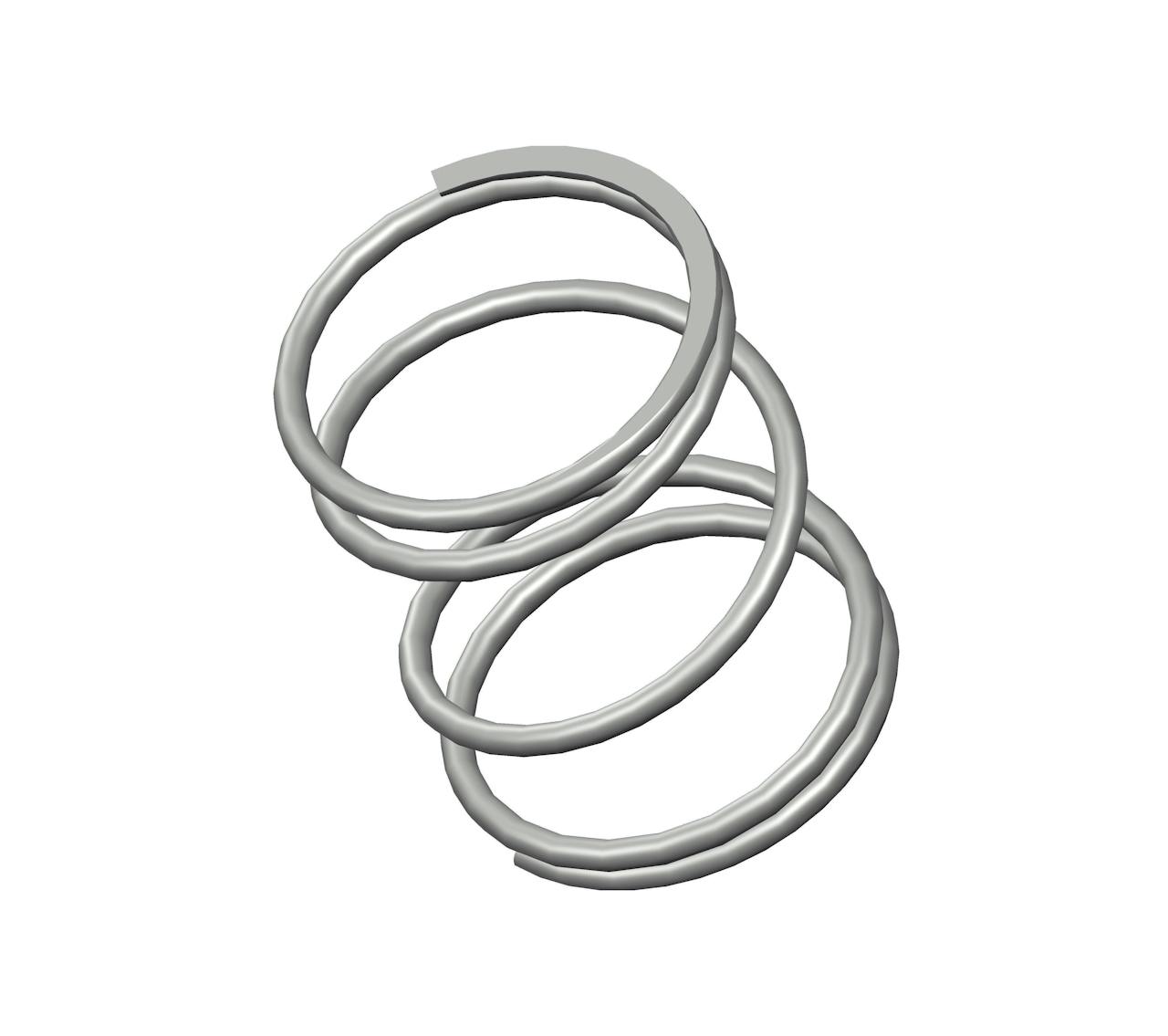

3034CS - 1.38" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 4.67 coils and closed ends. This spring features an O.D. of 1.094", and an I.D. of 0.944".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 3034
Ends Closed
Finish Zinc
Free Length 1.38 in
Inside Diameter 0.944 in
Material Spring Steel
Outside Diameter 1.094 in
Part Type Standard
Rate 16 lbs/in
SKU 3034CS
Solid Length 0.42 in
Suggested Max Deflection 0.83 in
Suggested Max Load 13 lbf
Total Coils 4.67
Wire Diameter 0.075 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 3034
Ends Closed
Finish Zinc
Free Length 35.05 mm
Inside Diameter 23.98 mm
Material Spring Steel
Outside Diameter 27.79 mm
Part Type Standard
Rate 2.8 N/mm
SKU 3034CS
Solid Length 10.67 mm
Suggested Max Deflection 21.08 mm
Suggested Max Load 57.82 N
Total Coils 4.67
Wire Diameter 1.91 mm
The 3034CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.075" diameter spring steel, the 3034 spring design exhibits reliable strength across its 4.67 active coils, withstanding repeated compression cycles with a maximum load of 13 lbf without succumbing to fatigue.

We manufacture the 3034 design to provide a compression spring that is 1.38" long at rest and provides a consistent rate of 16 lbs/in along its recommended maximum of 0.83" deflection. For best results, your application should fully accommodate the inner (0.944") and outer (1.094") diameters of this spring and be designed for its closed end configuration.
