2981CS - 1.09" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

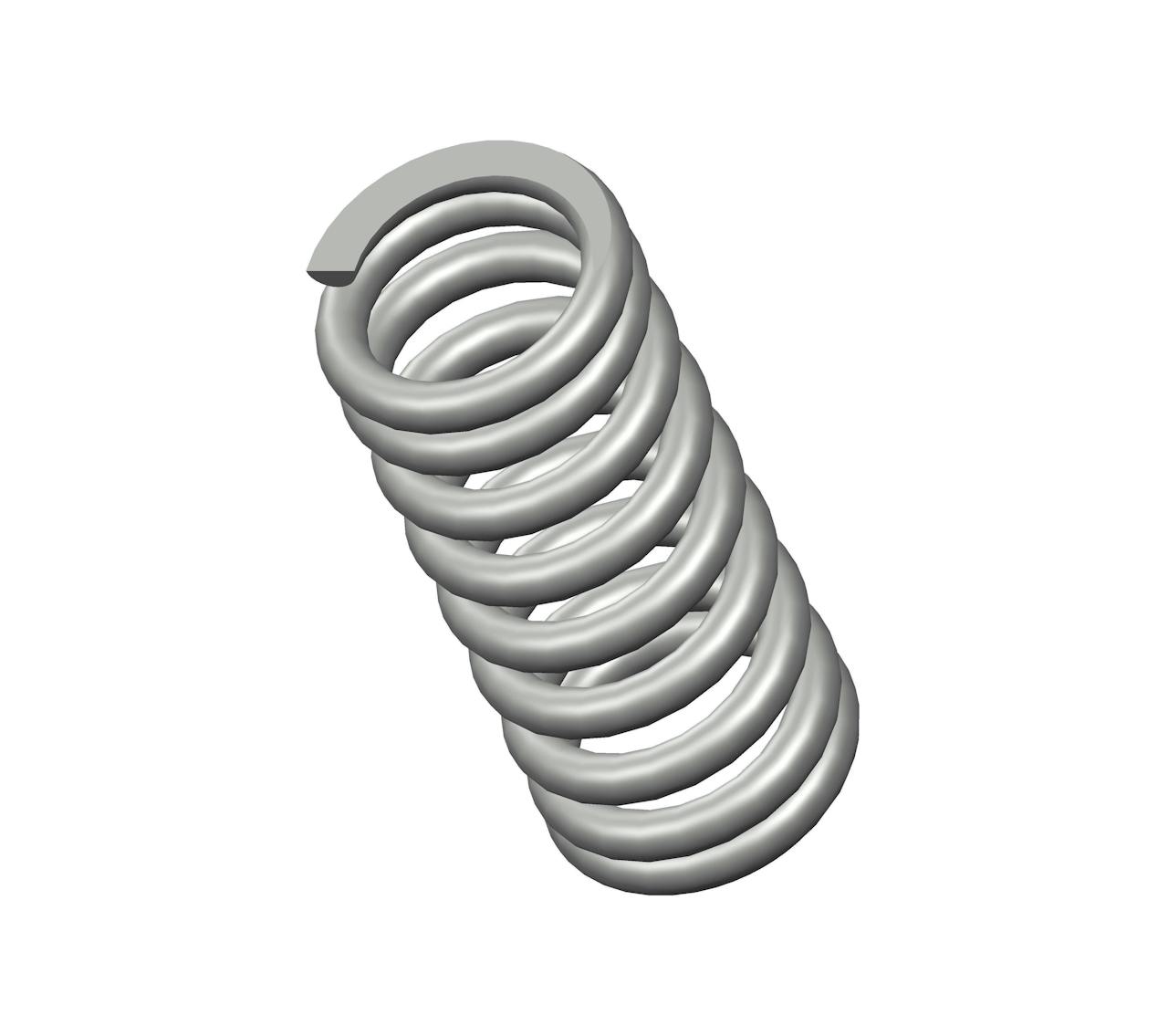

Compression spring manufactured from spring steel with 9 coils and closed & ground ends. This spring features an O.D. of 0.468", and an I.D. of 0.324".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 2981 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 1.09 in |
| Inside Diameter | 0.324 in |
| Material | Spring Steel |
| Outside Diameter | 0.468 in |
| Part Type | Standard |
| Rate | 89 lbs/in |
| SKU | 2981CS |
| Solid Length | 0.65 in |
| Suggested Max Deflection | 0.3 in |
| Suggested Max Load | 26 lbf |
| Total Coils | 9 |
| Wire Diameter | 0.072 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 2981 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 27.69 mm |
| Inside Diameter | 8.23 mm |
| Material | Spring Steel |
| Outside Diameter | 11.89 mm |
| Part Type | Standard |
| Rate | 15.58 N/mm |
| SKU | 2981CS |
| Solid Length | 16.51 mm |
| Suggested Max Deflection | 7.62 mm |
| Suggested Max Load | 115.65 N |
| Total Coils | 9 |
| Wire Diameter | 1.83 mm |
The compression spring 2981CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the 2981 compression spring design exhibits exceptional tensile strength and resilience.
The 2981 design is manufactured with a free length of 1.09", with an outer diameter of 0.468", an inner diameter of 0.324", and a total of 9 coils, expertly designed to deliver consistent compression characteristics including a rate of 89 lbs/in.
The 2981CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 2981 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 2981 design is manufactured with a free length of 1.09", with an outer diameter of 0.468", an inner diameter of 0.324", and a total of 9 coils, expertly designed to deliver consistent compression characteristics including a rate of 89 lbs/in.
The 2981CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 2981 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
