Century Spring

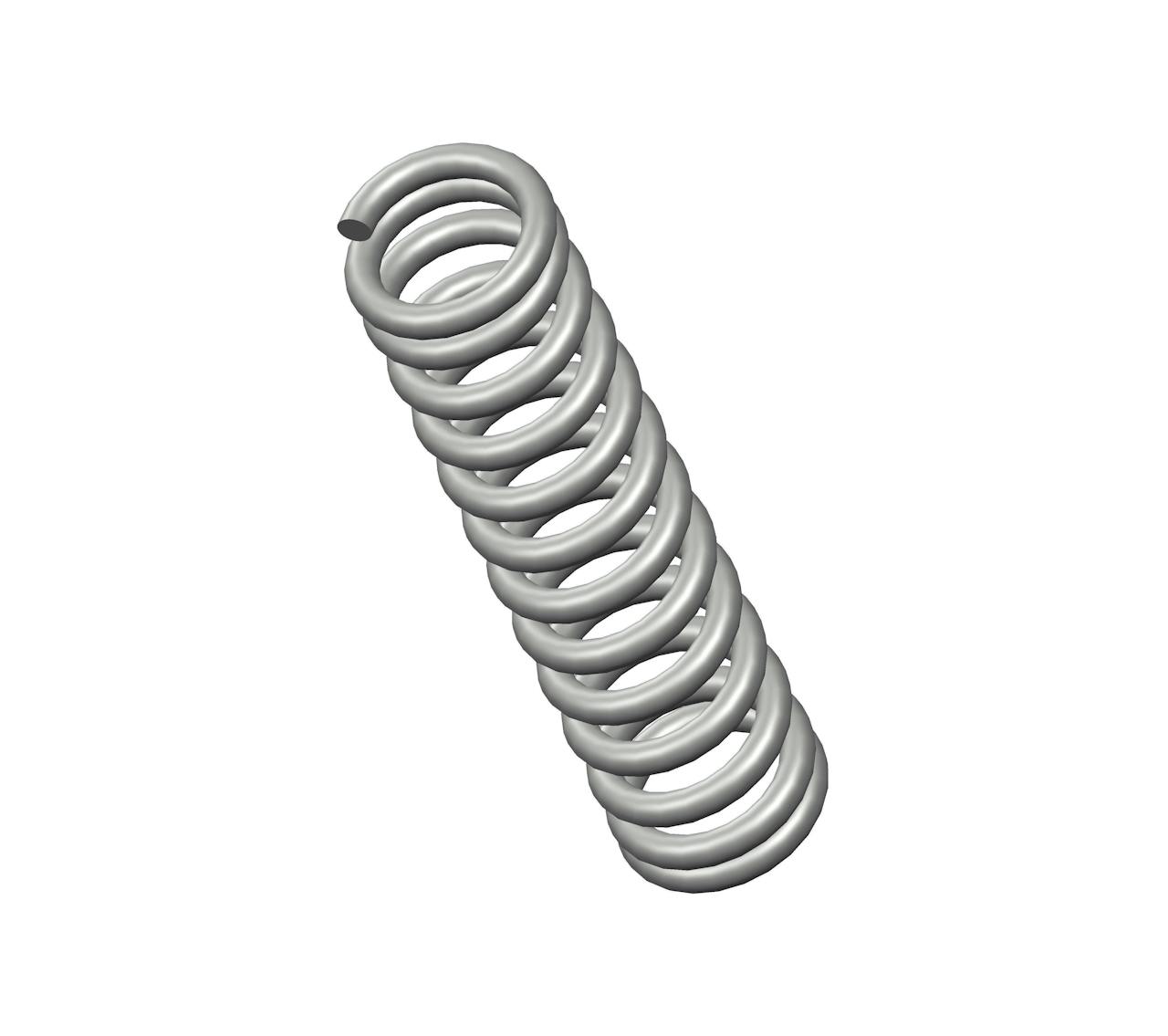

2935CS - 0.59" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 13 coils and closed ends. This spring features an O.D. of 0.14", and an I.D. of 0.096".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 2935
Ends Closed
Finish Zinc
Free Length 0.59 in
Inside Diameter 0.096 in
Material Music Wire
Outside Diameter 0.14 in
Part Type Standard
Rate 19 lbs/in
SKU 2935CS
Solid Length 0.31 in
Suggested Max Deflection 0.23 in
Suggested Max Load 4.4 lbf
Total Coils 13
Wire Diameter 0.022 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 2935
Ends Closed
Finish Zinc
Free Length 14.99 mm
Inside Diameter 2.44 mm
Material Music Wire
Outside Diameter 3.56 mm
Part Type Standard
Rate 3.33 N/mm
SKU 2935CS
Solid Length 7.87 mm
Suggested Max Deflection 5.84 mm
Suggested Max Load 19.57 N
Total Coils 13
Wire Diameter 0.56 mm
The 2935CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.022" diameter music wire, the 2935 spring design exhibits reliable strength across its 13 active coils, withstanding repeated compression cycles with a maximum load of 4.4 lbf without succumbing to fatigue.

We manufacture the 2935 design to provide a compression spring that is 0.59" long at rest and provides a consistent rate of 19 lbs/in along its recommended maximum of 0.23" deflection. For best results, your application should fully accommodate the inner (0.096") and outer (0.14") diameters of this spring and be designed for its closed end configuration.
