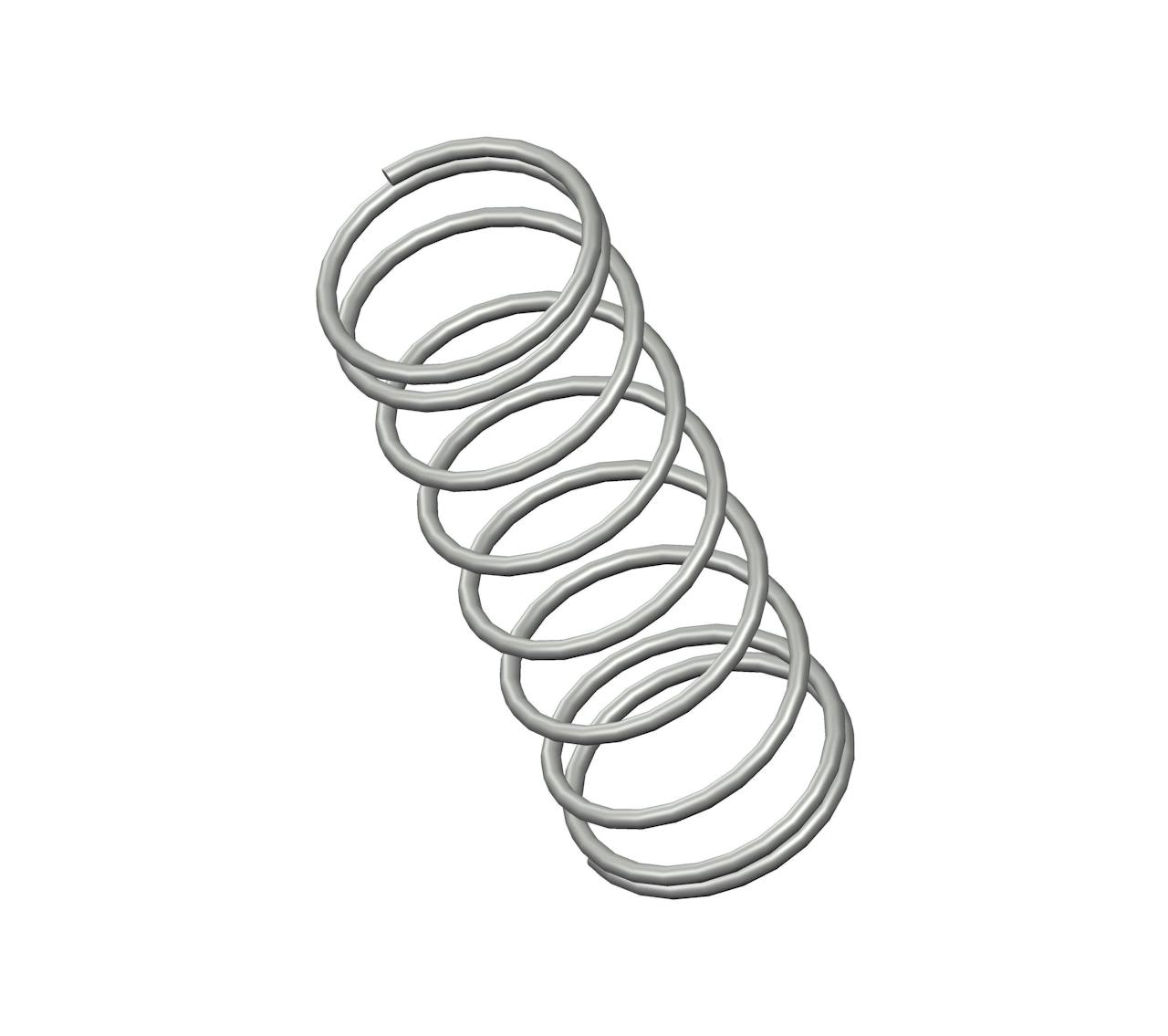

2714CS - 0.84" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 8.75 coils and closed ends. This spring features an O.D. of 0.296", and an I.D. of 0.256".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 2714
Ends Closed
Finish Zinc
Free Length 0.84 in
Inside Diameter 0.256 in
Material Spring Steel
Outside Diameter 0.296 in
Part Type Standard
Rate 1.6 lbs/in
SKU 2714CS
Solid Length 0.2 in
Suggested Max Deflection 0.65 in
Suggested Max Load 1 lbf
Total Coils 8.75
Wire Diameter 0.02 in
The 2714CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.02" diameter spring steel, the 2714 spring design exhibits reliable strength across its 8.75 active coils, withstanding repeated compression cycles with a maximum load of 1 lbf without succumbing to fatigue.

We manufacture the 2714 design to provide a compression spring that is 0.84" long at rest and provides a consistent rate of 1.6 lbs/in along its recommended maximum of 0.65" deflection. For best results, your application should fully accommodate the inner (0.256") and outer (0.296") diameters of this spring and be designed for its closed end configuration.
