Century Spring

2701CS - 5.13" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

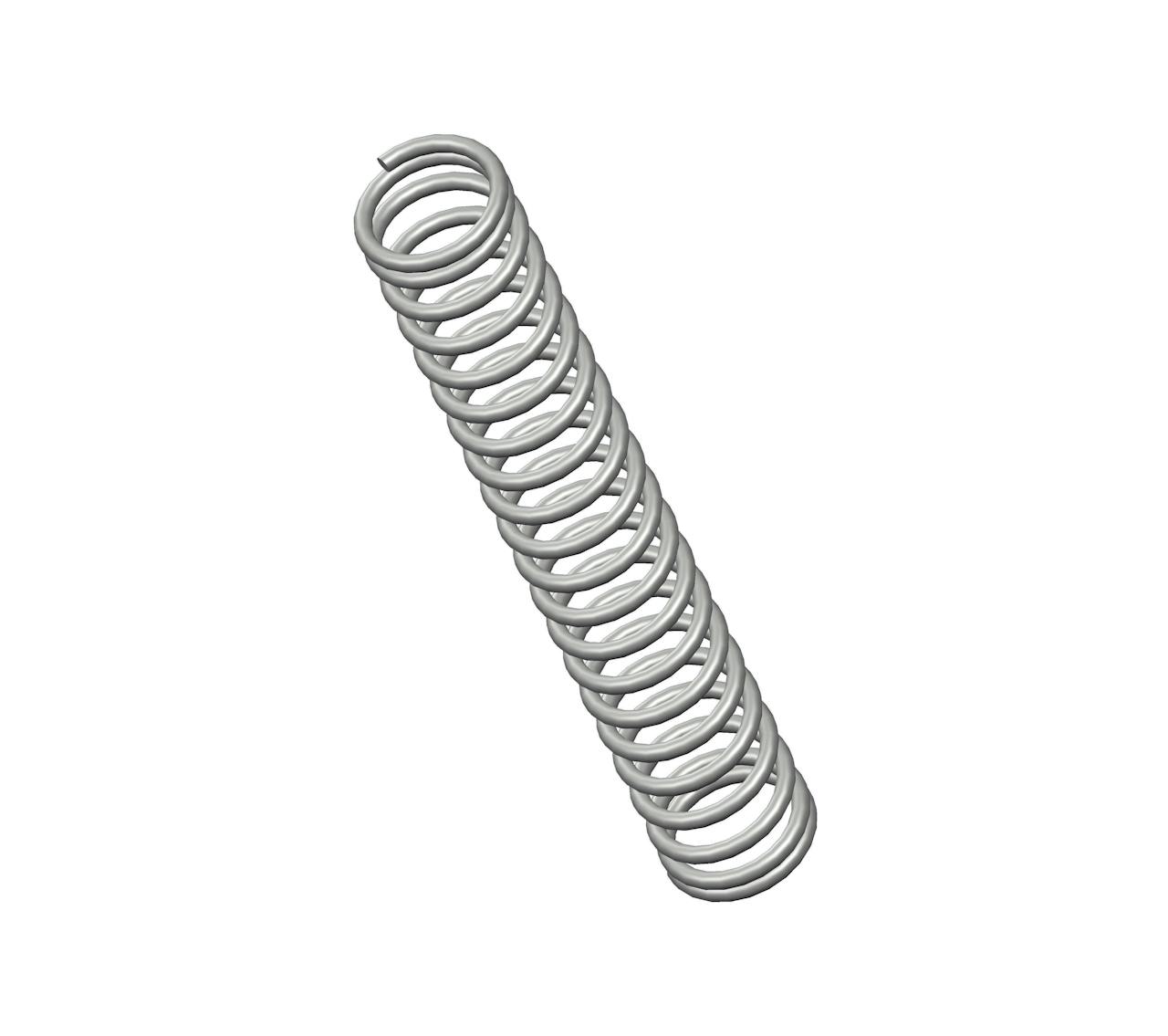

Compression spring manufactured from music wire with 20.8 coils and closed ends. This spring features an O.D. of 0.812", and an I.D. of 0.626".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 2701
Ends Closed
Finish Zinc
Free Length 5.13 in
Inside Diameter 0.626 in
Material Music Wire
Outside Diameter 0.812 in
Part Type Standard
Rate 15 lbs/in
SKU 2701CS
Solid Length 2.02 in
Suggested Max Deflection 2.9 in
Suggested Max Load 45 lbf
Total Coils 20.8
Wire Diameter 0.093 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 2701
Ends Closed
Finish Zinc
Free Length 130.3 mm
Inside Diameter 15.9 mm
Material Music Wire
Outside Diameter 20.62 mm
Part Type Standard
Rate 2.63 N/mm
SKU 2701CS
Solid Length 51.31 mm
Suggested Max Deflection 73.66 mm
Suggested Max Load 200.16 N
Total Coils 20.8
Wire Diameter 2.36 mm
The 2701 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 2701CS compression spring is designed with a free length of 0.66" total of 6.5 coils, and a rate of 45 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 2701 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
