Century Spring

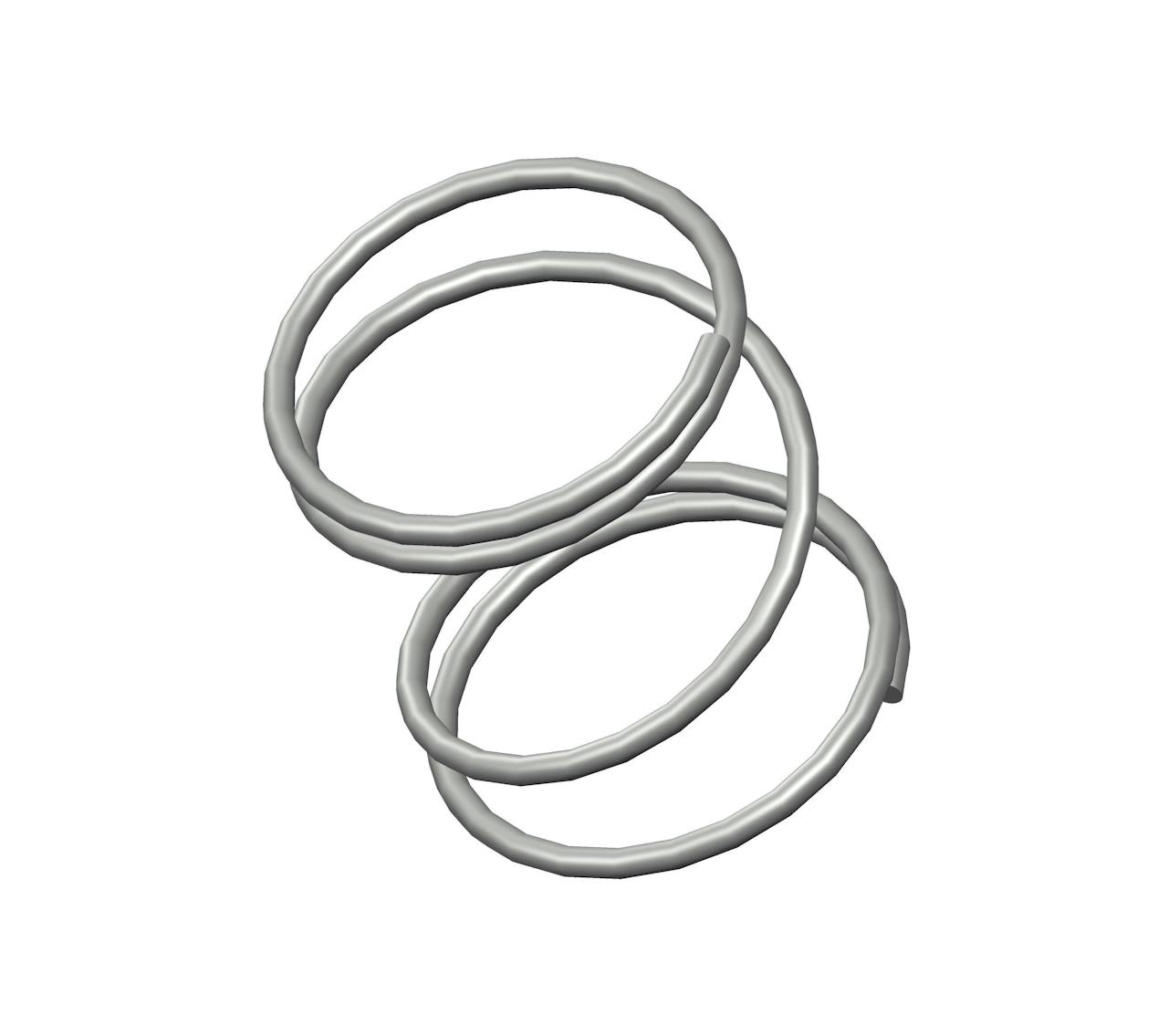

2670CS - 0.63" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 4 coils and closed ends. This spring features an O.D. of 0.531", and an I.D. of 0.465".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 2670
Ends Closed
Finish Zinc
Free Length 0.63 in
Inside Diameter 0.465 in
Material Spring Steel
Outside Diameter 0.531 in
Part Type Standard
Rate 6.9 lbs/in
SKU 2670CS
Solid Length 0.17 in
Suggested Max Deflection 0.4 in
Suggested Max Load 2.8 lbf
Total Coils 4
Wire Diameter 0.033 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 2670
Ends Closed
Finish Zinc
Free Length 16 mm
Inside Diameter 11.81 mm
Material Spring Steel
Outside Diameter 13.49 mm
Part Type Standard
Rate 1.21 N/mm
SKU 2670CS
Solid Length 4.32 mm
Suggested Max Deflection 10.16 mm
Suggested Max Load 12.45 N
Total Coils 4
Wire Diameter 0.84 mm
The 2670 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 2670CS compression spring is designed with a free length of 1.13" total of 5.33 coils, and a rate of 688 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 2670 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
