Century Spring

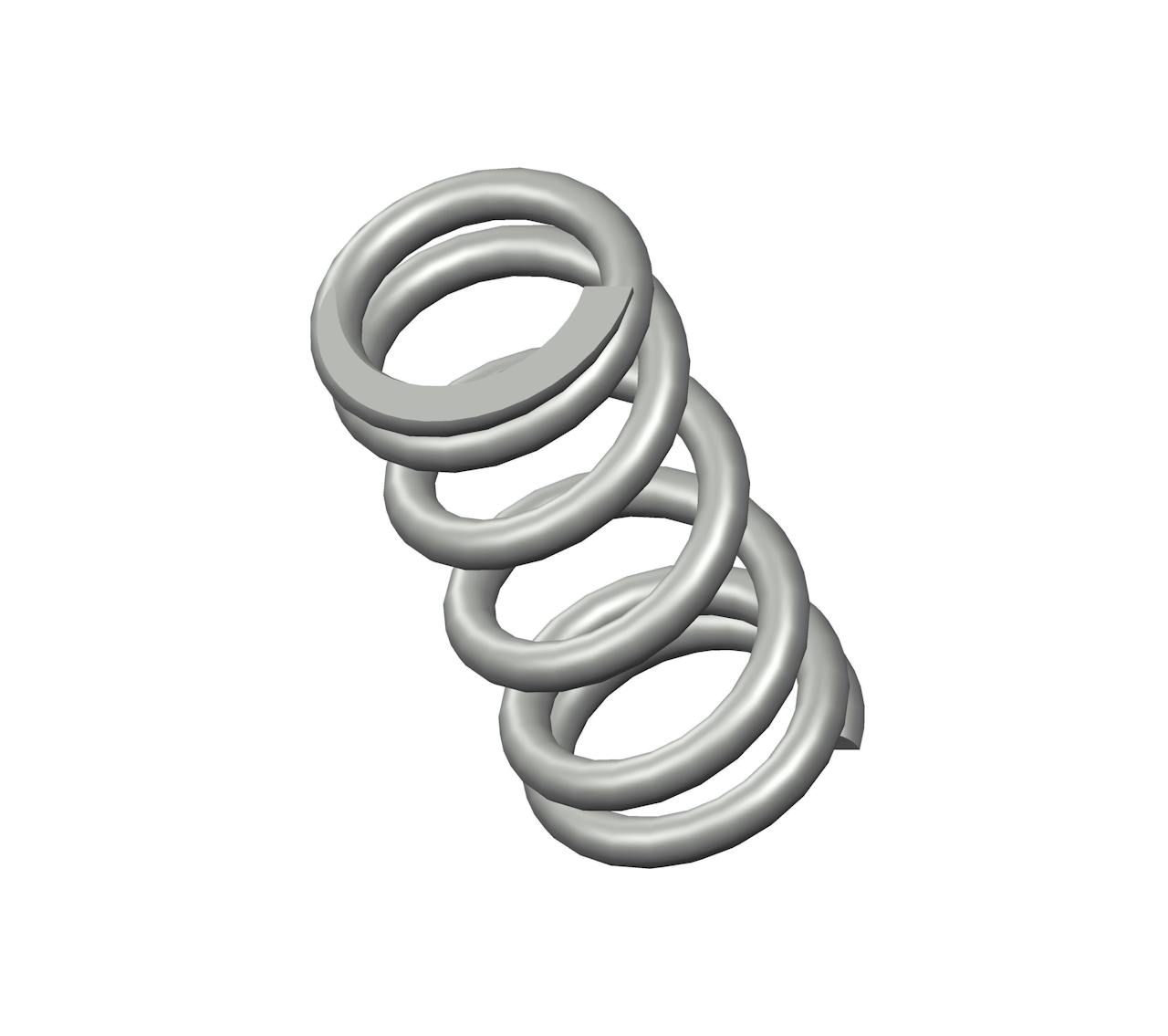

2611CS - 0.53" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 6 coils and closed & ground ends. This spring features an O.D. of 0.25", and an I.D. of 0.176".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 2611
Ends Closed & Ground
Finish Zinc
Free Length 0.53 in
Inside Diameter 0.176 in
Material Music Wire
Outside Diameter 0.25 in
Part Type Standard
Rate 70 lbs/in
SKU 2611CS
Solid Length 0.22 in
Suggested Max Deflection 0.15 in
Suggested Max Load 10 lbf
Total Coils 6
Wire Diameter 0.037 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 2611
Ends Closed & Ground
Finish Zinc
Free Length 13.46 mm
Inside Diameter 4.47 mm
Material Music Wire
Outside Diameter 6.35 mm
Part Type Standard
Rate 12.26 N/mm
SKU 2611CS
Solid Length 5.59 mm
Suggested Max Deflection 3.81 mm
Suggested Max Load 44.48 N
Total Coils 6
Wire Diameter 0.94 mm
The 2611CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.037" diameter music wire, the 2611 spring design exhibits reliable strength across its 6 active coils, withstanding repeated compression cycles with a maximum load of 10 lbf without succumbing to fatigue.

We manufacture the 2611 design to provide a compression spring that is 0.53" long at rest and provides a consistent rate of 70 lbs/in along its recommended maximum of 0.15" deflection. For best results, your application should fully accommodate the inner (0.176") and outer (0.25") diameters of this spring and be designed for its closed & ground end configuration.
