Century Spring

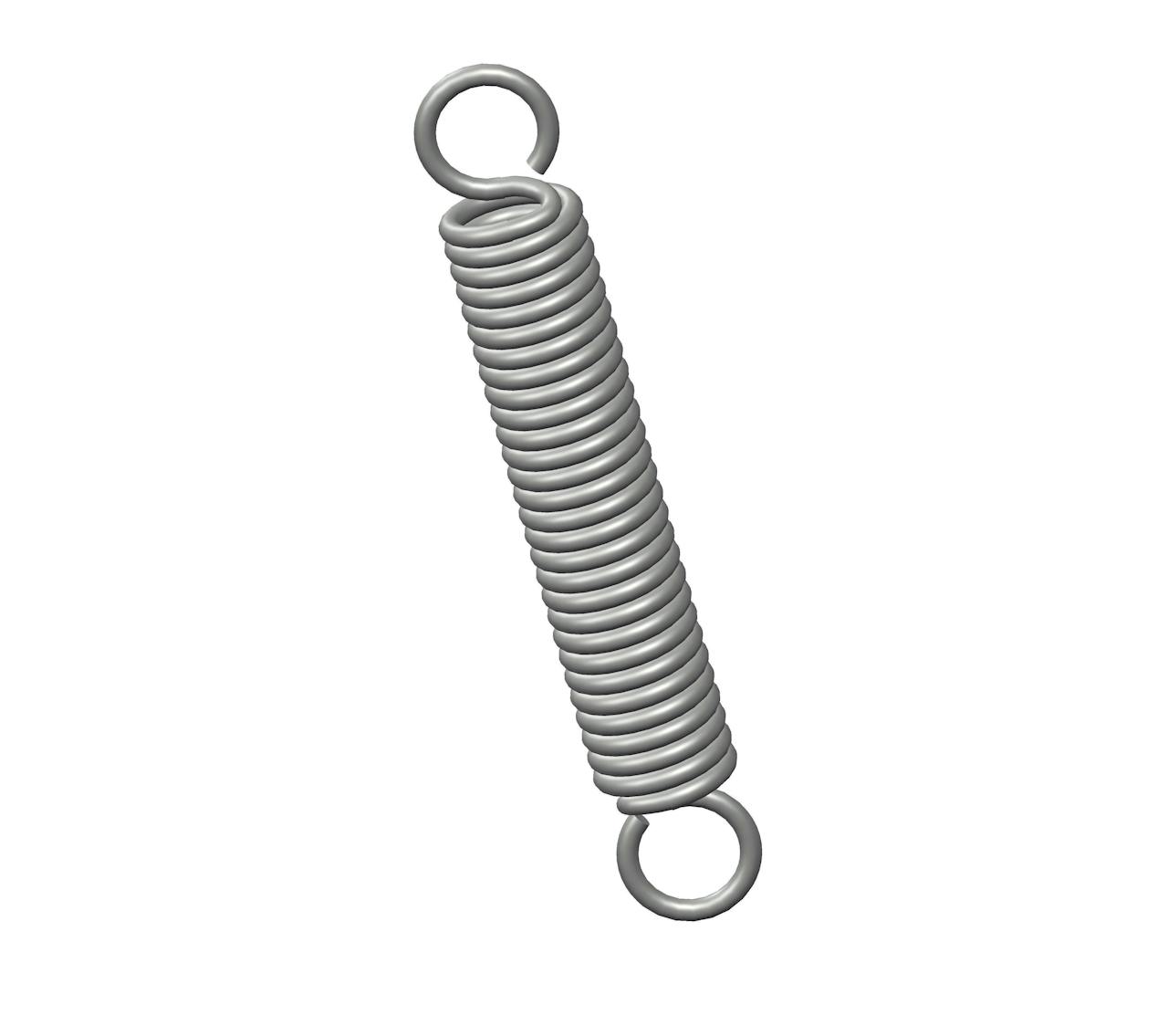

232CS - 4.25 Inch High Carbon Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in High Carbon Steel. This spring features an O.D. of 0.687 Inch and an initial tension of 14 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 232
Ends Machine Hook
Finish Zinc
Initial Tension 14 lb
Length 4.25 in
Material High Carbon Steel
Outside Diameter 0.687 in
Part Type Standard
Rate 26 lbs/in
SKU 232CS
Sugg Max Deflection 1.5 in
Sugg Max Load 55 lbf
Wind Direction Left
Wire Diameter 0.105 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 232
Ends Machine Hook
Finish Zinc
Initial Tension 6.35 kg
Length 107.95 mm
Material High Carbon Steel
Outside Diameter 17.45 mm
Part Type Standard
Rate 4.55 N/mm
SKU 232CS
Sugg Max Deflection 38.1 mm
Sugg Max Load 244.64 N
Wind Direction Left
Wire Diameter 2.67 mm
