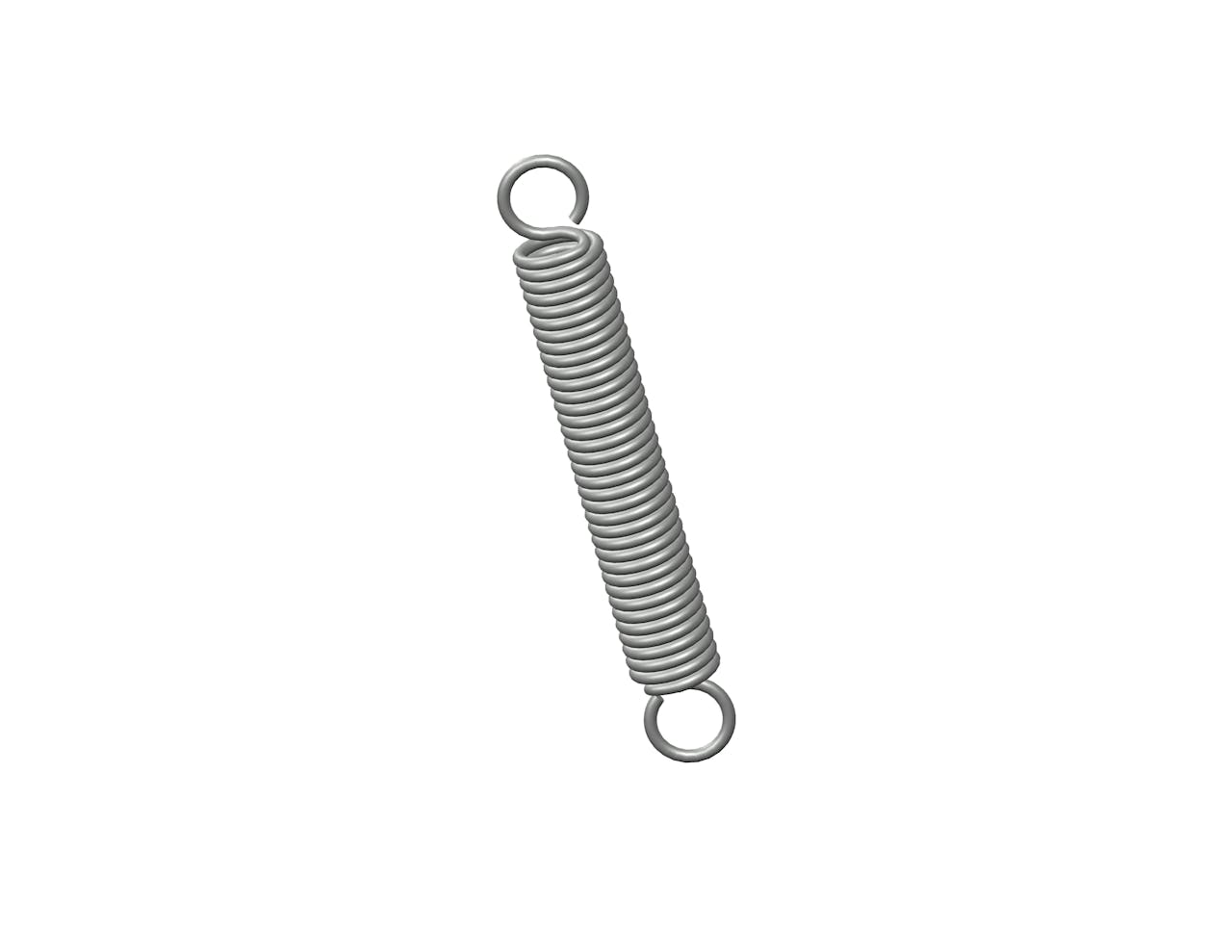

224CS - 3.5 Inch High Carbon Steel Extension Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Regular extension spring in High Carbon Steel. This spring features an O.D. of 0.5 Inch and an initial tension of 6 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 224 |
| Ends | Full Loop |
| Finish | Zinc |
| Initial Tension | 6 lb |
| Length | 3.5 in |
| Material | High Carbon Steel |
| Outside Diameter | 0.5 in |
| Part Type | Standard |
| Rate | 12 lbs/in |
| SKU | 224CS |
| Sugg Max Deflection | 1.6 in |
| Sugg Max Load | 25 lbf |
| Wire Diameter | 0.072 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 224 |
| Ends | Full Loop |
| Finish | Zinc |
| Initial Tension | 2.72 kg |
| Length | 88.9 mm |
| Material | High Carbon Steel |
| Outside Diameter | 12.7 mm |
| Part Type | Standard |
| Rate | 2.1 N/mm |
| SKU | 224CS |
| Sugg Max Deflection | 40.64 mm |
| Sugg Max Load | 111.2 N |
| Wire Diameter | 1.83 mm |
